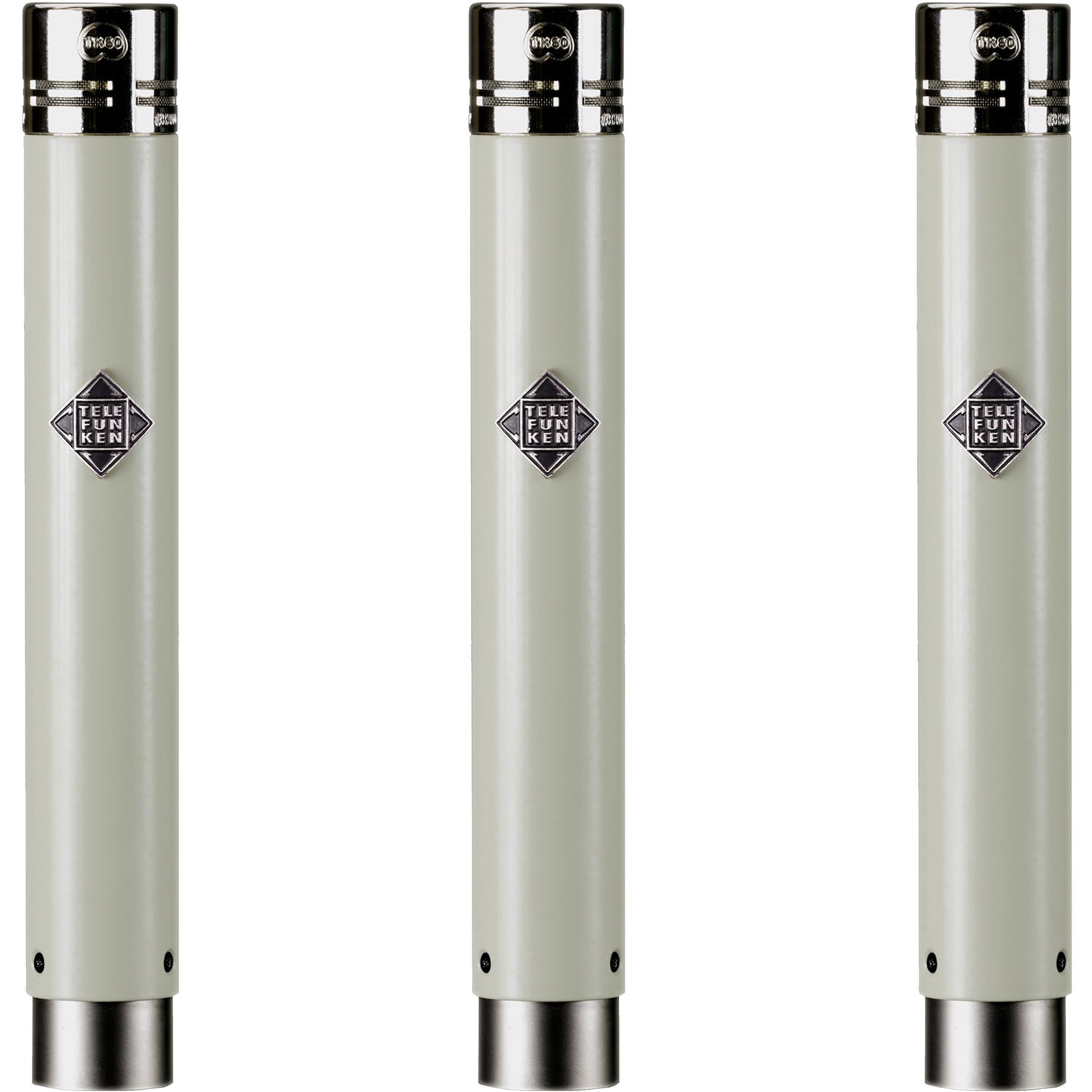

Telefunken ELA M 260 TRI-MONO Set Small Diaphragm Tube Condenser Microphones

Telefunken ELA M 260 TRI-MONO Set Small Diaphragm Tube Condenser Microphones

On order with the manufacturer!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

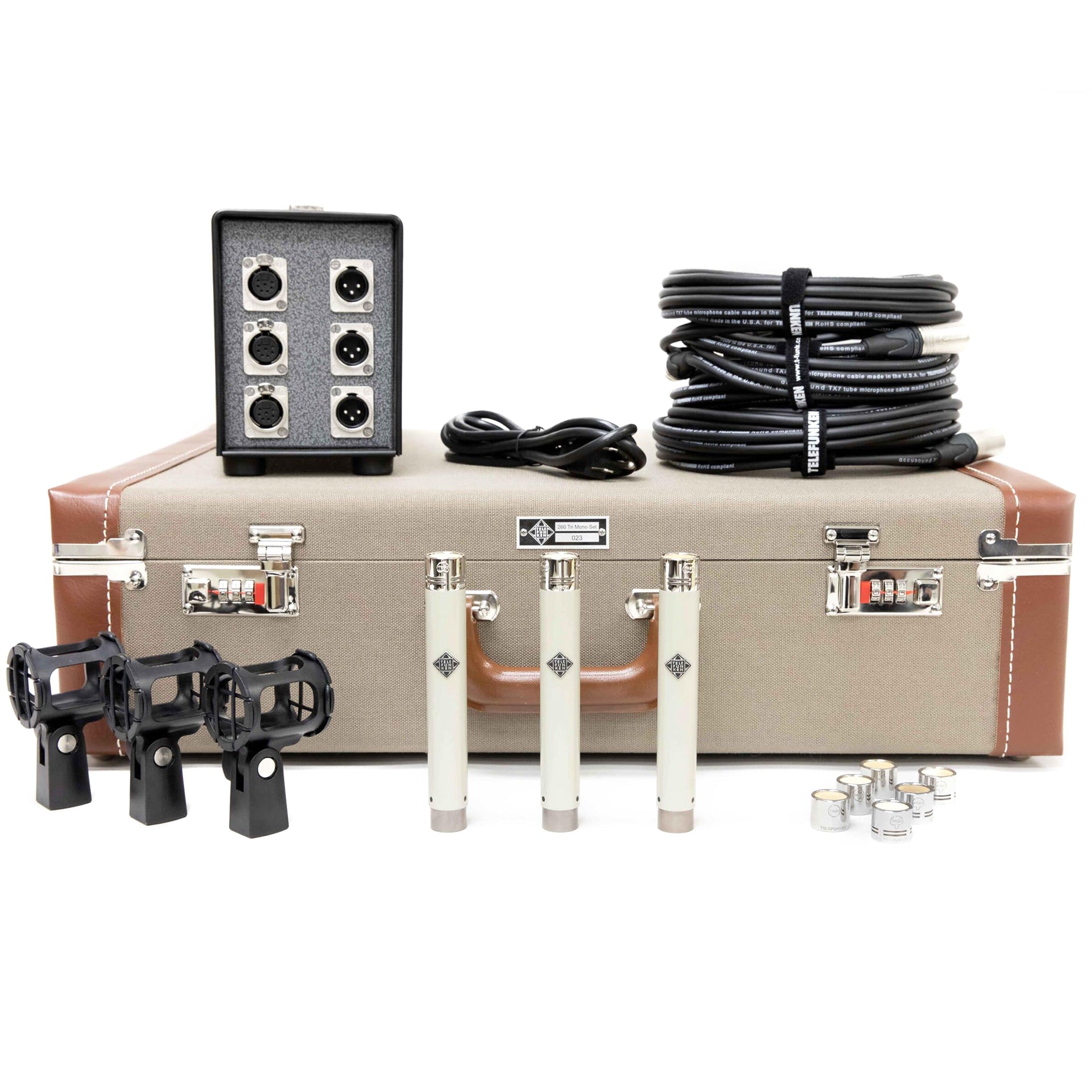

A Tri-Mono package for the ELA M 260 system consists of three ELA M 260 microphones, a 3-channel power supply capable of powering all three microphones, three elastic shock mounts, and a set of three 10-meter AccuSound TX-7 tube mic cables with right angle XLR connectors. In order to foster an element of creativity, all three capsule systems (TK60 cardioid, TK61 omnidirectional, and TK62 hypercardioid) are included in the package, along with a set of diffuse field spheres.

Engineers who recorded classical music for Decca Records pioneered the Decca Tree microphone placement technique in the early 1950s when they wanted a strong sense of stereo image and balanced coverage of an orchestra, as the conductor might have heard while he led the orchestra.

The technique features three omnidirectional microphones placed in a reverse "T" configuration, roughly above the head of the conductor. The "left" and "right" are positioned behind the conductor while the "center" microphone hangs in front of the conductor.

In addition to orchestral recording applications, the Decca Tree configuration can be an invaluable component to more contemporary recordings for drum applications and to gain an overall "band in a room" kind of atmosphere to your recording process.

More Information
Product Name Telefunken ELA M 260 TRI-MONO Set Small Diaphragm Tube Condenser Microphones
Brand Telefunken
Condition New
MPN ELAM260-TM
UPC 899051002077
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

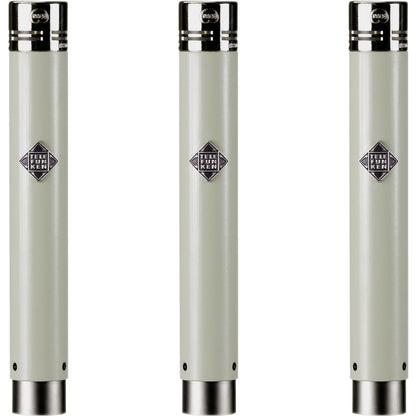

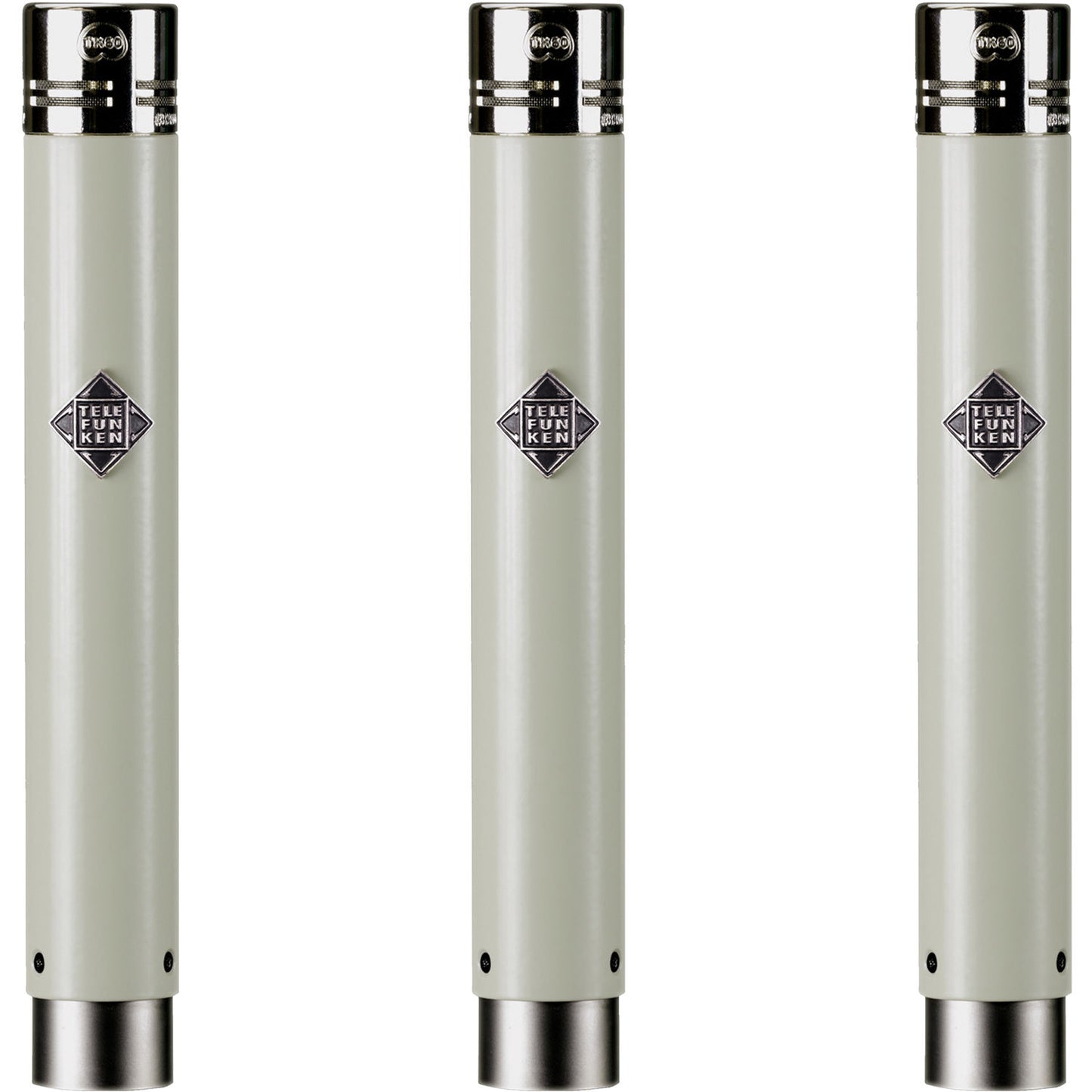

  • 3x M 260 Tube Microphones

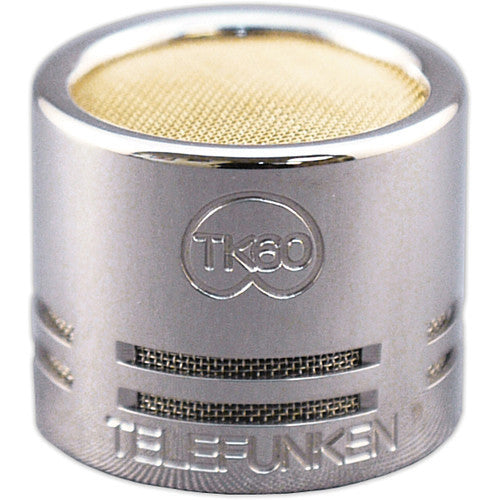

  • 3x TK60 Cardioid Capsules

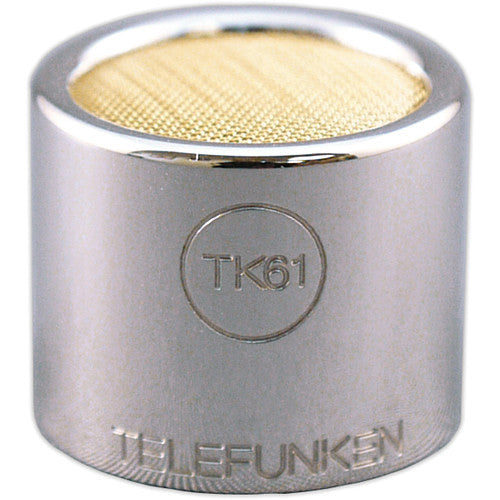

  • 3x TK61 Omni Capsules

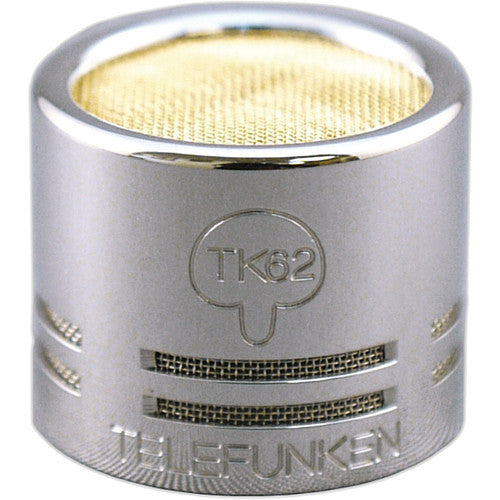

  • 3x TK62 Hypercardioid Capsules

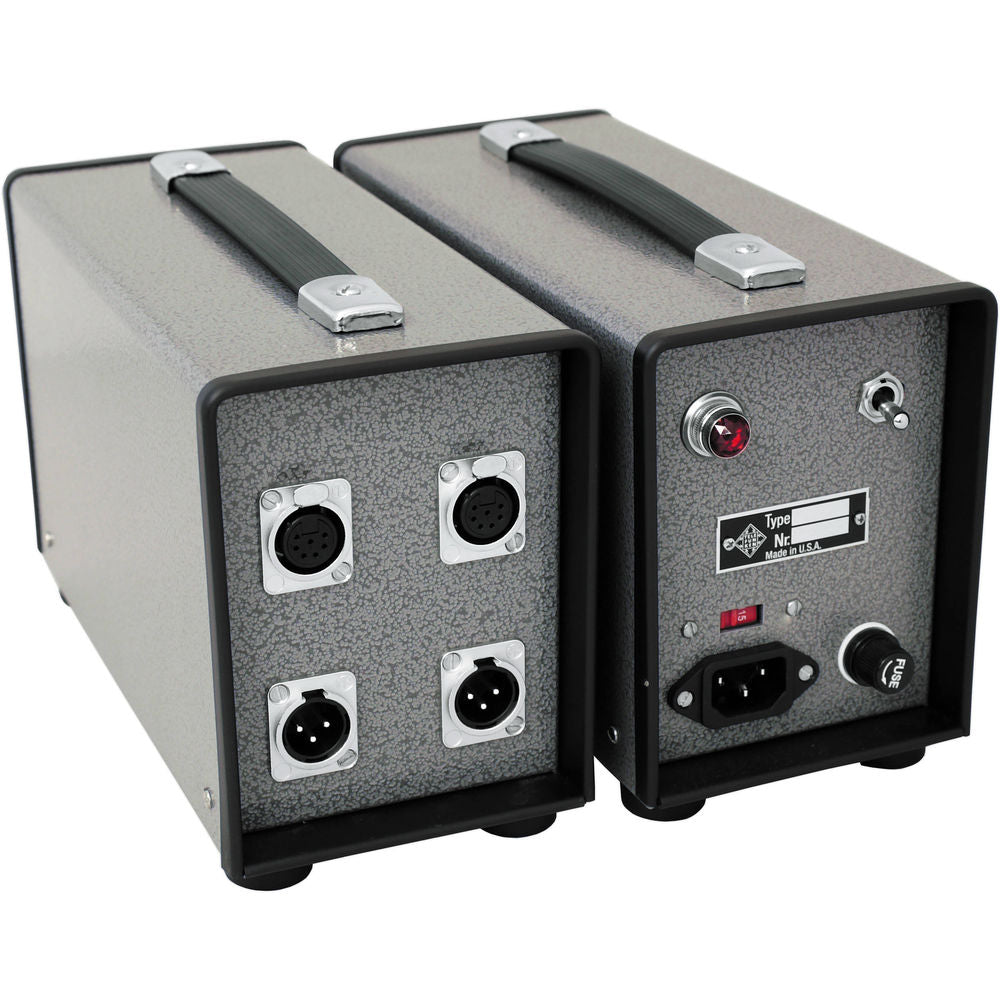

  • M 963 Power Supply
  • 3x M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m
  • 3x M 761 Elastic Shock Mounts
  • 3x WS20 20mm Foam Windscreen
  • 3x SD40 40mm Diffusion Spheres

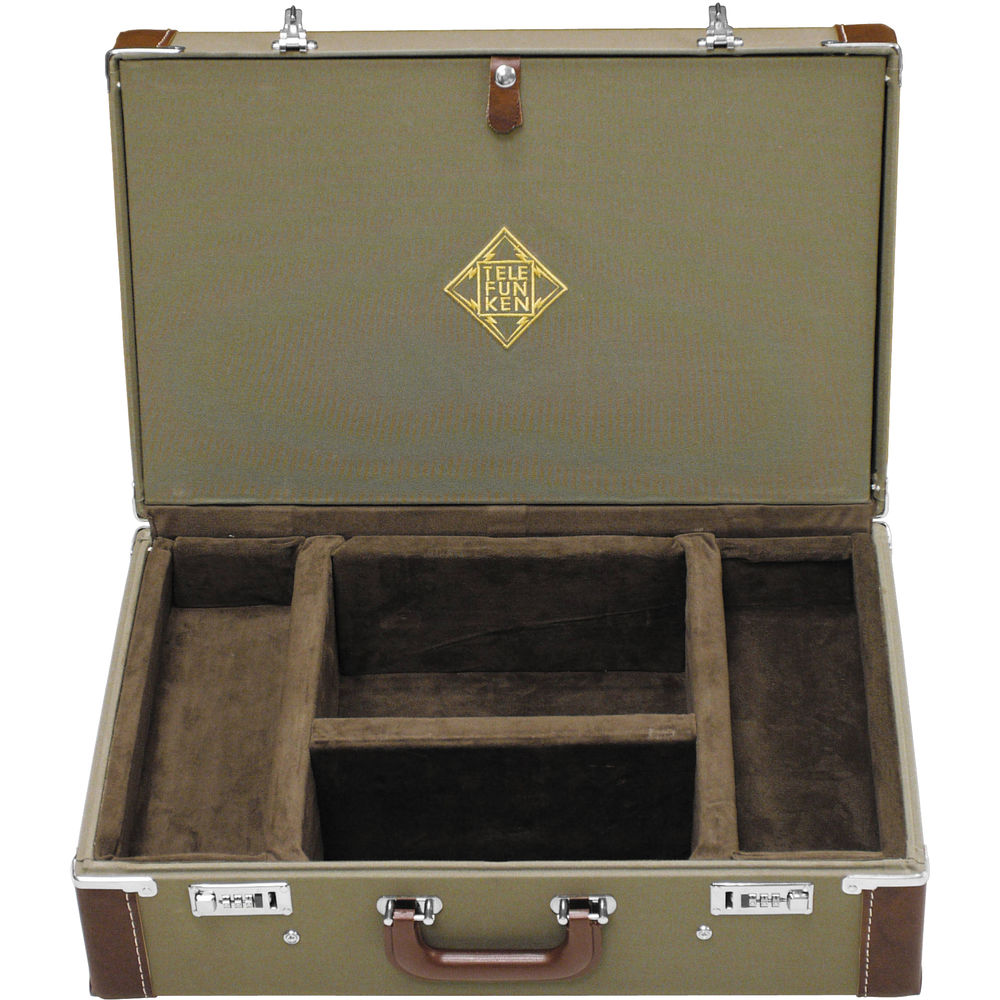

  • FC63 Locking Flight Case
  • A brilliant combination of tube warmth and small-diaphragm precision
  • Flattering tone and open top end complements most acoustic instruments
  • Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
  • Vintage-inspired 5840W vacuum tube-based amplifier
  • Designed and hand assembled in the USA
  • Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads
Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional, Hypercardioid
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
Tube NOS Philips 5840W
Transformer TELEFUNKEN Elektroakustik T60
Sensitivity 16.5 mV/Pa, ±1 dB
THD at 1 kHz at 1 Pa (Amplifier) < 0.15%
Output Impedance 200 Ω
Maximum SPL (for 1% THD) 135 dB
S/N Ratio 83 dBA
Self Noise (Amplifier) 11 dBA
Dimensions 140 mm L x 20 mm Dia
Weight 116 g
Included Accessories Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case

Telefunken ELA M 260 TRI-MONO Set Small Diaphragm Tube Condenser Microphones

Details

A Tri-Mono package for the ELA M 260 system consists of three ELA M 260 microphones, a 3-channel power supply capable of powering all three microphones, three elastic shock mounts, and a set of three 10-meter AccuSound TX-7 tube mic cables with right angle XLR connectors. In order to foster an element of creativity, all three capsule systems (TK60 cardioid, TK61 omnidirectional, and TK62 hypercardioid) are included in the package, along with a set of diffuse field spheres.

Engineers who recorded classical music for Decca Records pioneered the Decca Tree microphone placement technique in the early 1950s when they wanted a strong sense of stereo image and balanced coverage of an orchestra, as the conductor might have heard while he led the orchestra.

The technique features three omnidirectional microphones placed in a reverse "T" configuration, roughly above the head of the conductor. The "left" and "right" are positioned behind the conductor while the "center" microphone hangs in front of the conductor.

In addition to orchestral recording applications, the Decca Tree configuration can be an invaluable component to more contemporary recordings for drum applications and to gain an overall "band in a room" kind of atmosphere to your recording process.

More Information
Product Name Telefunken ELA M 260 TRI-MONO Set Small Diaphragm Tube Condenser Microphones
Brand Telefunken
Condition New
MPN ELAM260-TM
UPC 899051002077
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • 3x M 260 Tube Microphones
  • 3x TK60 Cardioid Capsules
  • 3x TK61 Omni Capsules
  • 3x TK62 Hypercardioid Capsules
  • M 963 Power Supply
  • 3x M 860 Right Angle 7-Pin XLR Tube Microphone Cable – 7m
  • 3x M 761 Elastic Shock Mounts
  • 3x WS20 20mm Foam Windscreen
  • 3x SD40 40mm Diffusion Spheres
  • FC63 Locking Flight Case
Features
  • A brilliant combination of tube warmth and small-diaphragm precision
  • Flattering tone and open top end complements most acoustic instruments
  • Thread-on TK6x Series capsules provide Cardioid, Hypercardioid, and Omni polar patterns
  • Vintage-inspired 5840W vacuum tube-based amplifier
  • Designed and hand assembled in the USA
  • Recommended Applications: Acoustic Guitar, Violin, Mandolin, Drum Overheads
Tech Specs
Type Vacuum Tube Condenser
Polar Pattern Cardioid, Omnidirectional, Hypercardioid
Frequency Range 20 Hz – 20 kHz, ±3 dB
Power Source External Power Supply
Capsule TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on
Tube NOS Philips 5840W
Transformer TELEFUNKEN Elektroakustik T60
Sensitivity 16.5 mV/Pa, ±1 dB
THD at 1 kHz at 1 Pa (Amplifier) < 0.15%
Output Impedance 200 Ω
Maximum SPL (for 1% THD) 135 dB
S/N Ratio 83 dBA
Self Noise (Amplifier) 11 dBA
Dimensions 140 mm L x 20 mm Dia
Weight 116 g
Included Accessories Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case
