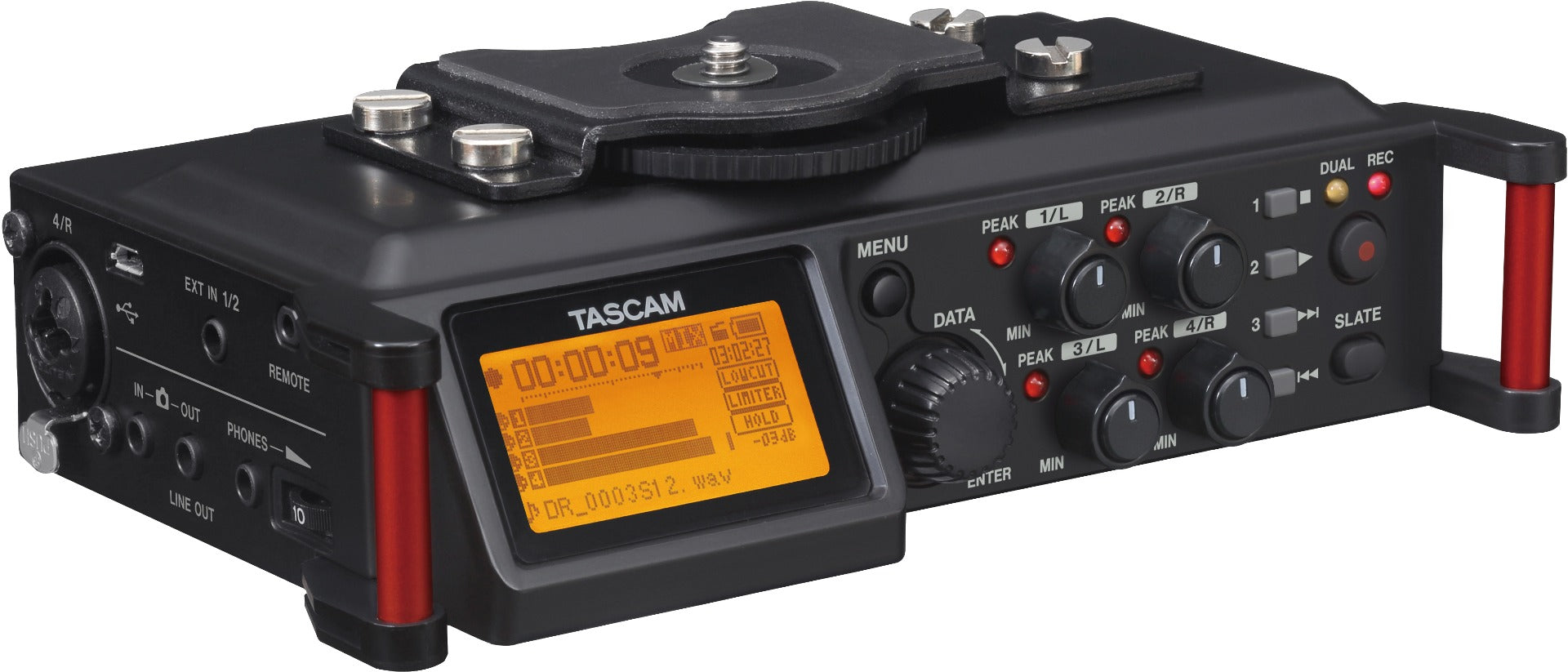

The DR-70D from TASCAM is the ultimate audio recording solution for filmmakers. Four balanced XLR mic inputs meet the requirements of production sound, from professional users to indie DSLR shooters. The compact format can be mounted either above or below a camera, and a pair of built-in microphones can capture sound on-set. The interface is designed for quick adjustment, with additional features to keep recording levels under control.

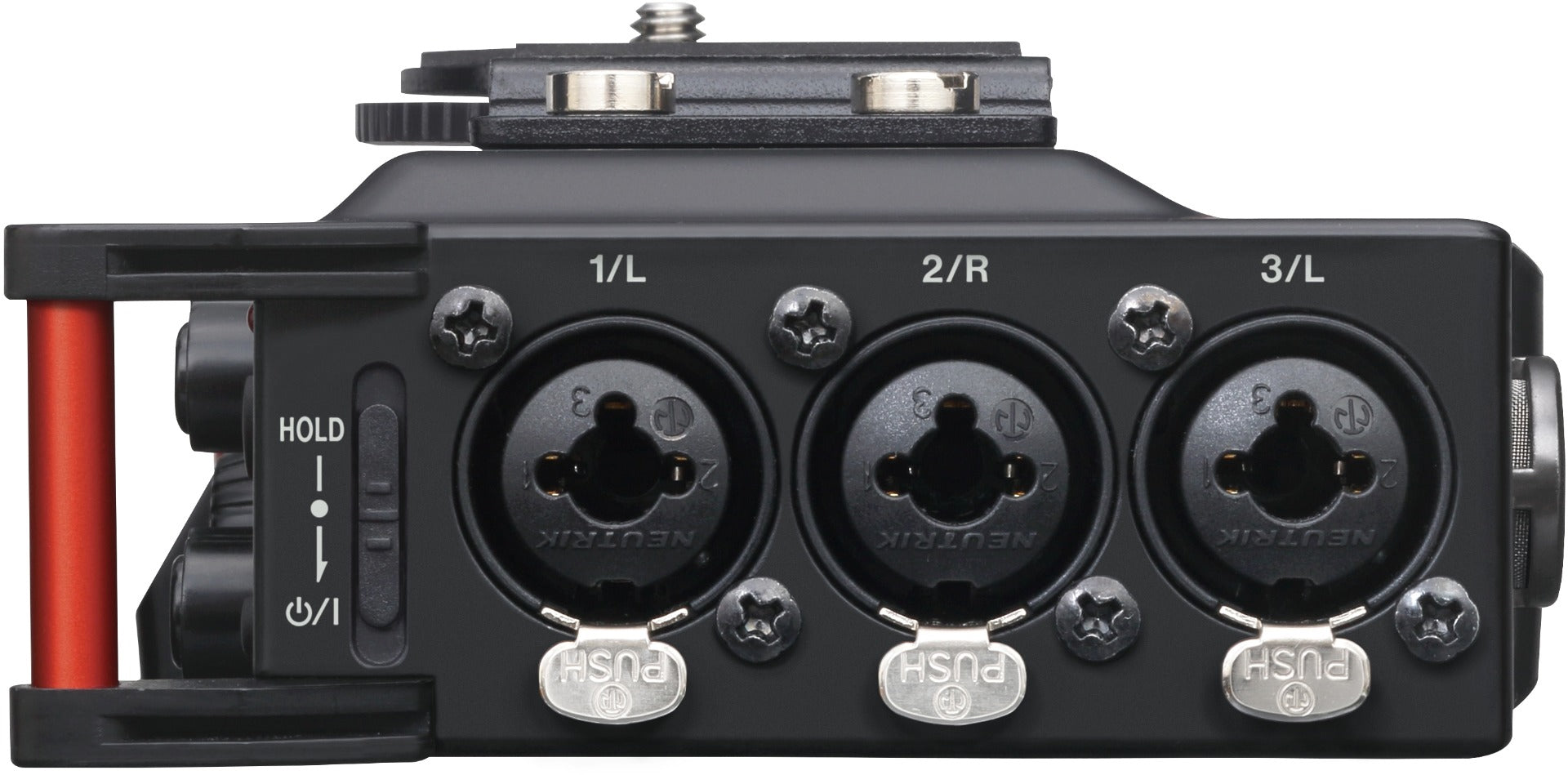

Four XLR mic inputs with phantom power are included on the DR-70D, enough to cover busy scenes. The High-Quality HDDA(High Definition Discrete Architecture) Mic Preamps include 64dB of gain for quiet performances, and all four inputs have individual gain controls. Each input has a limiter and low cut filter available for controlling volume. Also included is Dual Recording mode, which records a safety copy of your audio at a lower level to prevent distorted takes. Quality components like 5532 op amps are used throughout for the clearest audio possible.

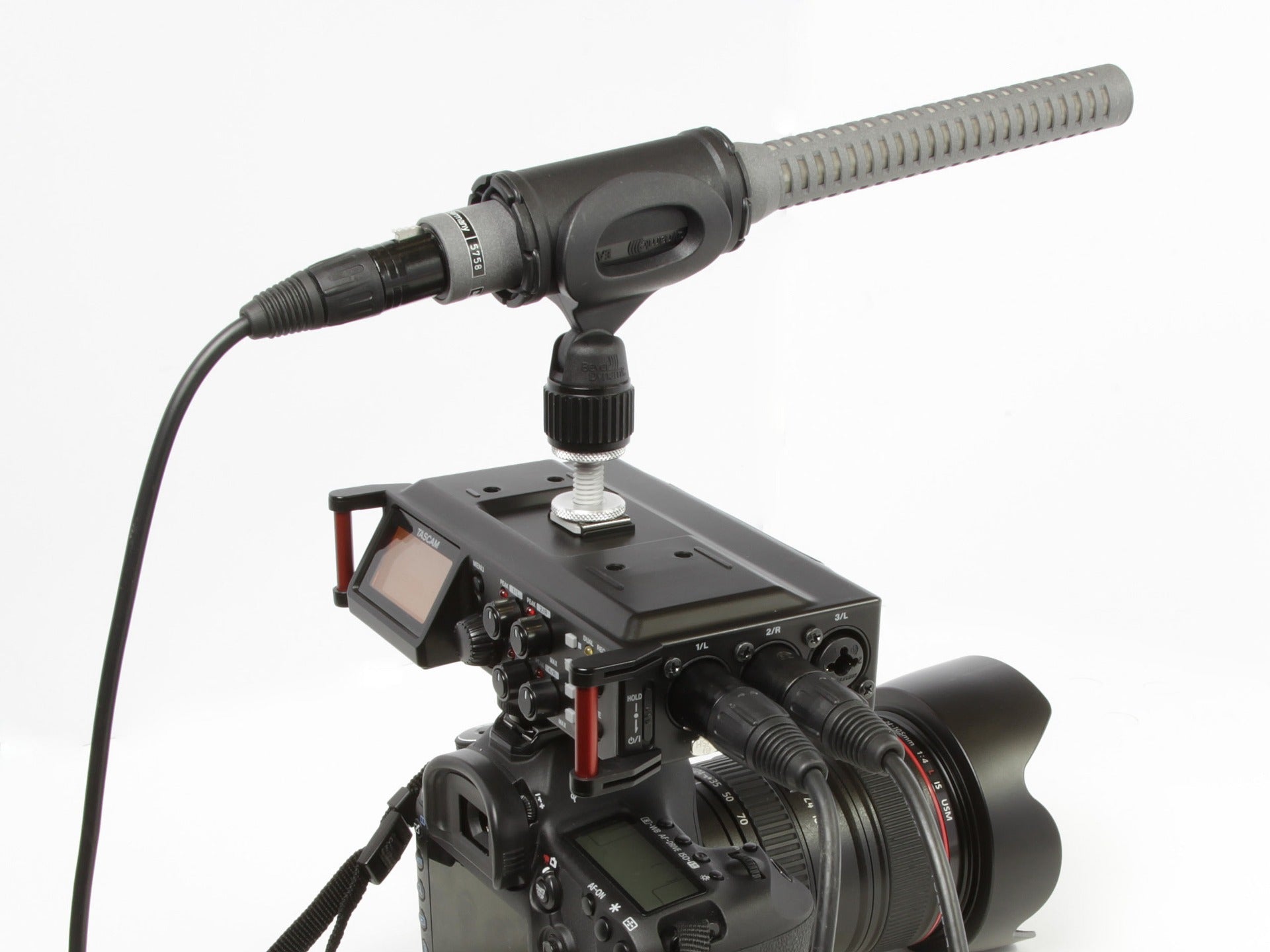

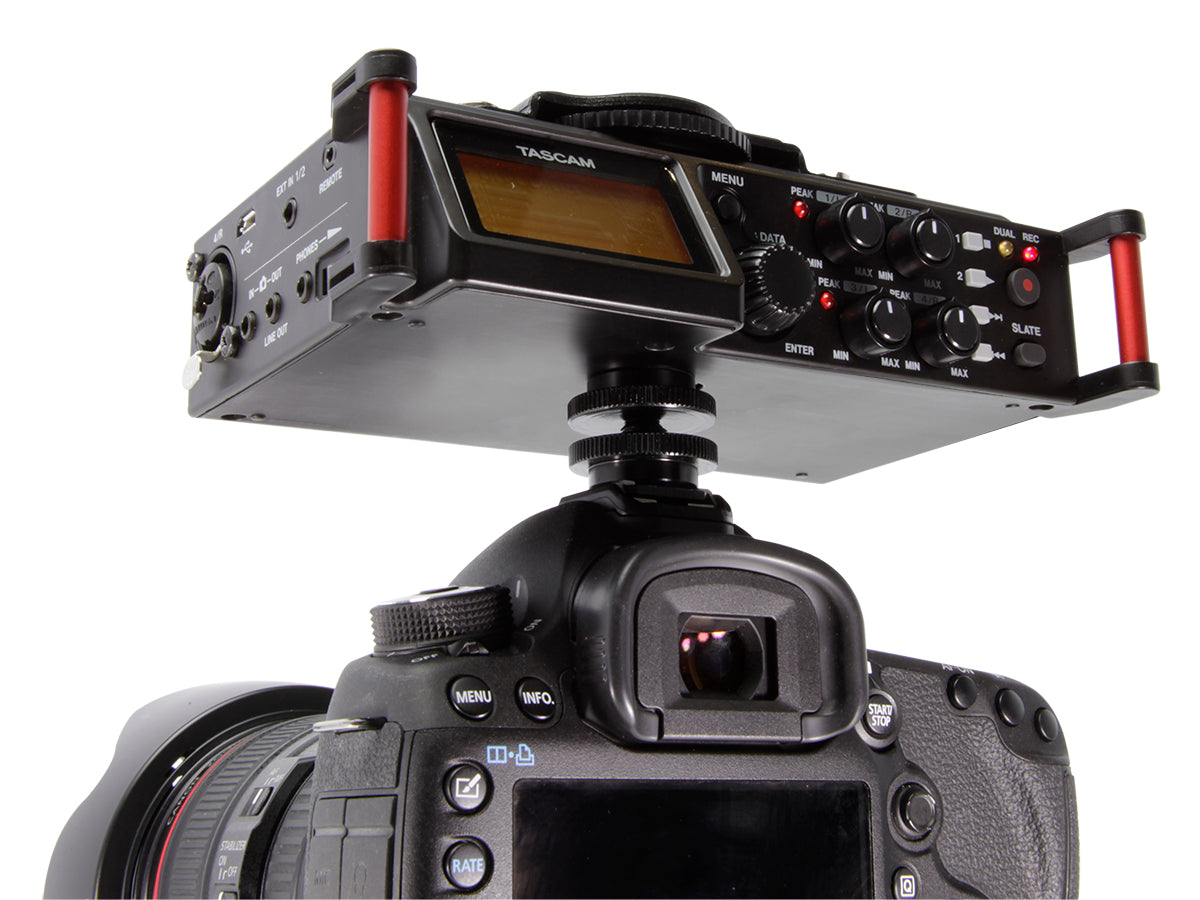

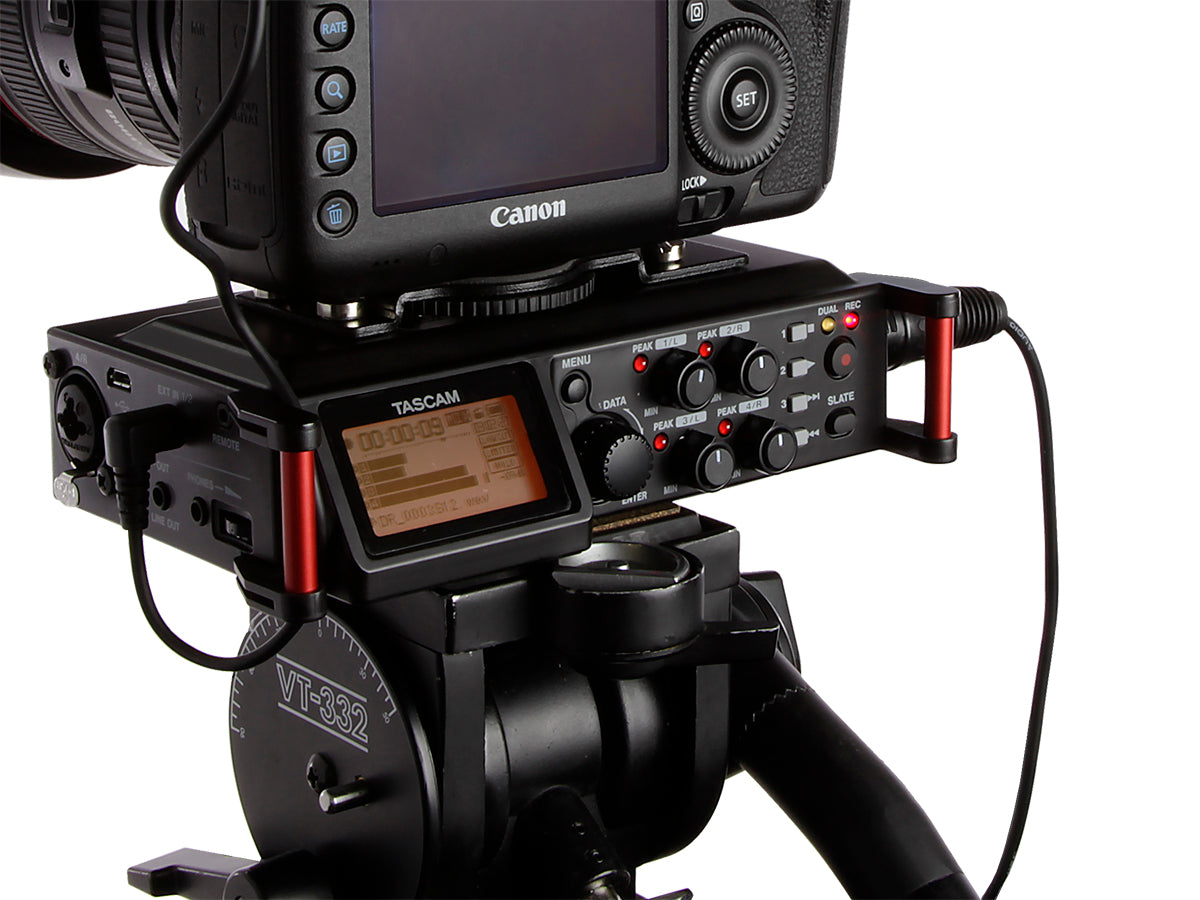

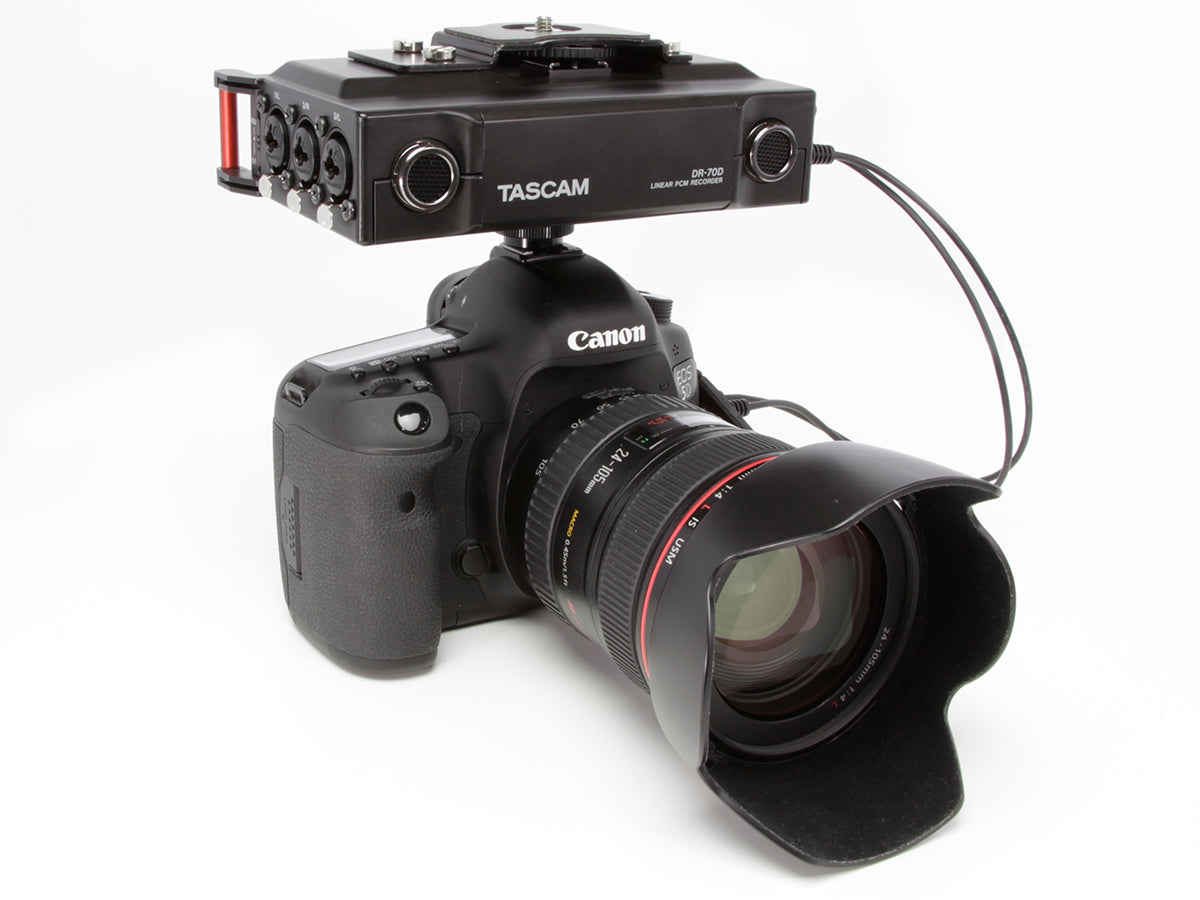

Tracks on the DR-70D are captured to SD card, SDHC or SDXC media – up to 128GB cards are supported. The recorder has tripod mounts on the top and bottom of the unit, allowing it to be mounted on a camera, a follow-focus cage, or used standalone. Other production friendly features include a slate tone, low-noise buttons, a powerful headphone output, and standard AA battery power.
Uniquely designed for the needs of filmmakers, television producers, advertisers, and documentarians, the DR-70D packs multitrack recording into a package compact enough to use with any camera.

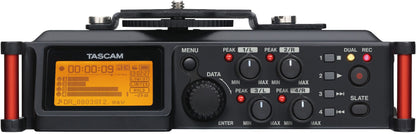

- Angled 128 x 64 pixel graphic LCD with backlight for easy viewing
- Simple, efficient file transfer via USB 2.0 connection to a computer
- Adjustable delay function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
- Hold switch prevents accidental operation
- MS decoding function allows proper stereo monitoring of a mid-side mic configuration
- Automatically creates a new file when the maximum file size is reached
- Resume function retains the last stop point even when the DR-70D is powered off/on
- Track incrementing function allows a recording to be split by creating a new file when desired
- File name format can be set to use a user-defined word or the date
- The first six characters of the file name for recording can be set freely
| Product Name | Tascam DR-70D Multi-Track Field Recorder |
|---|---|
| Brand | Tascam |
| Condition | New |
| MPN | DR-70D |
| UPC | 043774031139 |
| Shipping Option | Free Shipping on orders over $94.72 |
- Angled 128 x 64 pixel graphic LCD with backlight for easy viewing
- Simple, efficient file transfer via USB 2.0 connection to a computer
- Adjustable delay function eliminates time lags caused by differences in the distances of two sets of inputs from the sound source
- Hold switch prevents accidental operation
- MS decoding function allows proper stereo monitoring of a mid-side mic configuration
- Automatically creates a new file when the maximum file size is reached
- Resume function retains the last stop point even when the DR-70D is powered off/on
- Track incrementing function allows a recording to be split by creating a new file when desired
- File name format can be set to use a user-defined word or the date
- The first six characters of the file name for recording can be set freely
Portable Recorder
| Number of Tracks | 4 |
| Max Sample Rate/Resolution | 96 kHz / 24-Bit |

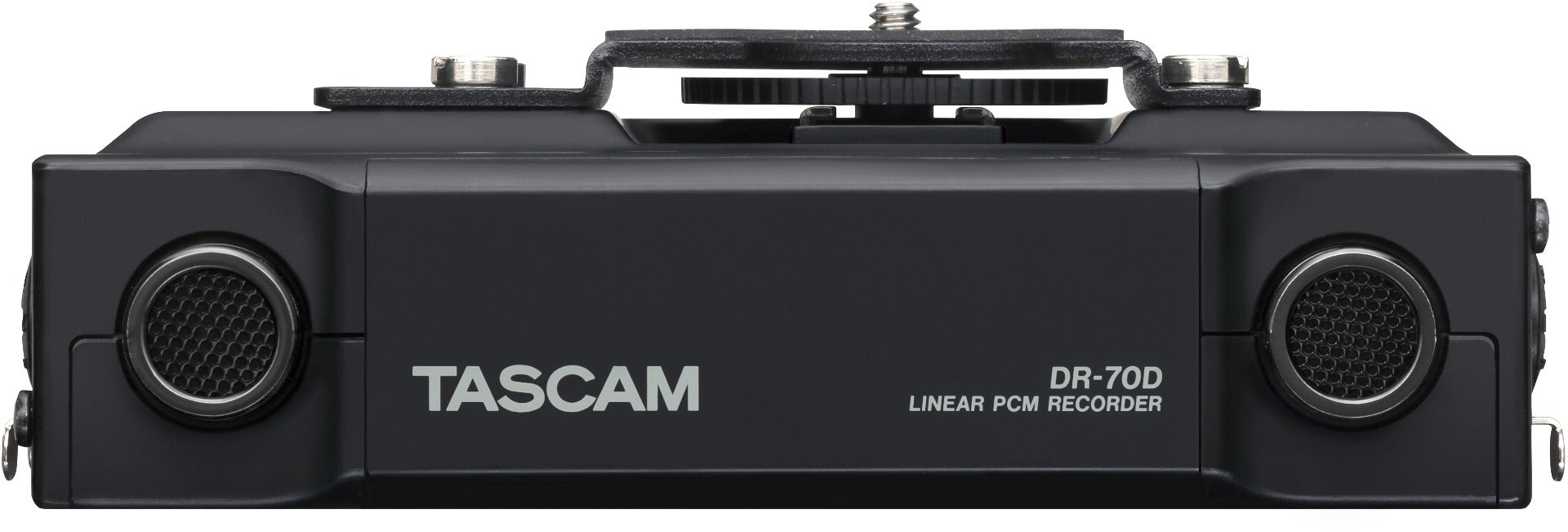

| Microphone | Built-In Omnidirectional Electret Condenser Stereo Pair, A/B Configuration |
| Built-In Speaker | No |
| Display | Monochrome LCD (Backlit) |
| Memory Card Support | SD (64 MB to 2 GB) SDHC (4 GB to 32 GB) SDXC (48 GB to 128 GB) |
| Internal Storage | None |
Recording
| Audio File Formats | BWF, WAV |
| Sample Rates | WAV: 44.1 / 48 / 96 kHz |
| Bit Depth | 16 / 24-Bit |
| Signal Processing | Delay, Limiter, Low-Cut Filter |
| Timecode | No |
| Recording Time | WAV 44.1 kHz/16-Bit: 1 Hr 41 Mins per GB (Stereo) WAV 48 kHz/16-Bit: 1 Hr 33 Mins per GB (Stereo) WAV 96 kHz/16-Bit: 46 Mins per GB (Stereo) WAV 44.1 kHz/24-Bit: 1 Hr 7 Mins per GB (Stereo) WAV 48 kHz/24-Bit: 1 Hr 2 Mins per GB (Stereo) WAV 96 kHz/24-Bit: 31 Mins per GB (Stereo) |
Connectivity

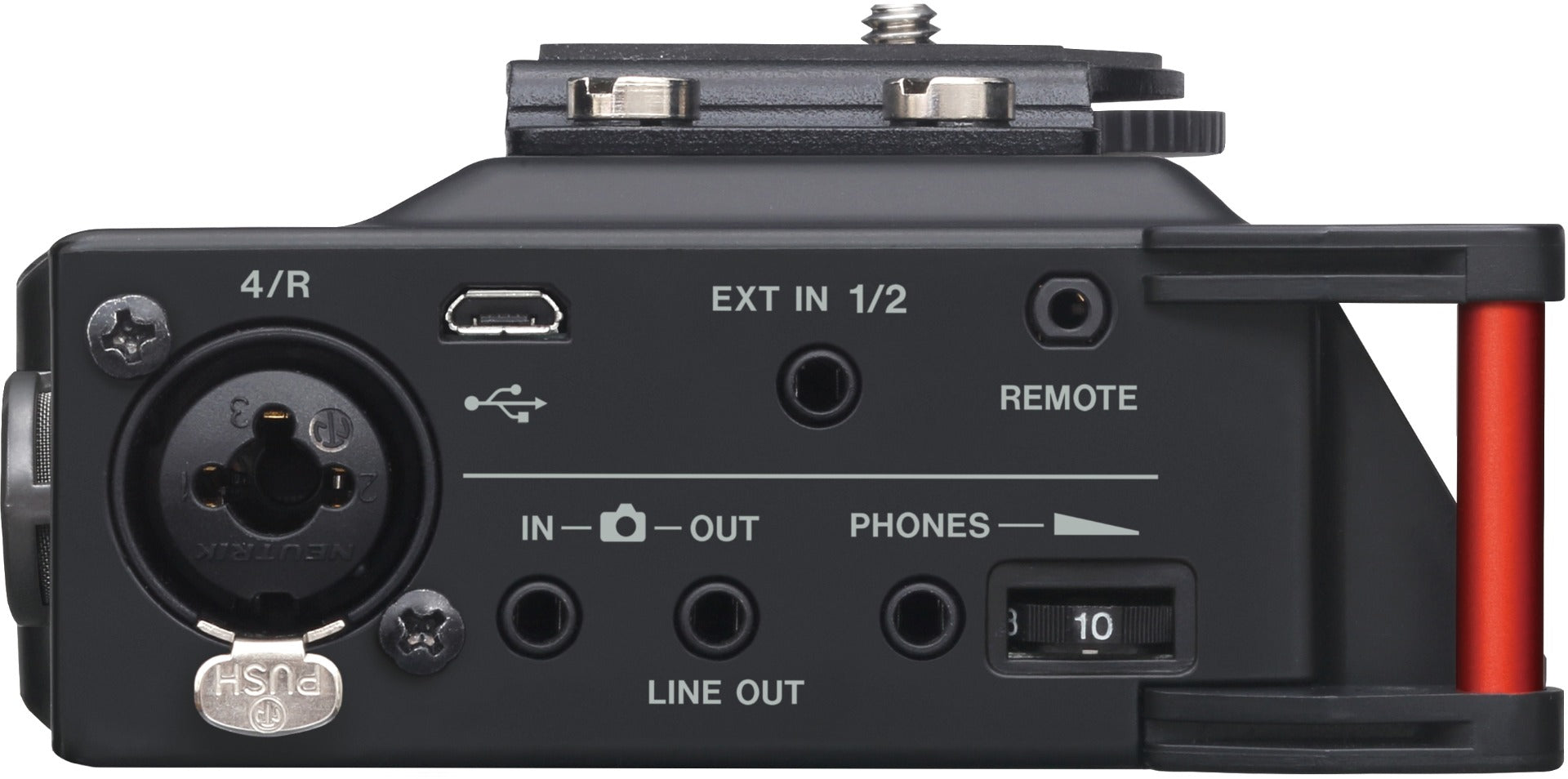

| Analog I/O | 4 xCombo XLR-1/4" TRS Female Balanced Line/Mic Input (Lockable) 1 x1/8" / 3.5 mm TRS Female Unbalanced Mic Input 1 x1/8" / 3.5 mm TRS Female Unbalanced Camera Input 1 x1/8" / 3.5 mm TRS Female Unbalanced Camera/Line Output 1 x1/8" / 3.5 mm TRS Female Unbalanced Headphone Output 1 x2.5 mm TRS Female Remote Input |
| Digital I/O | None |
| Phantom Power | +24 / 48 V ± 4 V (Selectable on Individual Inputs) |
| Phantom Power Current | 10 mA per Channel |
| Plug-In Power | Yes |
| Host Connection | 1 xMicro-USB (USB 2.0) |
Performance
| Frequency Response | Line Outputs, Mic/Line Inputs: 20 Hz to 20 kHz +0.5/-2 dB (At 48 kHz, JEITA) 20 Hz to 40 kHz +0.5/-3 dB (At 96 kHz, JEITA) |
| Gain Range | Balanced Inputs: +21 dB to +63 dB Unbalanced Inputs: +3 dB to +38 dB |
| Max Input Level | Mic Inputs: 0 dBu Line Inputs: +20 dBu 1/8" Inputs: +10 dBV Camera Inputs: +6 dBV |
| Max Output Level | Camera Outputs: -24 dBV Line Outputs: +6 dBV |
| Headphone Output Power | 20 mW per Channel |
| Impedance | Mic Inputs: 2 kOhms Line Inputs: ≥10 kOhms 1/8" / 3.5 mm Inputs: 10 kOhms Camera Outputs: 200 Ohms Line Outputs: 200 Ohms |
| SNR | ≥92 dB |
| THD | ≤0.02% |
| EIN | -120 dBu |
Power
| Power Options | Batteries, USB Bus Power, AC/DC Power Adapter |
| Battery Type | 4 xAA (Not Included) |
| Approximate Battery Life | WAV 44.1 kHz/16-Bit: 6 Hours (AA Alkaline, 2 Channels, Phantom Off, Recording) 3.5 Hours (AA Alkaline, 2 Channels, Phantom On, Recording) 11 Hours (AA Alkaline, Recording, Built-In Mic) 6.25 Hours (AA NiMH, 2 Channels, Phantom Off, Recording) 3.25 Hours (AA NiMH, 2 Channels, Phantom On, Recording) 10.5 Hours (Alkaline, Recording, Built-In Mic) |
| AC/DC Power Adapter | 5 VDC at 1 A (Not Included) |
