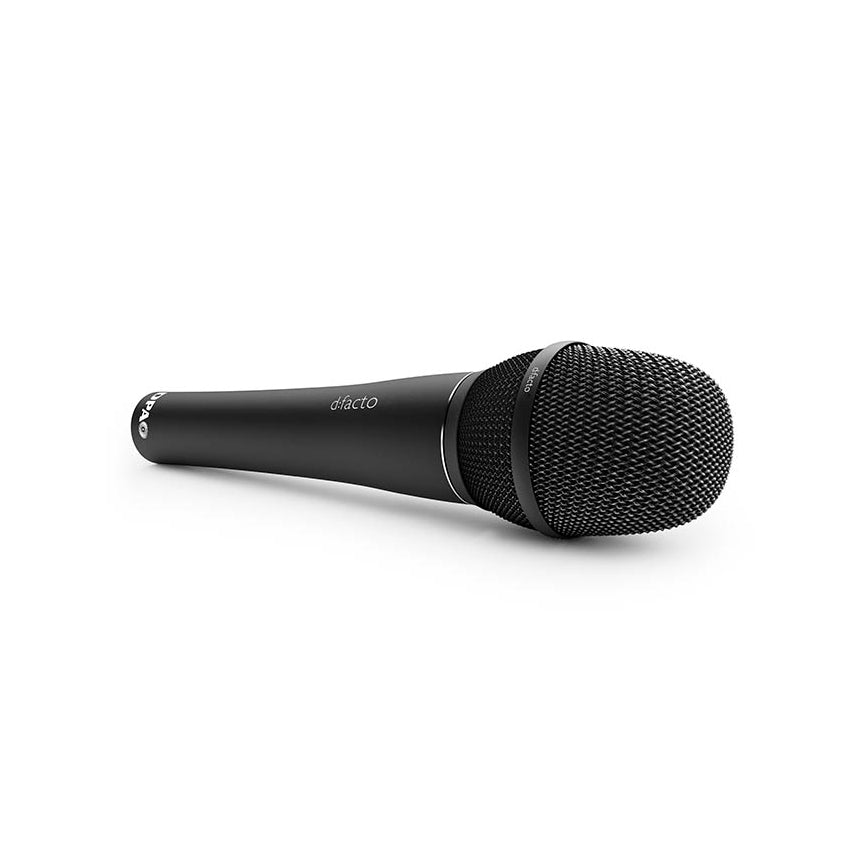

This extremely linear version of the d:facto™ Vocal Microphone is engineered specifically for audio engineers who prefer setting their own unique impression on the final sound.

Just like the d:facto™ Vocal Microphone, which has a high-end boost, it captures electrifying performances and accurately replicates a singer's voice transparently, consistently and thrillingly. The only difference is the removal of the high-end boost. The mic is optimized for use in sound reinforcement as well as recording applications. It offers natural sound, high separation from nearby sound sources and SPL handling up to 160 dB.

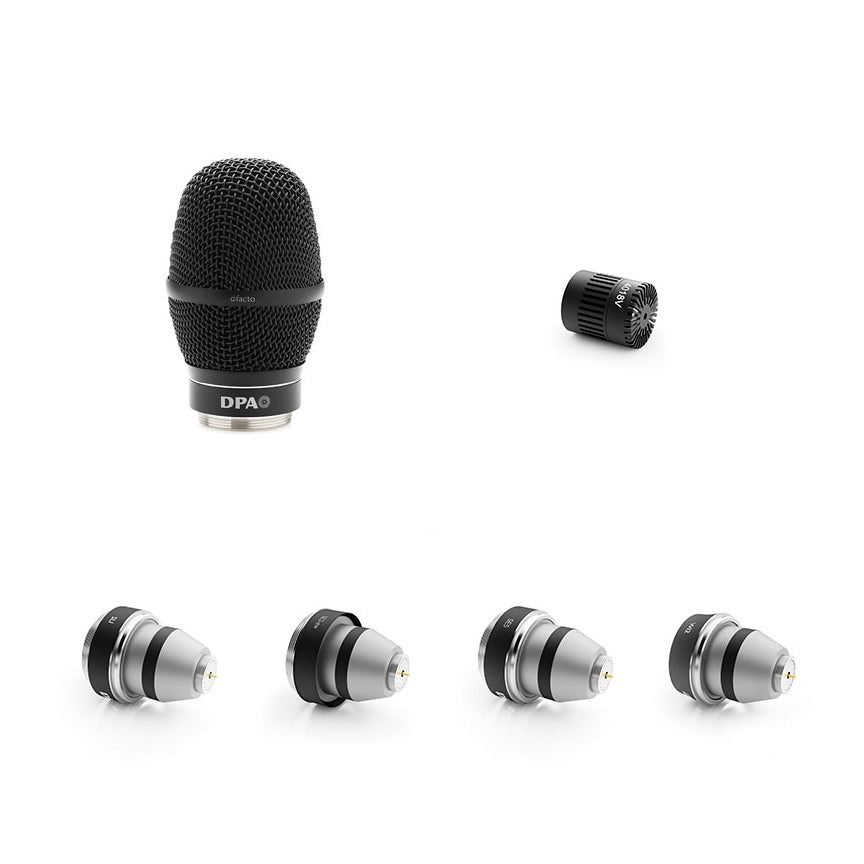

The modular nature of the d:facto™ series allows you to switch both the capsule as well as the adapter.

The d:facto™ Supercardioid Capsule features an isolation-optimized supercardioid polar pattern. It is specifically designed to enhance the human vocal range. It uses directional characteristic from the best of two worlds – both cardioid and supercardioid patterns. The supercardioid front lobe ensures complete focus on the sound source, while the back lobe, which is smaller than on a normal supercardioid, ensures there is minimum bleed. The capsule’s directional pattern and definition gives high separation and true sound clarity onstage making it ideal for PA amplification and recording. Frequency response and phase, both on- and off-axis, are linear. You can remove the capsule and replace it with any other d:facto™ capsule if your needs change.

The mic also features a robust three-stage pop protection grid built into the microphone removes unwanted noise.

Although, the d:facto™ Vocal Microphone is the perfect choice to use with your favorite wireless system, it is not necessarily set to be a wireless mic. The adapter can be replaced with the d:facto™ Handle for a wired solution.

Flexible Adapter System

The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.

d:facto™ adapters work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony and Wisycom. DPA Microphones’ ingenious adapter system is one of a kind in the industry. This modular system protects your investment in fantastic sound for years to come.

{{asset=1108, align=center, width=75%}}

More Information
Product Name Super Cardioid Linear Vocal Microphone
Brand DPA
Condition New
MPN FA4018VLSE2-ewB
Shipping Option Free Shipping to the Continental U.S.
  • Extraordinarily natural sound
  • Perfectly uniform supercardioid directionality
  • High separation
  • Extreme SPL handling: 160 dB
  • Low handling noise
  • Flexible adapter system fits most professional wireless systems
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz, permanent third order high pass filter at 80 Hz
  • Frequency range, ±2 dB: 100 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
  • Total harmonic distortion (THD): < 1% up to 130 dB SPL peak
  • Dynamic range: Typ. 114 dB
  • Max. SPL, peak before clipping: 154 dB
  • Output impedance: 100 Ω
  • Minimum load impedance: 1 kΩ
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
  • Power supply (for full performance): 48 V Phantom power (± 4 V)
  • Current consumption: Max. 2 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 311 g (11.0 oz)
  • Microphone diameter: 52 mm (2.05 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: 205 mm (8.1 in)
  • Maximum output voltage, RMS: 8 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90

Super Cardioid Linear Vocal Microphone

Details

This extremely linear version of the d:facto™ Vocal Microphone is engineered specifically for audio engineers who prefer setting their own unique impression on the final sound.

Just like the d:facto™ Vocal Microphone, which has a high-end boost, it captures electrifying performances and accurately replicates a singer's voice transparently, consistently and thrillingly. The only difference is the removal of the high-end boost. The mic is optimized for use in sound reinforcement as well as recording applications. It offers natural sound, high separation from nearby sound sources and SPL handling up to 160 dB.

The modular nature of the d:facto™ series allows you to switch both the capsule as well as the adapter.

The d:facto™ Supercardioid Capsule features an isolation-optimized supercardioid polar pattern. It is specifically designed to enhance the human vocal range. It uses directional characteristic from the best of two worlds – both cardioid and supercardioid patterns. The supercardioid front lobe ensures complete focus on the sound source, while the back lobe, which is smaller than on a normal supercardioid, ensures there is minimum bleed. The capsule’s directional pattern and definition gives high separation and true sound clarity onstage making it ideal for PA amplification and recording. Frequency response and phase, both on- and off-axis, are linear. You can remove the capsule and replace it with any other d:facto™ capsule if your needs change.

The mic also features a robust three-stage pop protection grid built into the microphone removes unwanted noise.

Although, the d:facto™ Vocal Microphone is the perfect choice to use with your favorite wireless system, it is not necessarily set to be a wireless mic. The adapter can be replaced with the d:facto™ Handle for a wired solution.

Flexible Adapter System

The adapters for wireless systems give you flexible, simple and affordable possibilities. You are no longer bound to one wireless system. As circumstances change, you can just switch your adapter, instead of incurring the cost of a whole new microphone. And when you make the switch, you won't hear any loss or change in sound quality.

d:facto™ adapters work with all leading wireless mic solutions, such as Lectrosonics, Sennheiser, Shure, Sony and Wisycom. DPA Microphones’ ingenious adapter system is one of a kind in the industry. This modular system protects your investment in fantastic sound for years to come.

{{asset=1108, align=center, width=75%}}

More Information
Product Name Super Cardioid Linear Vocal Microphone
Brand DPA
Condition New
MPN FA4018VLSE2-ewB
Shipping Option Free Shipping to the Continental U.S.
Features
  • Extraordinarily natural sound
  • Perfectly uniform supercardioid directionality
  • High separation
  • Extreme SPL handling: 160 dB
  • Low handling noise
  • Flexible adapter system fits most professional wireless systems
Tech Specs
  • Directional pattern: Omnidirectional
  • Principle of operation: Pressure
  • Cartridge type: Pre-polarized condenser
  • Frequency range: 20 Hz - 20 kHz, permanent third order high pass filter at 80 Hz
  • Frequency range, ±2 dB: 100 Hz - 20 kHz with typ. 3 dB soft boost at 14 kHz
  • Sensitivity, nominal, ±2 dB at 1 kHz: 10 mV/Pa; -40 dB re. 1 V/Pa
  • Equivalent noise level, A-weighted: Typ. 16 dB(A) re. 20 µPa (max. 18 dB(A))
  • Equivalent noise level, ITU-R BS.468-4: Typ. 28 dB (max. 30 dB)
  • S/N ratio (A-weighted), re. 1 kHz at 1 Pa (94 dB SPL): Typ. 78 dB(A)
  • Total harmonic distortion (THD): < 1% up to 130 dB SPL peak
  • Dynamic range: Typ. 114 dB
  • Max. SPL, peak before clipping: 154 dB
  • Output impedance: 100 Ω
  • Minimum load impedance: 1 kΩ
  • Cable drive capability: 100 m (328 ft)
  • Output balance principle: Impedance balancing with Active Drive
  • Common mode rejection ratio (CMRR): > 50 dB at 1 kHz
  • Power supply (for full performance): 48 V Phantom power (± 4 V)
  • Current consumption: Max. 2 mA
  • Connector: XLR-3M. Pin 1: shield, Pin 2: signal + phase, Pin 3: - phase
  • Color: Matte black
  • Weight: 311 g (11.0 oz)
  • Microphone diameter: 52 mm (2.05 in)
  • Capsule diameter: 19 mm (0.75 in)
  • Microphone length: 205 mm (8.1 in)
  • Maximum output voltage, RMS: 8 V
  • Polarity: +V at pin 2 for positive sound pressure
  • Temperature range: -40°C to 45°C (-40°F to 113°F)
  • Relative humidity (RH): Up to 90
