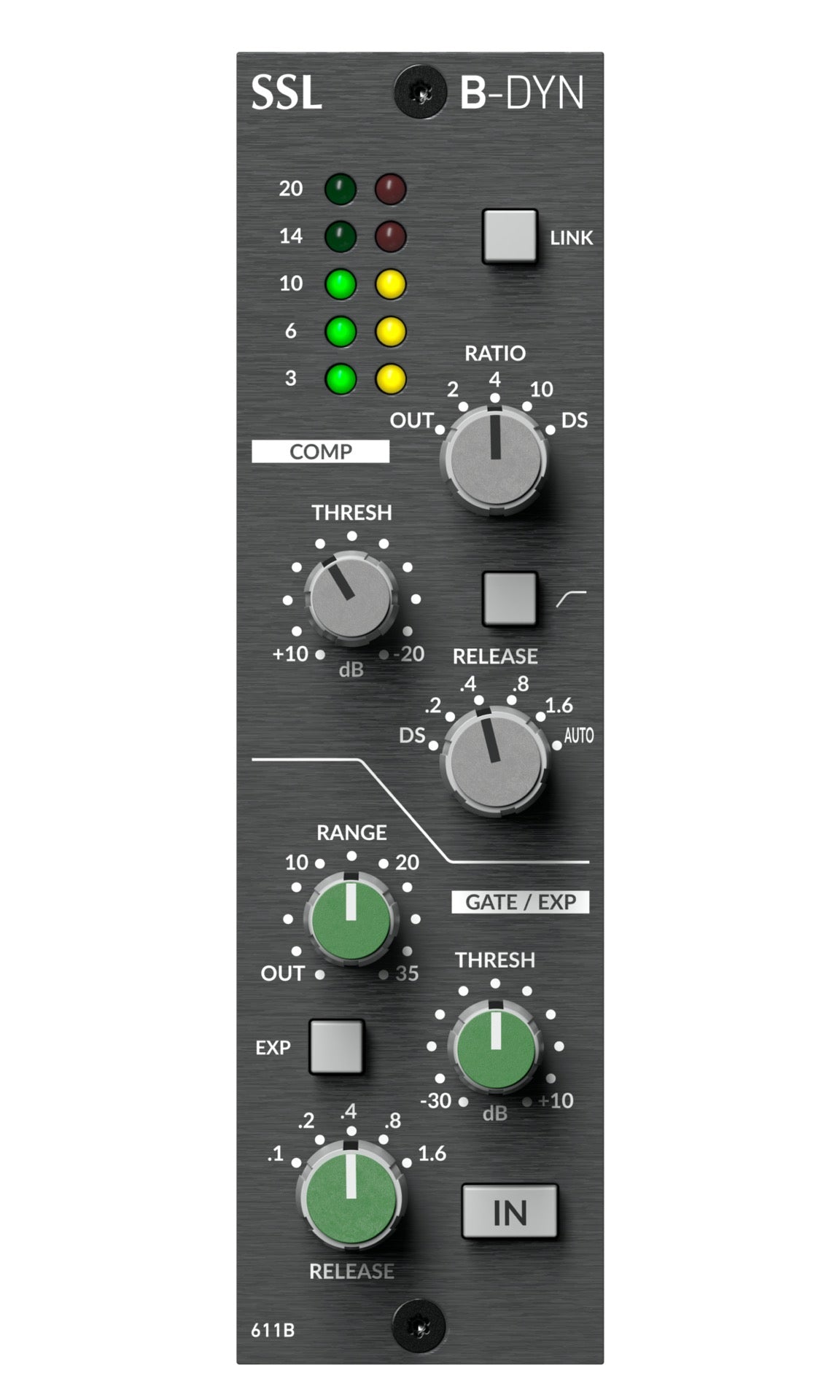

The 4000 B Dynamics (B-DYN) 500 series module takes the dynamics processor found in the channel strip of the SL 4000 B console and puts it into 500 Series format. Released in 1976, the SL 4000 B was the first commercially available console from Solid State Logic and famously used in ‘The Stone Room’ at Virgin’s Townhouse Studio (London), Le Studio (Montreal) and Record Plant (LA). It was responsible for countless iconic records, including Phil Collins’ ‘In the Air Tonight’ and Peter Gabriel’s ‘Intruder’, both of which feature characterful compression on drums and vocals. The B-DYN allows you to add heavily colored, grabby, saturated compression from one of the rarest studio consoles ever made to your production toolkit.
| Product Name | Solid State Logic B-DYN 611B 500 Series Dynamics Module |
|---|---|
| Brand | Solid State Logic |
| Condition | New |
| MPN | 729737X1 |
| UPC | 878076001883 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Solid State Logic B-DYN 611B 500 Series Dynamics Module
- Authentic recreation of SL 4000 B consoles dynamics processing
- Design based on the SSL Bus Compressor
- Features Compressor/Limiter & Gate/Expander
- Feedback design with Peak sensing for aggressive ‘grabby’ character
- Fixed compression ratios, 2:1, 4:1 & 10:1 with additional ‘DS’ mode
- Fixed release times, DS, .2, .4, .8, 1.6 & renowned ‘Auto’
- Auto make-up gain
- Sidechain High Pass Filter
- Stereo Link mode
- New (classic) SSL flavor for your productions
| Type | 500-Series Dynamics Processor |
| Functions | Compression, Expansion, Gating |
| Circuitry | SSL SuperAnalogue™ |
| Sidechain | Variable EQ for sidechain filtering |
| Threshold | Adjustable threshold for control over compression/expansion |
| Ratio Control | Adjustable ratio from 1:1 to 10:1 |
| Metering | LED meters for gain reduction and output levels |
| Control Options | Threshold, Ratio, Attack, Release, Sidechain EQ |
| Power Requirements | Powered by 500-series rack |
| Dimensions | Standard 500-Series Module (1.5" x 5.25") |
| Weight | Approx. 0.5 kg (1.1 lbs) |
| Inputs | Balanced XLR Input |
| Outputs | Balanced XLR Output |
Solid State Logic B-DYN 611B 500 Series Dynamics Module
The 4000 B Dynamics (B-DYN) 500 series module takes the dynamics processor found in the channel strip of the SL 4000 B console and puts it into 500 Series format. Released in 1976, the SL 4000 B was the first commercially available console from Solid State Logic and famously used in ‘The Stone Room’ at Virgin’s Townhouse Studio (London), Le Studio (Montreal) and Record Plant (LA). It was responsible for countless iconic records, including Phil Collins’ ‘In the Air Tonight’ and Peter Gabriel’s ‘Intruder’, both of which feature characterful compression on drums and vocals. The B-DYN allows you to add heavily colored, grabby, saturated compression from one of the rarest studio consoles ever made to your production toolkit.
| Product Name | Solid State Logic B-DYN 611B 500 Series Dynamics Module |
|---|---|
| Brand | Solid State Logic |
| Condition | New |
| MPN | 729737X1 |
| UPC | 878076001883 |
| Shipping Option | Free Shipping to the Continental U.S. |
What's in the Box?
- Solid State Logic B-DYN 611B 500 Series Dynamics Module
- Authentic recreation of SL 4000 B consoles dynamics processing
- Design based on the SSL Bus Compressor
- Features Compressor/Limiter & Gate/Expander
- Feedback design with Peak sensing for aggressive ‘grabby’ character
- Fixed compression ratios, 2:1, 4:1 & 10:1 with additional ‘DS’ mode
- Fixed release times, DS, .2, .4, .8, 1.6 & renowned ‘Auto’
- Auto make-up gain
- Sidechain High Pass Filter
- Stereo Link mode
- New (classic) SSL flavor for your productions
| Type | 500-Series Dynamics Processor |
| Functions | Compression, Expansion, Gating |
| Circuitry | SSL SuperAnalogue™ |
| Sidechain | Variable EQ for sidechain filtering |
| Threshold | Adjustable threshold for control over compression/expansion |
| Ratio Control | Adjustable ratio from 1:1 to 10:1 |
| Metering | LED meters for gain reduction and output levels |
| Control Options | Threshold, Ratio, Attack, Release, Sidechain EQ |
| Power Requirements | Powered by 500-series rack |
| Dimensions | Standard 500-Series Module (1.5" x 5.25") |
| Weight | Approx. 0.5 kg (1.1 lbs) |
| Inputs | Balanced XLR Input |
| Outputs | Balanced XLR Output |
