Why you need the Mesa Boogie CABCLONE Cabinet Simulator/Speaker and Mic Alternative
• Provides a direct interface from your guitar's speaker output and goes directly into the input of your mixing console or preamp.
• Can be used with or without a speaker cabinet and eliminates other units that could potentially color/effect your sound.
• Can act as a Compensated Headphone Driver that mimics the tone of your amp so you can practice in peace.
• Made in the USA.

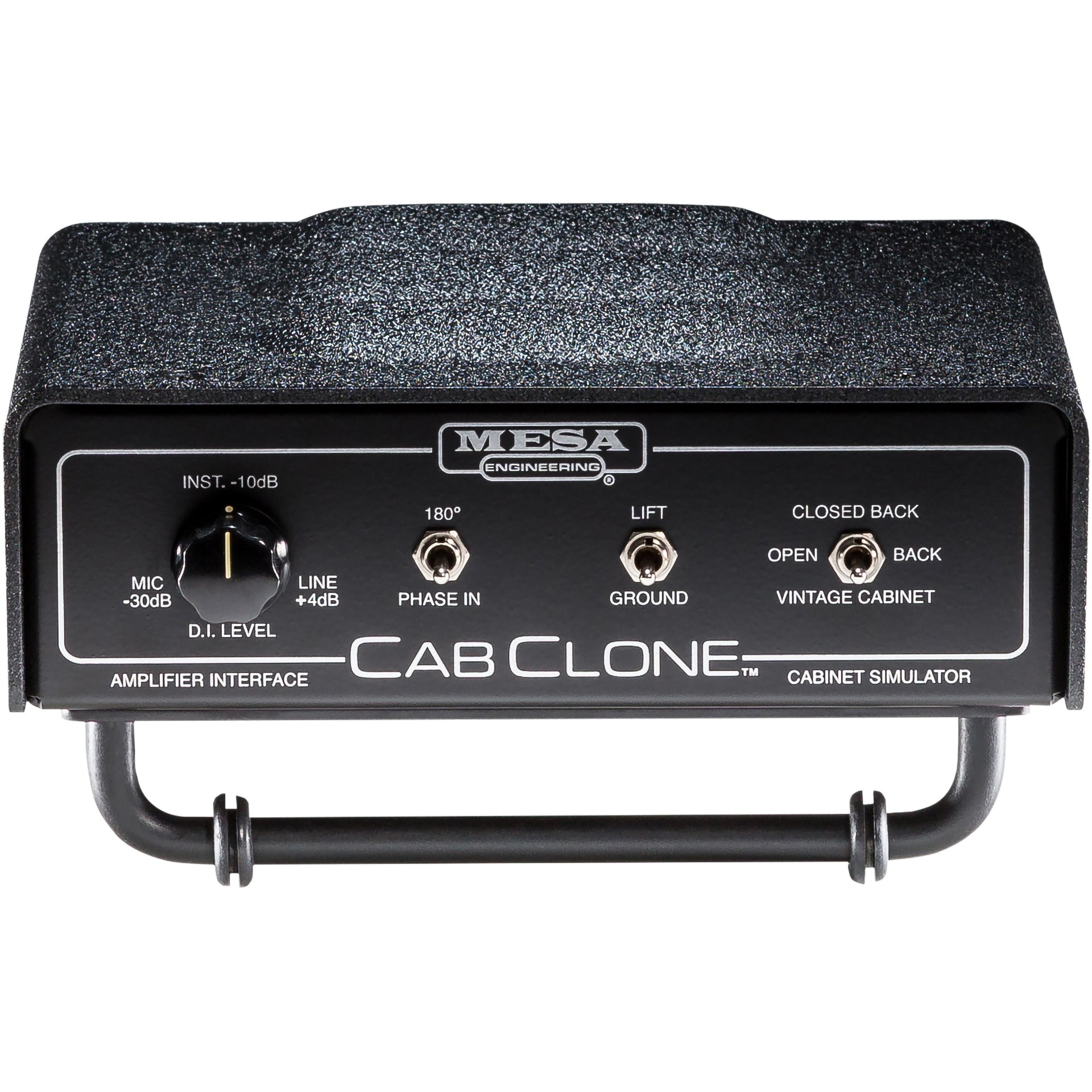

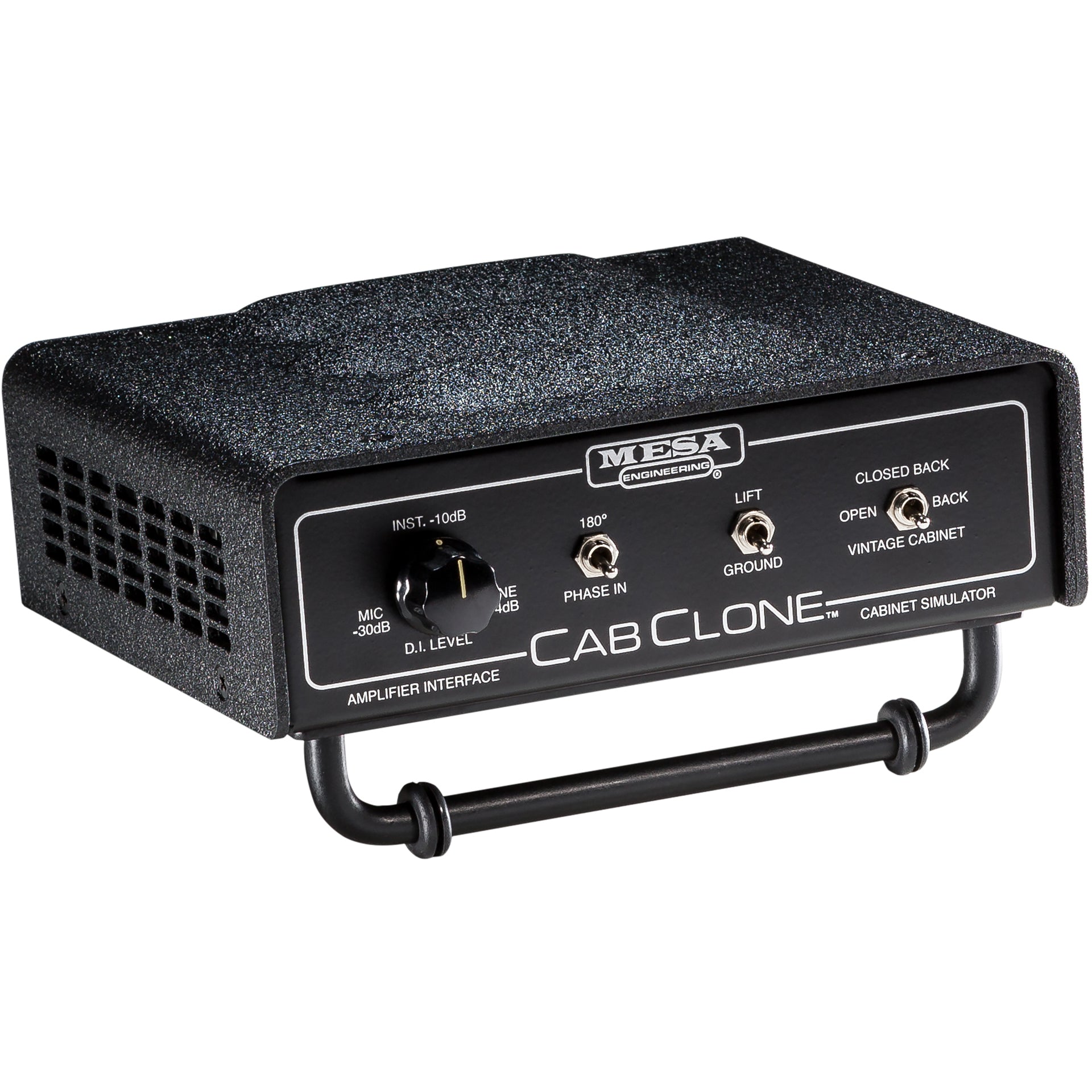

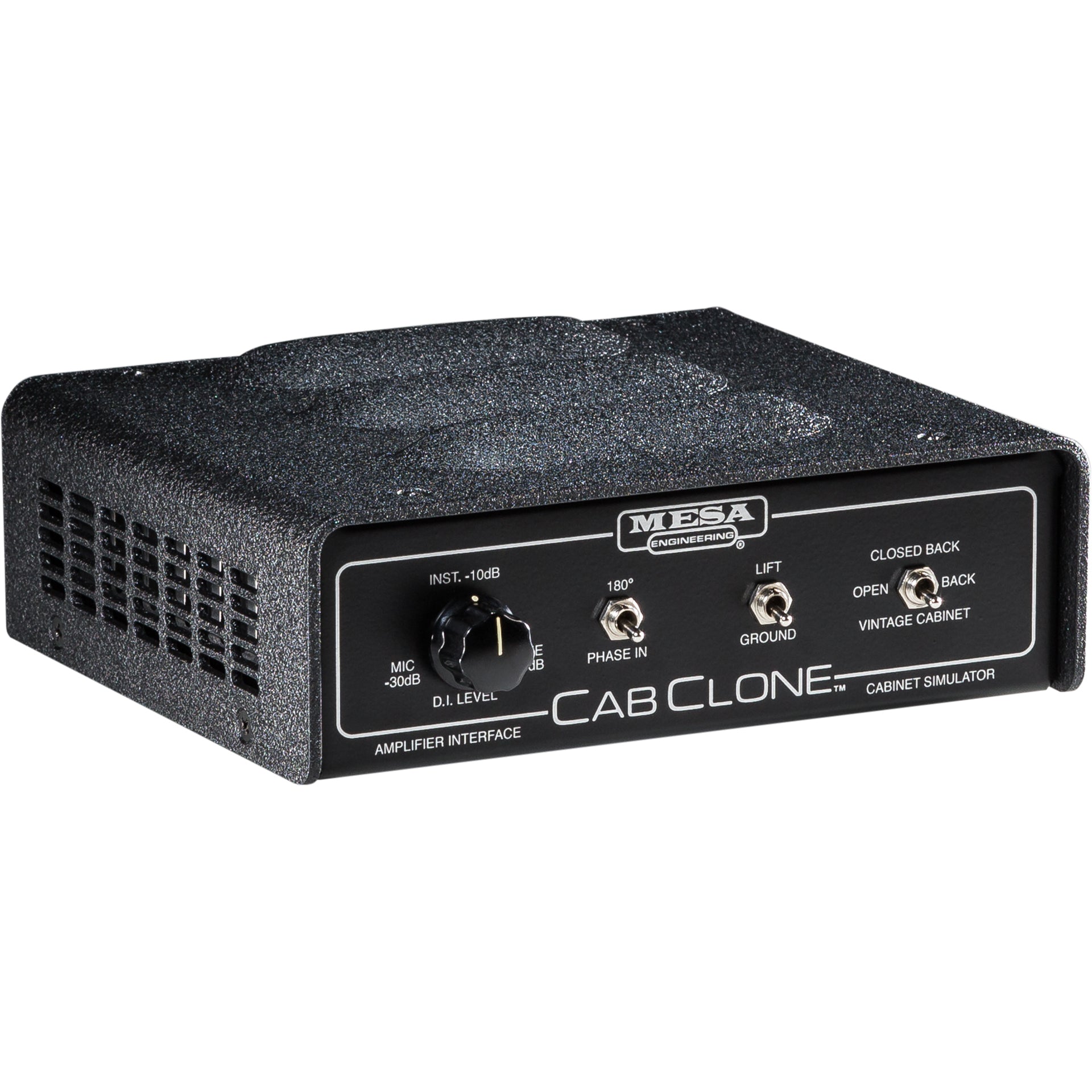

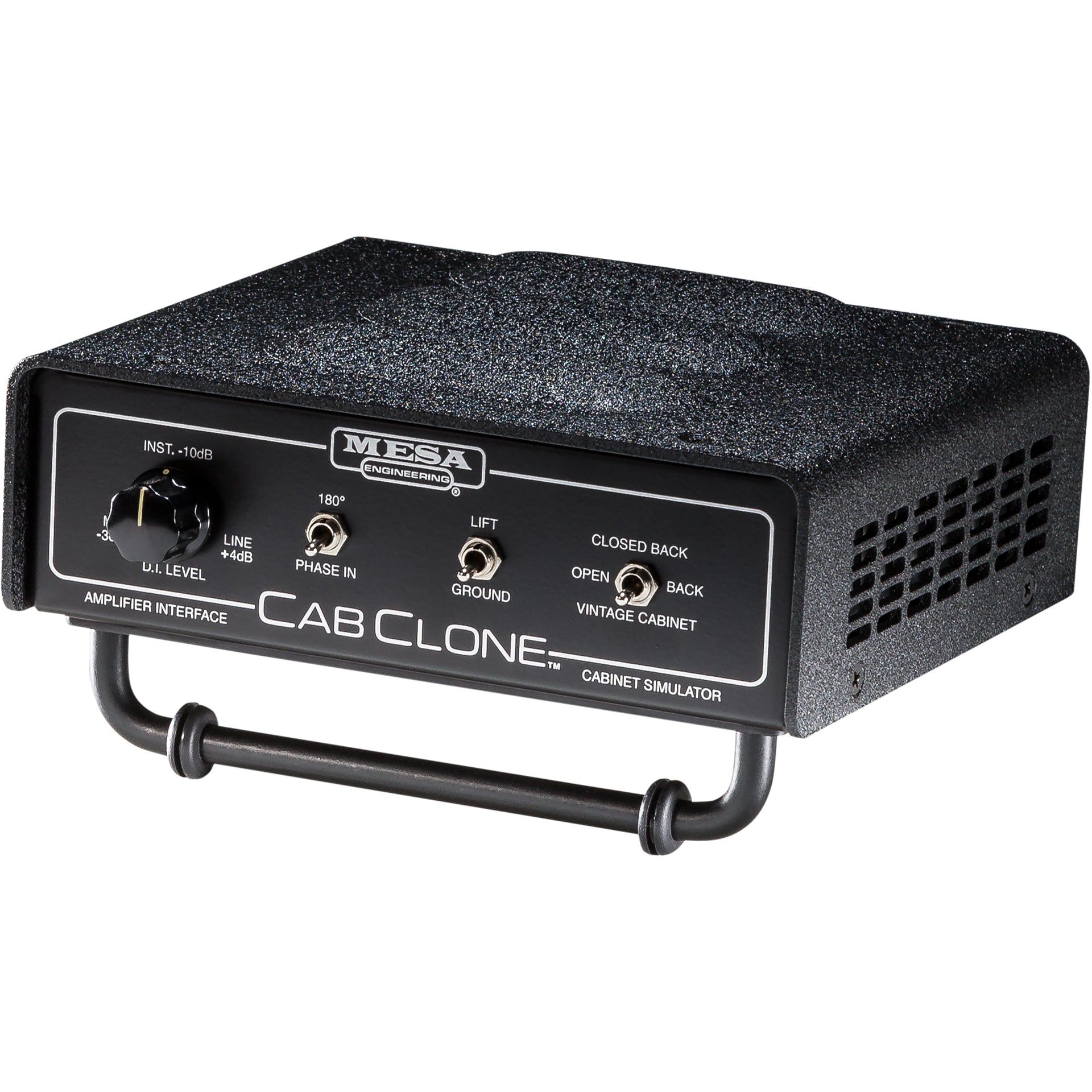

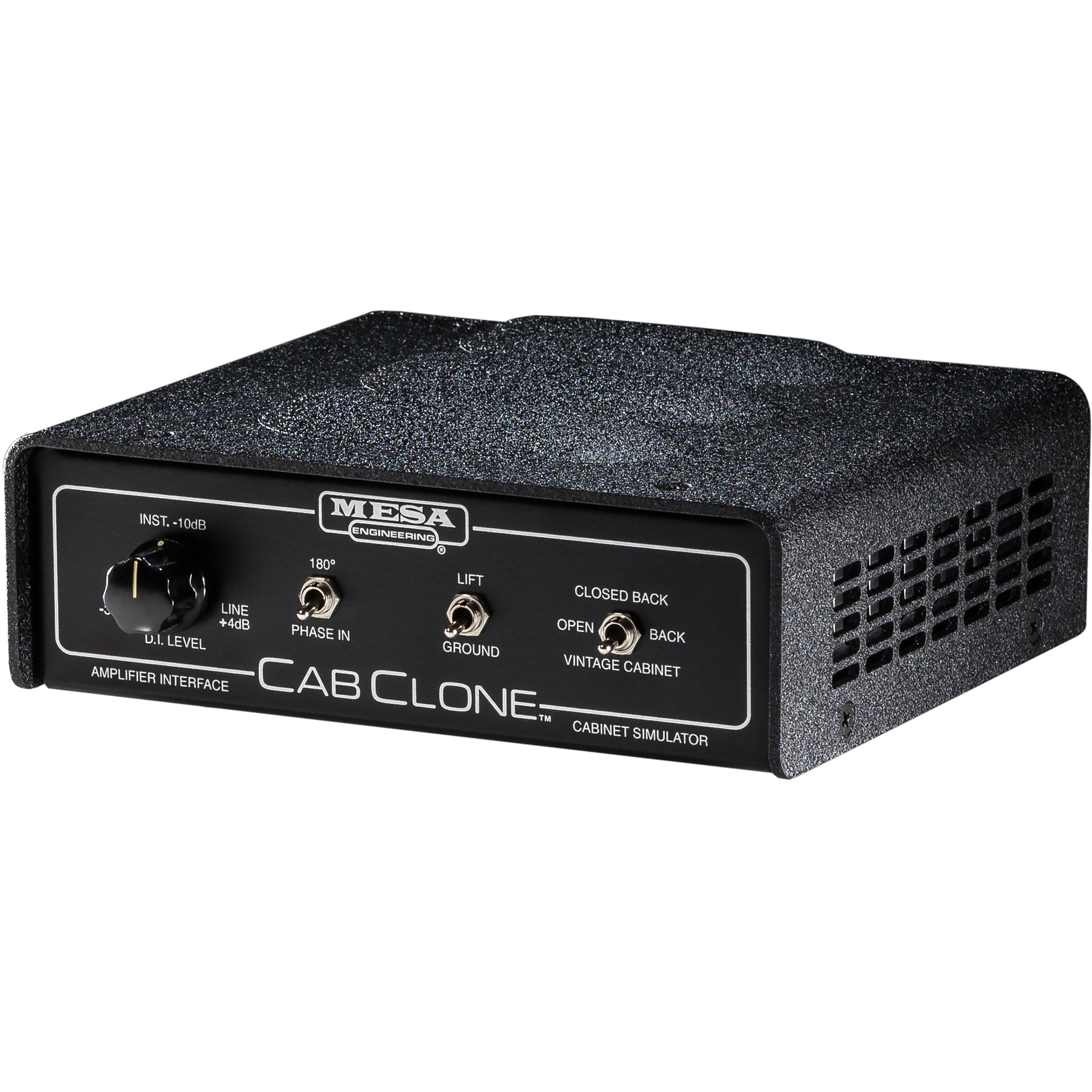

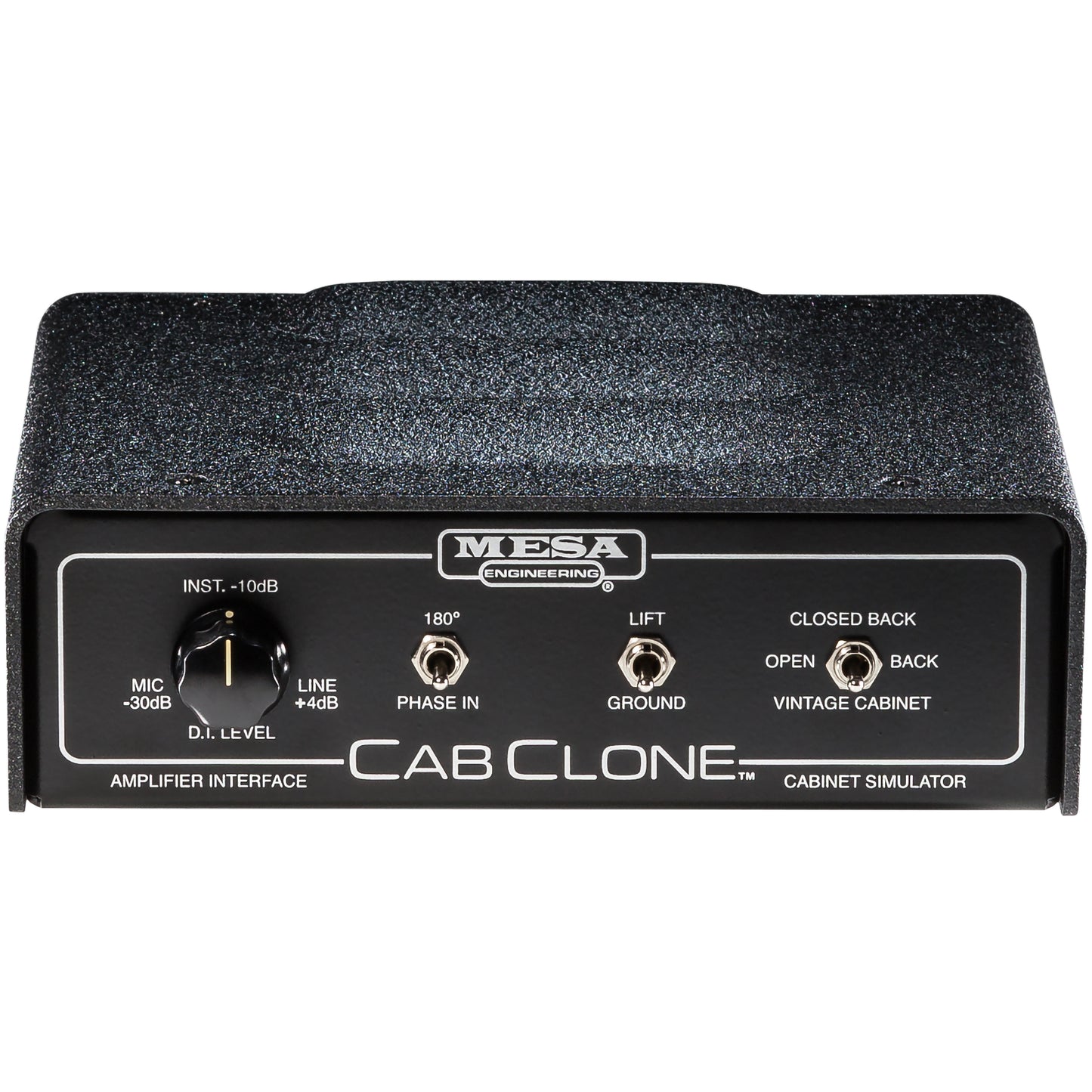

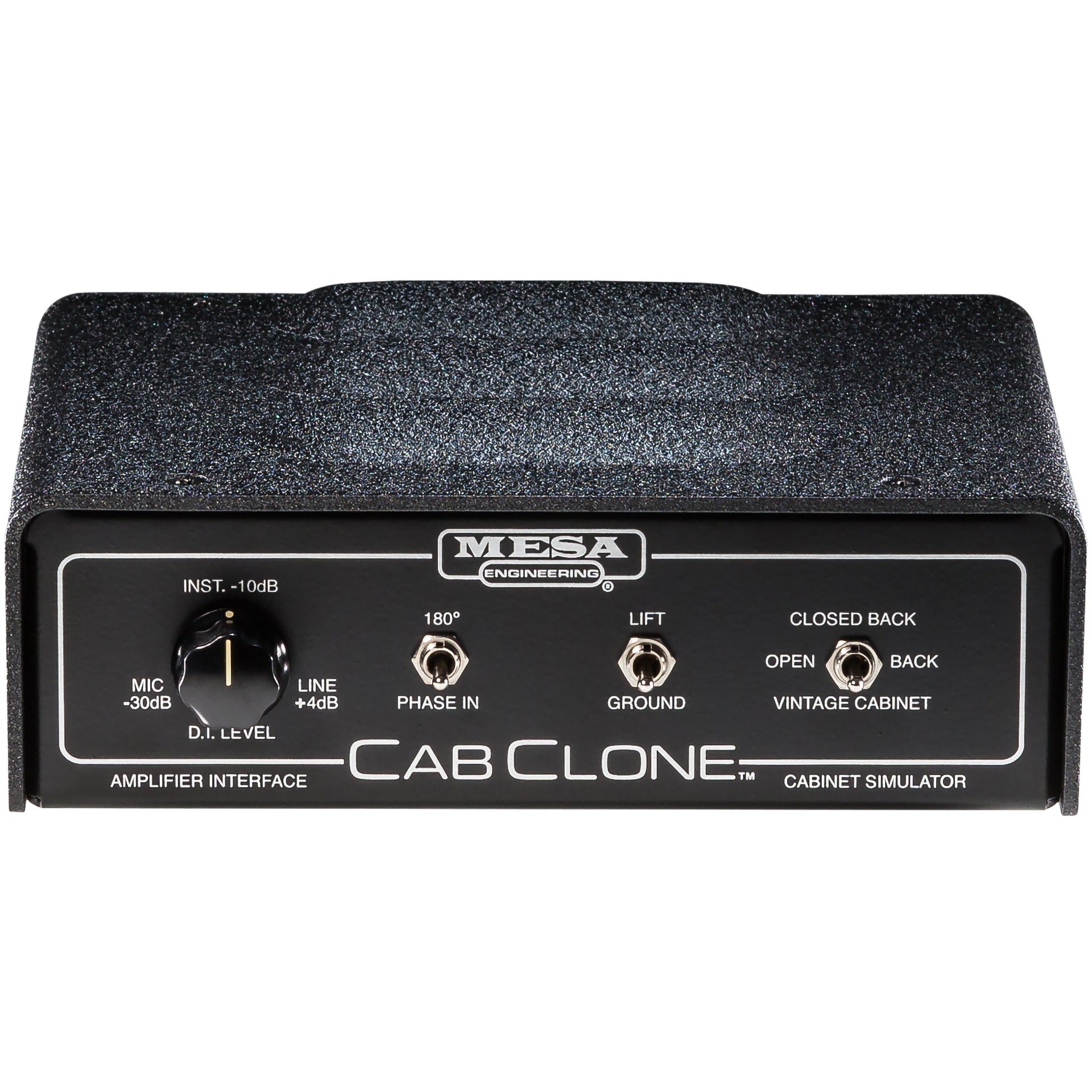

The Mesa Boogie CABCLONE is a cabinet Simulator and/or Speaker and Mic Alternative that will revolutionize the way you record. This compact unit weighs only 2.3 lbs so it can easily be transported to and from the studio. It eliminates the need for miking up cabinets and allows you to plug the CABCLONE directly into your mixing console or preamp giving you the clearest representation of your amp. It can also act as a headphone driver that "clones" the sound of your amp while using headphones. This allows you to practice quietly without disturbing anyone but gives you the full tone you crave. The CABCLONE is designed for amps rated at 100-Watts or less and our standard format is for 8 OHMs (Also available are 4 OHM and 16 OHM versions). Made in the USA.
| Product Name | Mesa Boogie CABCLONE Cabinet Simulator/Headphone Driver (8 Ohm) |
|---|---|
| Brand | Mesa Boogie |
| Condition | New |
| MPN | AC.CC8 |
| UPC | 809404004832 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Designed and Handcrafted in Petaluma, California, USA
- Passive Design – No Power Supply Required
- Built-In Internal Amp Load FOR AMPS RATED 100 WATTS OR LESS (auto-activates when no cable is connected to “Thru†Output)

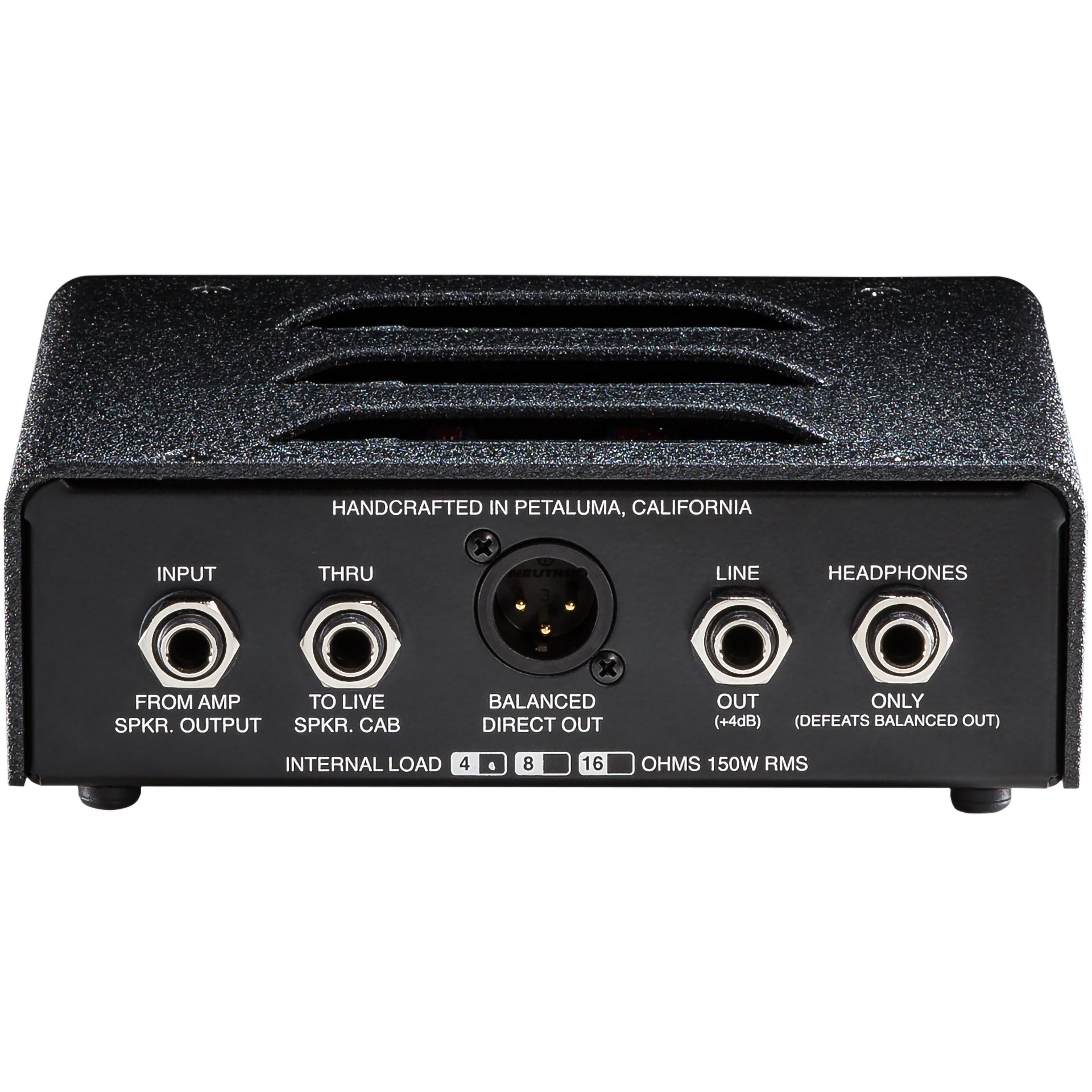

- 1/4" “Input†Jack (receives signal from amp's speaker output)
- 1/4" “Thru†Output Jack (defeats to Internal Load when no cable is connected)
- 3-Position Cabinet Voicing Switch - Open-Back, Closed-Back & Vintage Closed-Back Cabinet Simulations
- Variable -30 to +4db DI Output Level Control with presets for Dynamic Mic Level (-30db), Instrument Level (-10db) & Line Level (+4db)
- Balanced XLR Direct Output (controlled by the Variable DI Output Level Control)
- Independent 1/4" +4 Line Level “Slave†Output Jack (exact signal from amp's speaker output, non-simulated)
- Compensated Headphone Output Jack (defeats balanced outputs when used)
- Phase Switch – Normal (In) or Reverse (180°)
- Ground Lift Switch
- Removable Tilt-Back Stand (for use over an amp handle)
- Dimensions (W/D/H): 6.7" x 6.40" x 2.30" without tilt-back stand (3.30†with tilt back stand) 170.18mm x 162.56mm x 58.42mm without tilt-back stand (83.82†with tilt back stand)
- Weight: 2.3lbs (1.04Kg) WITH Tilt-Back Stand
/ 2.2lbs (.998Kg) WITHOUT Tilt-Back Stand


Mesa Boogie CABCLONE Cabinet Simulator/Headphone Driver (8 Ohm)
Details
Why you need the Mesa Boogie CABCLONE Cabinet Simulator/Speaker and Mic Alternative
• Provides a direct interface from your guitar's speaker output and goes directly into the input of your mixing console or preamp.
• Can be used with or without a speaker cabinet and eliminates other units that could potentially color/effect your sound.
• Can act as a Compensated Headphone Driver that mimics the tone of your amp so you can practice in peace.
• Made in the USA.
The Mesa Boogie CABCLONE is a cabinet Simulator and/or Speaker and Mic Alternative that will revolutionize the way you record. This compact unit weighs only 2.3 lbs so it can easily be transported to and from the studio. It eliminates the need for miking up cabinets and allows you to plug the CABCLONE directly into your mixing console or preamp giving you the clearest representation of your amp. It can also act as a headphone driver that "clones" the sound of your amp while using headphones. This allows you to practice quietly without disturbing anyone but gives you the full tone you crave. The CABCLONE is designed for amps rated at 100-Watts or less and our standard format is for 8 OHMs (Also available are 4 OHM and 16 OHM versions). Made in the USA.
| Product Name | Mesa Boogie CABCLONE Cabinet Simulator/Headphone Driver (8 Ohm) |
|---|---|
| Brand | Mesa Boogie |
| Condition | New |
| MPN | AC.CC8 |
| UPC | 809404004832 |
| Shipping Option | Free Shipping to the Continental U.S. |
Features
- Designed and Handcrafted in Petaluma, California, USA
- Passive Design – No Power Supply Required
- Built-In Internal Amp Load FOR AMPS RATED 100 WATTS OR LESS (auto-activates when no cable is connected to “Thru†Output)
- 1/4" “Input†Jack (receives signal from amp's speaker output)
- 1/4" “Thru†Output Jack (defeats to Internal Load when no cable is connected)
- 3-Position Cabinet Voicing Switch - Open-Back, Closed-Back & Vintage Closed-Back Cabinet Simulations
- Variable -30 to +4db DI Output Level Control with presets for Dynamic Mic Level (-30db), Instrument Level (-10db) & Line Level (+4db)
- Balanced XLR Direct Output (controlled by the Variable DI Output Level Control)
- Independent 1/4" +4 Line Level “Slave†Output Jack (exact signal from amp's speaker output, non-simulated)
- Compensated Headphone Output Jack (defeats balanced outputs when used)
- Phase Switch – Normal (In) or Reverse (180°)
- Ground Lift Switch
- Removable Tilt-Back Stand (for use over an amp handle)
- Dimensions (W/D/H): 6.7" x 6.40" x 2.30" without tilt-back stand (3.30†with tilt back stand) 170.18mm x 162.56mm x 58.42mm without tilt-back stand (83.82†with tilt back stand)
- Weight: 2.3lbs (1.04Kg) WITH Tilt-Back Stand
/ 2.2lbs (.998Kg) WITHOUT Tilt-Back Stand
