Flux Pure Analyzer Meter
The principle of the Pure Analyzer System is to provide the option to capture the source signal with an entry-level laptop, or any other hardware supporting standard VST/AU/RTAS/TDM plug-ins, using the Sample grabber plug-in (see more under "Pure Analyzer Essential").
The actual analysis is then performed using a computer with a graphic card supporting OpenGL/DirectX. The system could also be coupled with a wireless transmitter to route a source test signal to the laptop to perform transfer curve measurements at different locations more conveniently.
The Pure Analyzer Metering provides an extensive set of measurement tools well adapted for Broadcast and Post Production facilities, presenting the metering tools for a vast range of standards such as True Peak, RMS, ITU-1770, EBU-R128 (PLOUD), history and more. For more detailed information, see under "Features".
Add-on Modules
As a complement to the Pure Analyzer Essential, in addition to the Pure Analyzer Metering module, two other different add-on modules providing specific tools for their actual field of usage, are currently available. In order to use any of the add-on modules, the Pure Analyzer Essential is required.
Other available add-on modules are:
Pure Analyzer Multichannel
Pure Analyzer Live
Metering Option
In order to run this add-on module, Pure Analyzer Essential is required.
Main Features
All meters are fully customizable and configurable to conform to existing and future standards and recommendations
Scaling
Ballistics
Reference level
Peak-hold
Cosmetics
EBU R128 / PLOUD
Momentary loudness
Short-term
Integrated
Range
ITU-R BS.1770 True Peak Default and user presets
K-System
VU Meter
DIN
PPM Nordic
PPM BBC
PPM EBU
Real-time metering history
Fully customizable
Scaling
Ballistics
Reference level
Peak-hold
Cosmetics
etc...
Peak
True Peak
RMS (PPM)
Dynamics (crest factor)
Momentary loudness
Short-term loudness

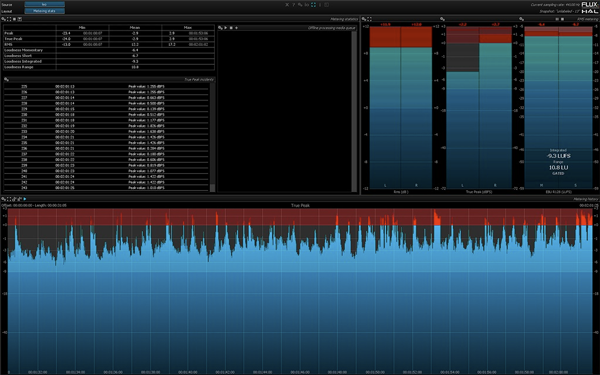

Real-time metering statistics
Peak: min, mean, max
True Peak: min, mean, max
Rms (PPM): min, mean, max
Loudness: Momentary, Short, Integrated and Range
True Peak incident list with customizable threshold
Export to text
Offline metering statistics
Offline file-processing
Multi-files support (with automatic channel type detection from file name)
Multi-Reels
Up to 16 channels
Peak: min, mean, max
True Peak: min, mean, max
Rms (PPM): min, mean, max
Loudness: Momentary, Short, Integrated and Range
True Peak incident list with customizable threshold
Export to text
Metering Option
In order to run this add-on module, Pure Analyzer Essential is required.
Processing Specifications
Mono and Stereo analysis
Sample rates up to 384 KHz
Network support with the SampleGrabber plug-in (Password-protected audio stream encryption)
Extremely efficient OpenGL based graphics rendering engine, capable of up to 120 fps
Independent display and time-code frame rates
Auto-pause controlled by user-defined threshold
System requirements
Pure Analyzer is built around Flux::'s new 2D/3D efficient graphic engine, which employs full GPU-acceleration utilizing an OpenGL-compliant graphics card.
In order to experience the outstanding graphical response in Pure Analyzer and to fully take advantage of the software's analysis capabilities, using a modern nVidia or ATI Radeon graphics card is recommended.
Older, and other less efficient graphics cards do not have the required performance and specifications, and will offload too much work to the CPU.
The processor is an important factor as well, and we recommend using at least and Intel Core 2 Duo, Core i5 or newer architecture processor. AMD processors are also supported, but might exhibit lower performance, as they do not offer the same capabilities and optimizations as Intel CPUs.
System recommendations
Minimum requirements
CPU: Intel Core 2 Duo @ 2 GHz
GPU: OpenGL 2.0 or superior compatible, with pixel-shader support
Recommended configuration
CPU: Intel Core i5 @ 2.5 GHz or better
GPU: AMD/ATI Radeon or nVidia video-card. Intel integrated graphics are not powerful enough and should be avoided.
Common requirements
A free USB port to connect the Flux:: or iLok dongle.
Notes
Please make sure that the latest version of vendor-provided optimized drivers are installed for your graphics card. Generic drivers may contain bugs and are in general less up-to-date with optimizations presented in drivers specific to your particular graphics card model.
Compatibility, Pure Analyzer Application (32/64-bit compatible)
Operating Systems
Windows - XP, Vista, 7
Mac OS X - 10.5, 10.6, 10.7
Hardware IO support
ASIO (Windows)
Core Audio (Mac OS X)
Compatibility, SampleGrabber plug-in (32-bit compatible using 64-bit internal processing)
All major native formats and TDM (Venue D-Show compatible)* are supported.
Windows - XP, Vista, 7
VST (2.4)
RTAS*
TDM*
Mac OS X - 10.5, 10.6, 10.7
VST (2.4)
AU
RTAS*
TDM*
*The TDM/RTAS version requires ProTools 7 or later.
| Product Name | Flux Pure Analyzer Meter |
|---|---|
| Brand | Flux |
| UPC | 0 |
| Shipping Option | Free Shipping to the Continental U.S. |
