*Please note this is a repack item*
Why You Need The BM5A Compact Powered Studio Monitor:
- Handcrafted aluminum drivers
- High-resolution soft dome tweeter
- Extended excursion 5.7" woofer
- 2 channel 50-Watt RMS high grade
- 117dB SPL peak power output
- Frequency response of 55Hz to 21kHz
- HF, MF, LF analog room filters
- High pass filters at 60/80Hz for perfect subwoofer adaption

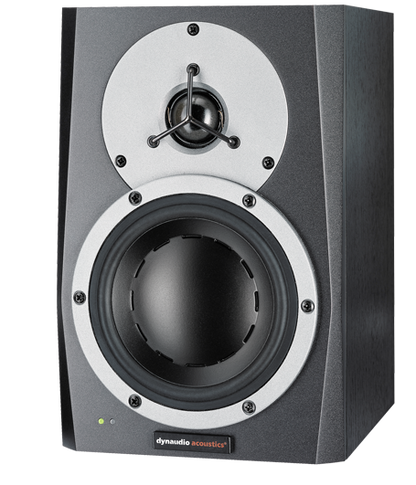

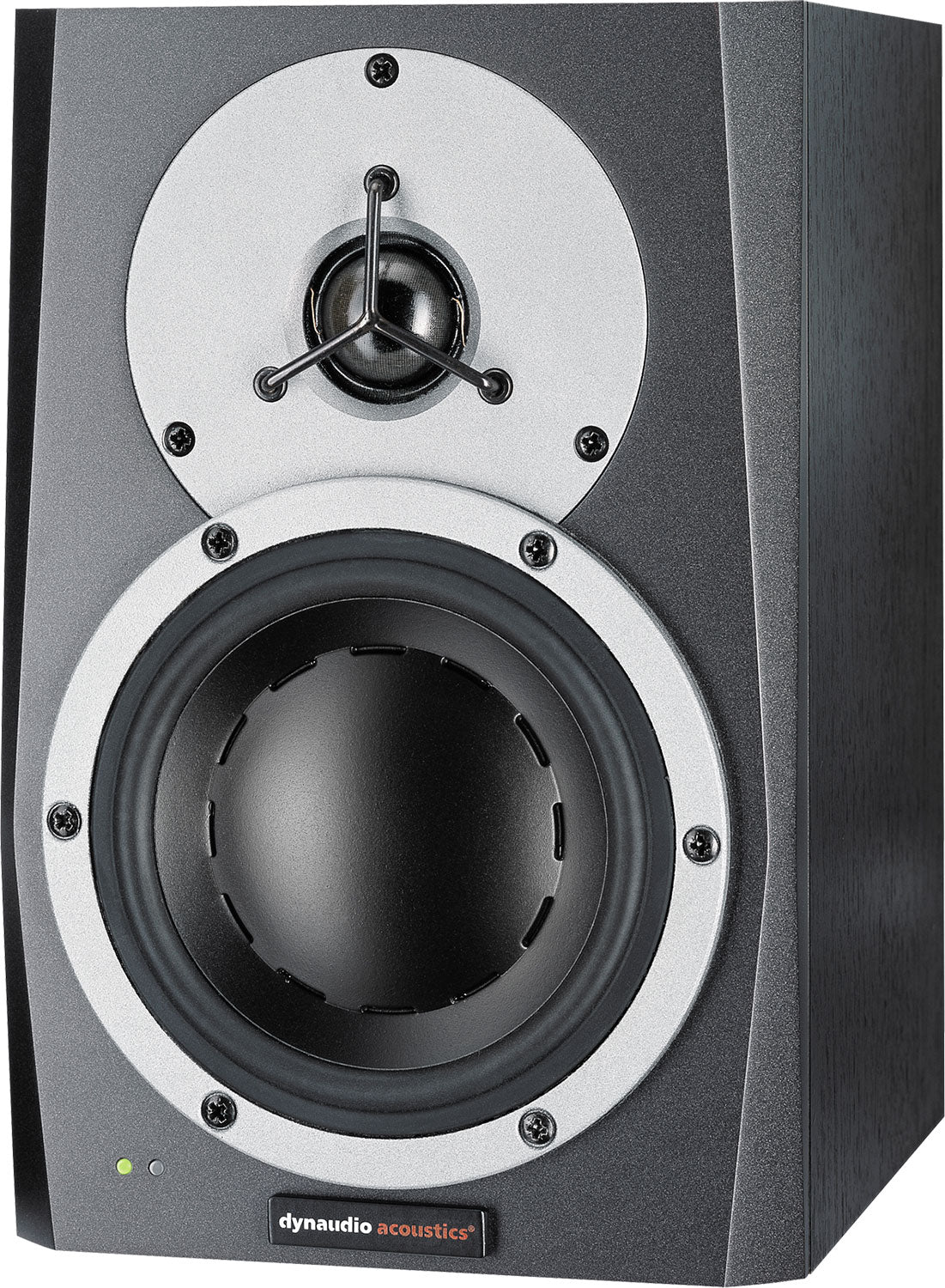

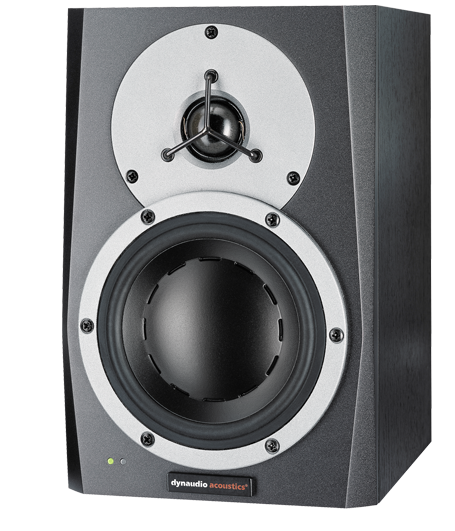

The BM5A Compact is an extremely small yet surprisingly powerful monitor, designed for professional film & post production and broadcast applications.
Extensive research has made it possible to fit an impressive 2 x 50 watt amplification into a cabinet that is as small as 170 x 260 x 235 mm / 6.7" x 10.2" x 9.3". OB vans, editing suites and film & post production facilities will benefit greatly from this monitor, which provides loads of power in virtually no space.
| Product Name | Dynaudio Professional BM5A Compact (995001211) |
|---|---|
| Brand | Dynaudio |
| UPC | 5706937470323 |
| Shipping Option | Free Shipping on orders over $94.72 |
Model: BM 5A Compact
System: Two-way Active Nearfield Monitor
Max SPL 1m, pair (IEC Short Term): 115 dB peak
Max SPL 2m, 5.1 (IEC Short Term): 116 dB peak
Input level for 85 dB SPL @1m (+4/-10): -16dBu RMS @ 0dB setting
Input level for max peak SPL (+4/-10): +9dBu Peak @ 0dB setting
Power consumption: Idle: 10 W / Max: 90 W
Amplifier power: Tweeter: 50 W / Woofer: 50 W
Resonance Frequency: 58 Hz
Internal Cabinet Volume: 4.8 liters
Bass Principle: Bass reflex
Crossover Frequencies: 1500 Hz
Crossover Slope: 6 dB/oct
Tweeter: Esotec 28 mm/1.1" soft dome, rear chamber, Magnetic fluid. 4 mm alu front, Pure alu wire voice coil
Woofer: 145 mm/5.7", One-piece molded poly-prop cone, 75 mm/3" pure alu voice coil
Weight: 7 kg / 15.4 lbs

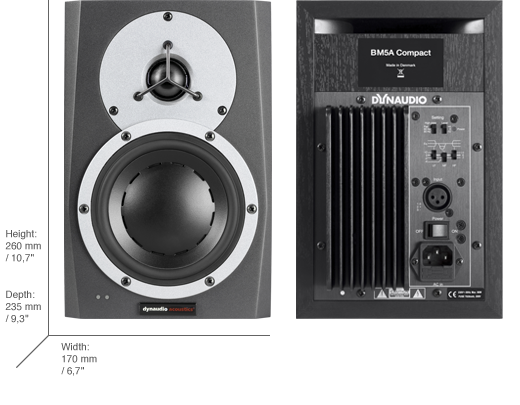

Dimensions (W x H x D): 170 x 260 x 235 mm / 6.7" x 10.2" x 9.3"
(Specs can change without notice)
Dynaudio Professional BM5A Compact (995001211)
*Please note this is a repack item*
Why You Need The BM5A Compact Powered Studio Monitor:
- Handcrafted aluminum drivers
- High-resolution soft dome tweeter
- Extended excursion 5.7" woofer
- 2 channel 50-Watt RMS high grade
- 117dB SPL peak power output
- Frequency response of 55Hz to 21kHz
- HF, MF, LF analog room filters
- High pass filters at 60/80Hz for perfect subwoofer adaption
The BM5A Compact is an extremely small yet surprisingly powerful monitor, designed for professional film & post production and broadcast applications.
Extensive research has made it possible to fit an impressive 2 x 50 watt amplification into a cabinet that is as small as 170 x 260 x 235 mm / 6.7" x 10.2" x 9.3". OB vans, editing suites and film & post production facilities will benefit greatly from this monitor, which provides loads of power in virtually no space.
| Product Name | Dynaudio Professional BM5A Compact (995001211) |
|---|---|
| Brand | Dynaudio |
| UPC | 5706937470323 |
| Shipping Option | Free Shipping on orders over $94.72 |
Model: BM 5A Compact
System: Two-way Active Nearfield Monitor
Max SPL 1m, pair (IEC Short Term): 115 dB peak
Max SPL 2m, 5.1 (IEC Short Term): 116 dB peak
Input level for 85 dB SPL @1m (+4/-10): -16dBu RMS @ 0dB setting
Input level for max peak SPL (+4/-10): +9dBu Peak @ 0dB setting
Power consumption: Idle: 10 W / Max: 90 W
Amplifier power: Tweeter: 50 W / Woofer: 50 W
Resonance Frequency: 58 Hz
Internal Cabinet Volume: 4.8 liters
Bass Principle: Bass reflex
Crossover Frequencies: 1500 Hz
Crossover Slope: 6 dB/oct
Tweeter: Esotec 28 mm/1.1" soft dome, rear chamber, Magnetic fluid. 4 mm alu front, Pure alu wire voice coil
Woofer: 145 mm/5.7", One-piece molded poly-prop cone, 75 mm/3" pure alu voice coil
Weight: 7 kg / 15.4 lbs
Dimensions (W x H x D): 170 x 260 x 235 mm / 6.7" x 10.2" x 9.3"
(Specs can change without notice)
