PRODUCT OVERVIEW
Engineered from the ground up for unmatched quality and performance, the Crown® DSi Series of power amplifiers offers four models of 500W, 800W, 1,200W, and 2,100W per channel at 4 ohms. Onboard digital signal processing includes crossovers, EQ filters, delay and output limiting. Rear panel HD-15 connector provides easy input/output connectivity between DSi amplifiers and the new DSi-8M System Monitor. At the touch of a button, Crown’s DSi cinema amplifiers deliver perfectly matched performance with each award-winning JBL ScreenArray® system, making this the ultimate cinema solution.
PRODUCT DETAILS
Includes three models of 500W, 800W, and 1200W per channel at 4 ohms
Automatic presets for popular JBL cinema speaker systems for quick, easy configuration
Intuitive front-panel LCD screen guides installers through setup
Onboard digital signal processing includes crossovers, EQ filters, delay, and output limiting
Computer connectivity via USB allows fast setup and configuration with HiQnet™ System Architect™ software
Rear-panel HD-15 connector provides easy input/output connectivity between DSi amplifiers and new DSi-8M System Monitor
Switch-mode universal power supply
All products fill 2U rack spaces and weigh under 19 pounds
Barrier strip outputs, removable Phoenix-style input
Three-Year, No-Fault, Fully Transferable Warranty completely protects your investment and guarantees its specifications
SPECIFICATIONS
DSi Specifications
- Frequency Response (at 1 watt into 4 ohms, 20Hz - 20 kHz) +0/-1 dB
- Signal to Noise Ratio (below rated 8-ohm power at 1 kHz, A-weighted) 100dB
- Damping Factor (8 ohm): 20 Hz to 400 hz > 500
- Input Stage Input is electonically balanced and employs precision 1% resistors
- AC Line Current DSi 1000: 11.56A, DSi 2000: 11.93A, DSi 4000: 11.75A
- At idle: Draws no more than 45 watts
- Crosstalk (below rated power) 20 hz to 1 kHz > 70 dB
- Input Impedance (nominal) 20 kilohms balanced, 10 kilohms unbalanced
- Load impedance (note: safe with all types of loads)
Dual
- Bridge mono 2-8 ohms (4-8 ohms in DSi 1000 A1 100V versions)
- 4-16 ohms (8-16 ohms in DSi 1000 A1 100V versions)
- Voltage Gain (at 1 kHz) DSi 1000: 30.5 dB, DSi 2000: 32.9 dB, DSi 4000: 34.2 dB
- Sensitivity (at 8 ohlm rated output) 1.4V
- Operating Temperature 0° C to 40° C at 95% relative humidity (non-condensing)
- AC Line Voltage and Frequency Configurations Available (± 10%) 100V, 120V-240V, 50/60 Hz
- Ventilation Flow-through ventilation from front to back
- Cooling Heat sinks and proportional-speed fan
- Dimensions: Width, Height, Depth (behind mounting surface) EIA Standard 19" W (EIA RS-310-B) x 3.5" (8.9 cm) Hx12.25" (31.1cm) D
- Net Weight DSi 1K, 2K, 4K: 19 lb (8.6 kg)
- DSi 6K: 24 lb (10.9 kg)
- Shipping Weight DSi 1K, 2K, 4K: 22 lb (10.0 kg)
- DSi 6K: 30 lb (13.6 kg)
| Product Name | Crown DSI2000 Power Amplifier |
|---|---|
| Brand | Crown |
| MPN | CROWNDSI2000 |
| UPC | 871015002156 |
| Shipping Option | Free Shipping to the Continental U.S. |

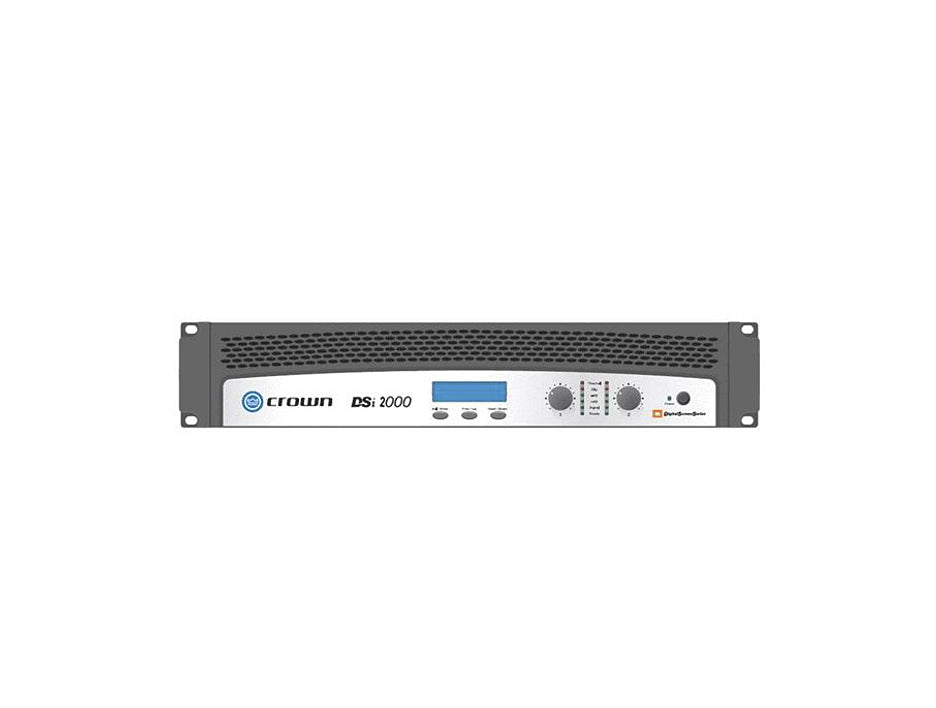

Crown DSI2000 Power Amplifier
