Chandler Limited TG Cassette Microphone Channel Strip
Chandler Limited’s TG Microphone Cassette is a full-featured mixing console channel strip, incorporating elements of the historic EMI/Abbey Road Studios TG12345 recording and mastering desks of the late ‘60s and ‘70s.
The Chandler Limited TG Microphone Cassette delivers the historic TG sound with modern conveniences, flexibility, and something new - the TG1 Opto Limiter.

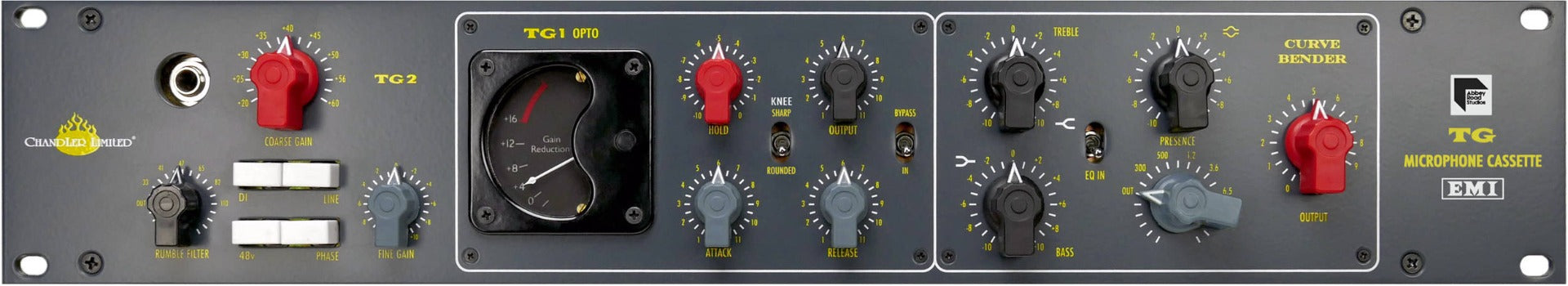

The three sections of the TG Microphone Cassette comprise Chandler Limited’s TG2 Pre-Amp coupled with a Curve Bender EQ section, including Treble, Bass, and Presence controls, and an independently patchable TG1 Opto Limiter.
History
The year was 1968 when EMI and Abbey Road Studios saw a change from the valve-driven REDD recording and mixing consoles to the transistorized TG12345 desk, a seminal moment that marked a qualitative shift in sound coming from the most famous studio in the world.
The remarkable sonic quality of the new EMI TG12345 transistor recording console with expanded EQ, and for the first time ever, a compressor/limiter on every channel would forever leave its mark on the Beatles “Abbey Road” and Pink Floyd’s “Dark Side of the Moon” albums, as well as recordings by Paul McCartney, John Lennon, George Harrison, and the Rolling Stones.
Retired from service in 1983, the TG desks were built by EMI for their studios and were never commercially available.
Specifications
- Channels: Mono
- TG2 Preamp: Transistor amplifier

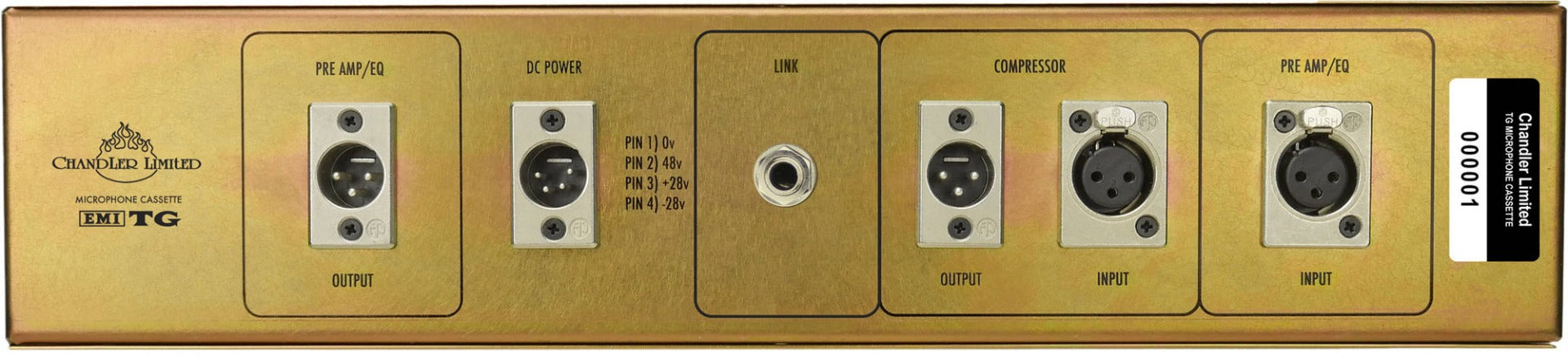

- Mic/Line: XLR Input (Transformer balanced, Mic 300Ω Impedance)
- DI: 1/4” Unbalanced
- Maximum gain: +70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable +/-10db)
- Rumble Filter (Low Cut): 6 Frequencies (Out, 33,41,47,65,82,110hz)
- Phantom power, Phase: Phantom (+48V), Phase (0-180º)
- Curve Bender EQ: Treble/Bass Shelf, Presence (Out, 300hz,500hz,1.2k 3.6k,6.5k), Output control, Bypass, XLR Output
- TG1 Opto Limiter: Independently patchable (XLR I/O), Hold, Attack, Release, Knee (Sharp/Rounded), Output (makeup gain), Bypass, Linkable (1/4” Jack)
- Power: External/PSU-1, Purchased separately
| Product Name | Chandler Limited TG Cassette Microphone-Channel Strip |
|---|---|
| Brand | Chandler Limited |
| Condition | New |
| MPN | tgcassette |
| UPC | 713803231549 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Channels: Mono
- TG2 Preamp: Transistor amplifier
- Mic/Line: XLR Input (Transformer balanced, Mic 300Ω Impedance)
- DI: 1/4” Unbalanced
- Maximum gain: +70db, Coarse Gain (Stepped +20 to +60db), Fine Gain (Variable +/-10db)
- Rumble Filter (Low Cut): 6 Frequencies (Out, 33,41,47,65,82,110hz)
- Phantom power, Phase: Phantom (+48V), Phase( 0-180º)
- Curve Bender EQ: Treble/Bass Shelf, Presence (Out, 300hz,500hz,1.2k,3.6k,6.5k), Output control, Bypass, XLR Output
- TG1 Opto Limiter: Independently patachable (XLR I/O), Hold, Attack, Release, Knee (Sharp/Rounded), Output (makeup gain), Bypass, Linkable (1/4” Jack)
- Power: External/PSU-1, Purchased separately
