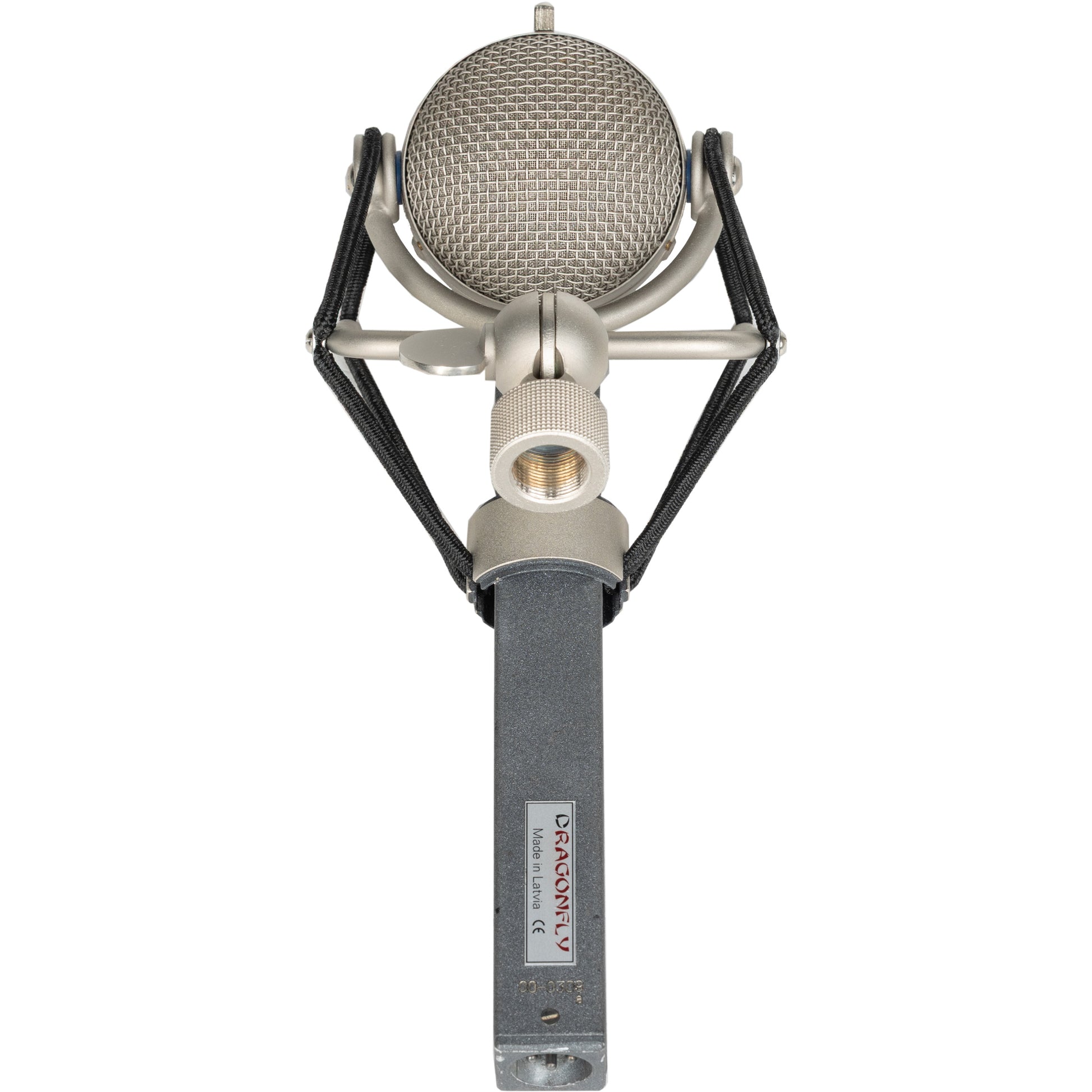

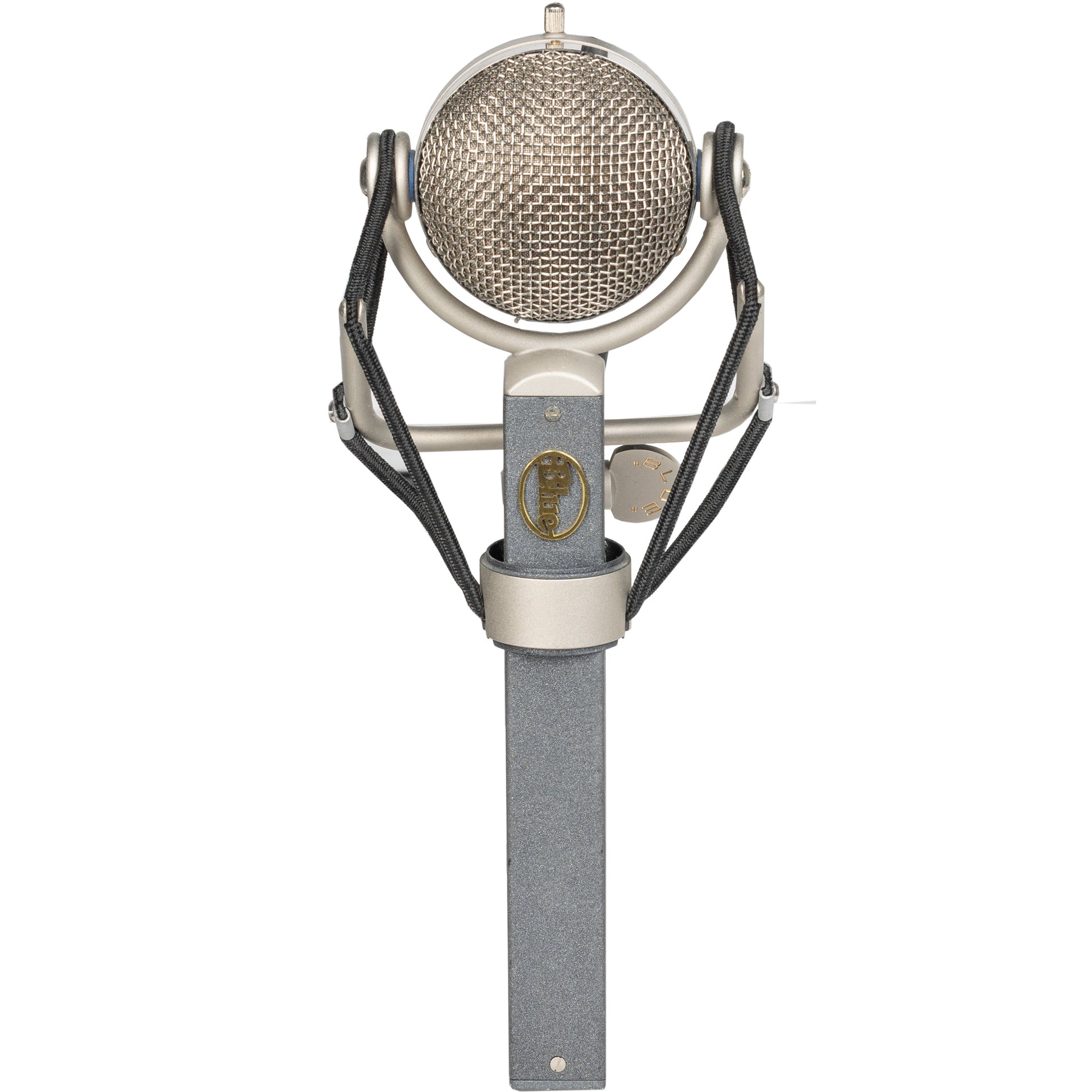

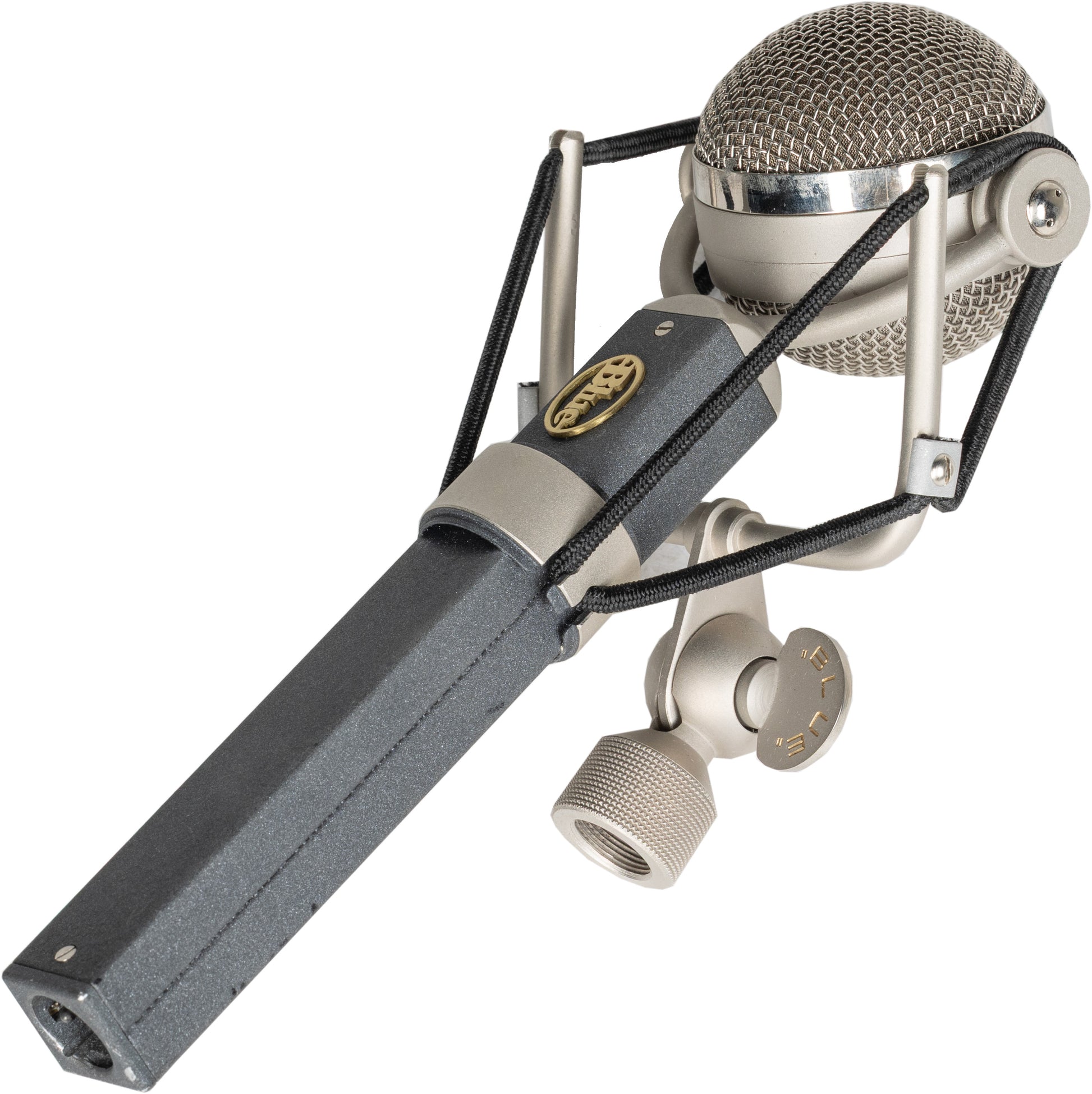

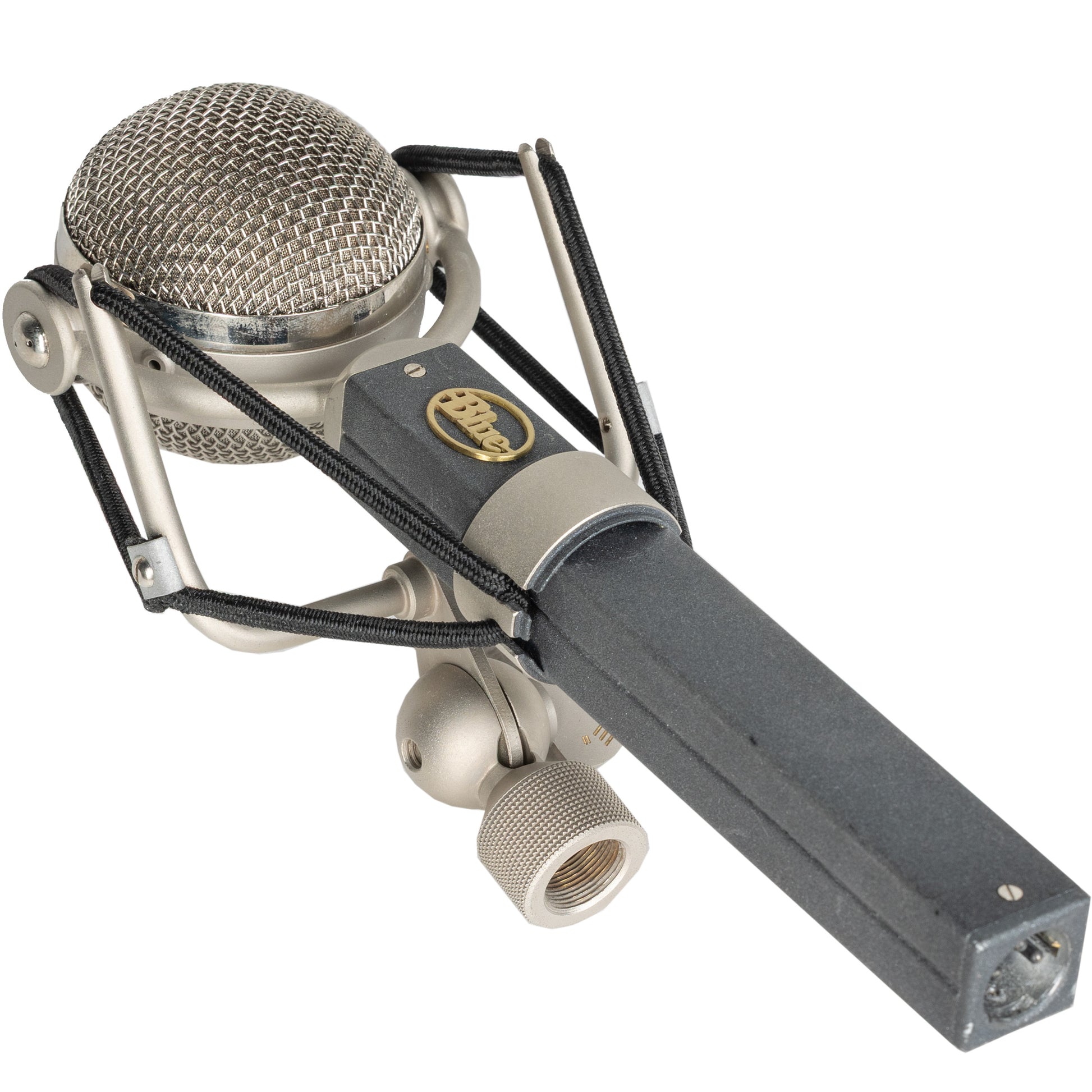

Blue Microphones Dragonfly Large-diaphragm Condenser Microphone

Blue Microphones Dragonfly Large-diaphragm Condenser Microphone

Limited quantities available!

View full details Liquid error (sections/main-product line 888): Could not find asset snippets/icon-arrow.liquid
  • Details
  • Features
  • Tech Specs

*Please note  -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

The Dragonfly Microphone from Blue features a cardioid condenser design and can be used with vocal and general instrument studio recording. It contains a pressure-gradient, single-membrane, large-diaphragm capsule and uses a 6-micron thick mylar film. The film is sputtered in a mixture of pure gold and aluminum and is enclosed in a rotating spherical grill. The rotating grill allows for optimum mic placement in small spaces and for maximum sonic quality.

The microphone offers Class A discrete circuitry and a transformerless output, resulting in a clean, quiet audio signal path with minimum coloration or noise. The Dragonfly's neutral signal and wide frequency response allow the microphone to record vocals, drums, percussion, electric guitar, and bass, as well as saxophones and stringed instruments. The cardioid polar pattern is effective on rejecting off-axis noise due to room ambiance, monitors, instruments, etc.

More Information
Product Name Blue Microphones Dragonfly Large-diaphragm Condenser Microphone
Brand Blue Microphones
Condition Pre-Owned
MPN DRAGONFLY
UPC 836213000519
Shipping Option Free Shipping to the Continental U.S.

What's in the Box?

  • Blue Microphones Dragonfly Large-diaphragm Condenser Microphone
  • Pressure-gradient large-diaphragm with single-membrane design
  • 6-micron thick mylar film sputtered with a gold and aluminum mixture
  • Rotating capsule allows for optimum mic placement
  • Designed with discrete Class A electronics
  • Transformerless output for pristine, noise-free signal on output
  • Cardioid polar pattern is effective in minimizing off-axis noise

Key Specs

Microphone Type Large Diaphragm
Element Type Condenser
Polar Pattern Cardioid
Power Sources Phantom Power

Microphone

Microphone Type Large Diaphragm
Element Type Condenser
Polar Pattern Cardioid
Gain Adjustment No

Performance

Frequency Range 20 Hz to 20 kHz
Maximum SPL 138 dB SPL
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 21 mV/Pa at 1 kHz
Dynamic Range 132 dB
Signal-to-Noise Ratio 85 dB A-Weighted
Equivalent Noise Level 8.0 dB A-Weighted
THD 0.5%

Connectivity

Analog Output 1x XLR 3-Pin

Power

Power Sources Phantom Power
Operating Voltage 48 V

Blue Microphones Dragonfly Large-diaphragm Condenser Microphone

Details

*Please note  -- This pre-owned item may show signs of use. Please refer to the photos for details of the product.

The Dragonfly Microphone from Blue features a cardioid condenser design and can be used with vocal and general instrument studio recording. It contains a pressure-gradient, single-membrane, large-diaphragm capsule and uses a 6-micron thick mylar film. The film is sputtered in a mixture of pure gold and aluminum and is enclosed in a rotating spherical grill. The rotating grill allows for optimum mic placement in small spaces and for maximum sonic quality.

The microphone offers Class A discrete circuitry and a transformerless output, resulting in a clean, quiet audio signal path with minimum coloration or noise. The Dragonfly's neutral signal and wide frequency response allow the microphone to record vocals, drums, percussion, electric guitar, and bass, as well as saxophones and stringed instruments. The cardioid polar pattern is effective on rejecting off-axis noise due to room ambiance, monitors, instruments, etc.

More Information
Product Name Blue Microphones Dragonfly Large-diaphragm Condenser Microphone
Brand Blue Microphones
Condition Pre-Owned
MPN DRAGONFLY
UPC 836213000519

What's in the Box?

Blue Microphones Dragonfly Large-diaphragm Condenser Microphone
Features
  • Pressure-gradient large-diaphragm with single-membrane design
  • 6-micron thick mylar film sputtered with a gold and aluminum mixture
  • Rotating capsule allows for optimum mic placement
  • Designed with discrete Class A electronics
  • Transformerless output for pristine, noise-free signal on output
  • Cardioid polar pattern is effective in minimizing off-axis noise
Tech Specs

Key Specs

Microphone Type Large Diaphragm
Element Type Condenser
Polar Pattern Cardioid
Power Sources Phantom Power

Microphone

Microphone Type Large Diaphragm
Element Type Condenser
Polar Pattern Cardioid
Gain Adjustment No

Performance

Frequency Range 20 Hz to 20 kHz
Maximum SPL 138 dB SPL
Impedance 50 Ohms
Load Impedance 1000 Ohms
Sensitivity 21 mV/Pa at 1 kHz
Dynamic Range 132 dB
Signal-to-Noise Ratio 85 dB A-Weighted
Equivalent Noise Level 8.0 dB A-Weighted
THD 0.5%

Connectivity

Analog Output 1x XLR 3-Pin

Power

Power Sources Phantom Power
Operating Voltage 48 V
