Experience Total Recall
Save and recall precise FX parameters, specific channel settings, console settings, or entire shows. Whether you're working on a complex live performance or a musical theater project, WING offers an extremely comprehensive toolkit for recalling and triggering all elements of your show instantaneously, with the granularity you need.
Enjoy World-Class Effects
WING is equipped with over 80 unique effects and emulations inspired by renowned hardware like the Pultec EQ, SSL Bus Compressor, Gate/Expander, SPL Transient Designer, Neve EQ, Compressor, Gate, Focusrite ISA and D3, DBX160, LA-2A, 1176, Elysia mPressor, and Empirical Labs Distressor*. No external gear is required.
WING boasts double the effect engines and insert points compared to the X32 and utilizes 40-bit internal processing algorithms, providing greater accuracy and an expanded dynamic range.
Configure WING to Suit You
Record Up to 64 Channels
The WING LIVE card comes pre-installed and allows you to record up to 64 channels simultaneously to 2 linked SD cards, or take a pre-recorded session and do a virtual soundcheck in the venue. You can also use one 32-track SD recorder for playback and the second one for recording the performance.
Swap Out External Cards with Ease
You can easily change the WING LIVE card for a WING DANTE card, enabling full 64x64 channel Dante networking connectivity. We are also planning other expansion cards for MADI and Waves Soundgrid, for example.
Plus Another 64x64 Channels via Internal AoIP Modules
The internal AoIP (Audio over IP) modules can fit directly into the mainboard of your WING console and enable the two internal network ports for Ethernet-based audio transmission. Our retailers can also help you upgrade your existing WING or order a new WING console with your preferred card pre-installed. We currently have AoIP-Dante and AoIP-WSG (Waves Soundgrid) modules available.
StageConnect —Connect More with Less
Transfer 32 channels of 44.1kHz/48kHz and 24-bit audio to and from I/O interfaces, hubs, personal monitoring mixers, and more using just one XLR/DMX cable.
Need assistance with calculating cable lengths? Try our StageConnect Configurator app.
Experience 48 Amazing FlexChannels
Stereo or Mono — You Decide
Set all channel and buses to mono, stereo or even M/S while maintaining the full channel count (FX slots included) at no performance cost at all.
Superior Sound, Seamless Setup
Give musicians an immersive experience of full stereo in-ear monitoring with WING's 16 stereo buses. You can also add stereo insert effects to any channel with just a single click!
Limitless Potential
WING's flexible channel configuration adapts to your needs, offering up to 48 channels in any Mono, Stereo or M/S format.
Take Full Control
WING RACK features a control front panel on a unique swivel, allowing for fully convenient operation. Its dedicated Custom Control section, with 16 customizable layers and 3 pre-configured channel layers, is clearly labeled on a separate LCD. The large touch screen with rotary controls for intuitive parameter adjustments offers the same innovative user interface that the full-size WING console is famous for.
Finally, All the Preamps You Need
24 Midas PRO Preamps On Board
Just like the venerable Midas M and PRO series mixers, WING RACK also comes with 24 Midas PRO preamps, delivering the same sweet sound and huge dynamic range.
All the Digital I/O
It’s tiny but uncompromising. The WING RACK has exactly the same number of digital I/O as the full-size WING: AES50, USB, AoIP, StageConnect—you name it.
Your "Source" of Audio
WING stores the configuration (stereo/mono/mid-sides), gain, phantom power, along with a name, an icon, color and tags directly to every input. This combination is called a Source. You can easily edit Sources using your iPad while making the connections on stage.
Channels are automatically configured from the connected Source information and are ready to go. This enables quick setups and on-the-fly adjustments, prevents errors, and makes it easier than ever to manage WING's 370+ inputs. It’s like having your own custom toolbox, where everything you need is perfectly organized and ready to use.

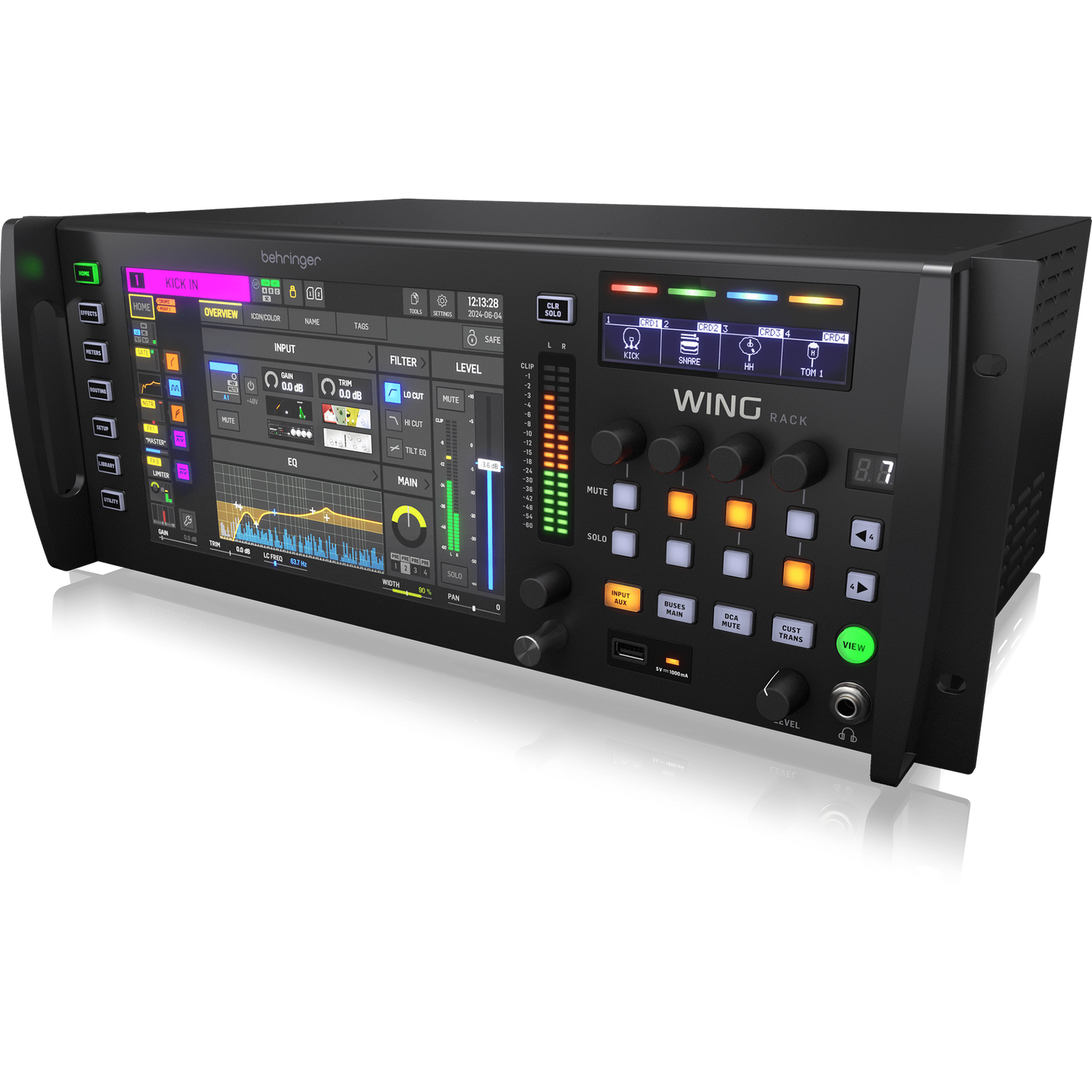

| Product Name | Behringer Wing Rack 48-Channel 28 Bus Full Stereo Digital Mixing Engine |
|---|---|
| Brand | Behringer |
| Condition | New |
| MPN | 0604-AAE86-US1 |
- 24 Midas PRO mic preamps and 8 outputs provide industry-reference sound quality
- Continuously adjustable front panel for comfortable mixing experience when mounted in a rack
- 3 AES50 ports for a total of 144 input and output signals on SuperMac CAT5 connections with ultra-low jitter and 6-sample latency
- 10.1 inch main display with multi-touch screen and adjustable swivel
- 8 buttons and 4 encoders for standard mixing or transport functions, or with Custom Controls to make WING RACK your personal console.
- Integrated USB Audio/MIDI Interface for 48 audio channels in and out
- Dual-SD card live recorder/player with up to 64 tracks and markers for identifying song positions
- Internal AoIP-module can upgrade the Ethernet ports with optional 64 channel audio in and out to Audinate Dante and Waves SoundGrid networks
- 16 True-stereo effects processing engines, with 80+ world-class algorithms
- 3 plug-in slots for Gate, Dynamics and EQ included in every channel. All without reducing any additional effect processing headroom
- 4 main, 8 matrix and 16 aux stereo buses, featuring dual inserts, 8-band parametric EQ's, stereo imager and full dynamics processing, all in a single effect chain
- 40 Stereo Input Channels with 5 variable plug-in processing slots each
- 8 Stereo Aux Input Channels with single FX insert slot, expander/limiter and 4-band parametric EQ
- 8 Mute Groups and 8 DCA's for track grouping and consolidation
- 2 Ethernet ports with integrated switch for networked remote control and optional AoIP through Waves SoundGrid and Dante®
- Rear panel expansion slot can host optional 64-channel audio interface and networking expansion cards, e.g. Dante, WSG, MADI…
- StageConnect Host interface for sharing of up to 32 channels in either direction via single XLR connection
- 4 additional phones outputs with hi-performance headphone amplifiers for IEM applications
- 4 channel GPIO for controlling almost anything with WING
- 5-Pin MIDI in and out for control and synchronization with external devices
- DAW Remote Control compatible with Mackie Control Universal (MCU) and presets for Cubase, Ableton Live, Logic X, Nuendo, ProTools, Reaper, Studio One
- Offline editing and remote control via WING-CoPilot, WING-Q and WING-Edit Softwares for Desktop and Mobile
- 19" rack-mountable with 4HU form-factor
Input/Output Characteristics |
|
| Frequency response @ 48 kHz sample rate | 10 Hz - 20 kHz, 0 to -1 dB (any gain setting) |
| Dynamic range, analog in to analog out (typical), XLR / aux | 111 dB / 108 dB |
| A/D dynamic range, preamplifier and converter (typical), XLR / aux | 112 dB / 110 dB |
| D/A dynamic range, converter and output (typical), XLR / aux | 118 dB / 112 dB |
| Crosstalk rejection @ 1 kHz, adjacent channels | 100 dB |
| Output level, XLR connectors (nominal / maximum) | +4 dBu / +21 dBu |
| Output impedance, XLR connectors (unbalanced / balanced) | 75 Ω / 75 Ω |
| Input impedance, TRS connectors (unbalanced / balanced) | 20 kΩ / 40 kΩ |
| Non-clip maximum input level, TRS connectors | +16 dBu |
| Aux output level, TRS (nominal / maximum) | +4 dBu / +16 dBu |
| Aux output impedance, TRS (unbalanced / balanced) | 150 Ω / 300 Ω |
| Phones output impedance / maximum output level | 1W Max @ 30 Ohm |
| Residual noise level, XLR out 1-16 connectors, unity gain | -97 dBu |
| Residual noise level, aux and monitor TRS out connectors | -95 dBu |
Displays |
|
| Main screen | 10.1" TFT LCD, 1280 x 800 px, capacitive touch |
| Main screen swivel, continuous adjustment | 15° - 60° |
| 4-channel group LCD screen with RGB color strip per channel | 320 x 48 monochrome |
Controls |
|
| Touch-sensitive rotary controls | 4 |
| Custom controls | 8 |
| Fully assignable rotary controls | 4 |
| Fully assignable backlit buttons | 8 + 8 |
| Variable rotary controls / buttons | 4 / 4 |
Power |
|
| Switch-mode power supply | Auto-ranging 100-240 VAC (50/60 Hz) |
| Power consumption | 130 W |
Physical |
|
| Standard operating temperature range | 5°C – 40°C (41°F – 104°F) |
| Dimensions (HxWxD) | 48.6 x 32.6 x 18.3 cm |
| Weight | 9.44 kg |
