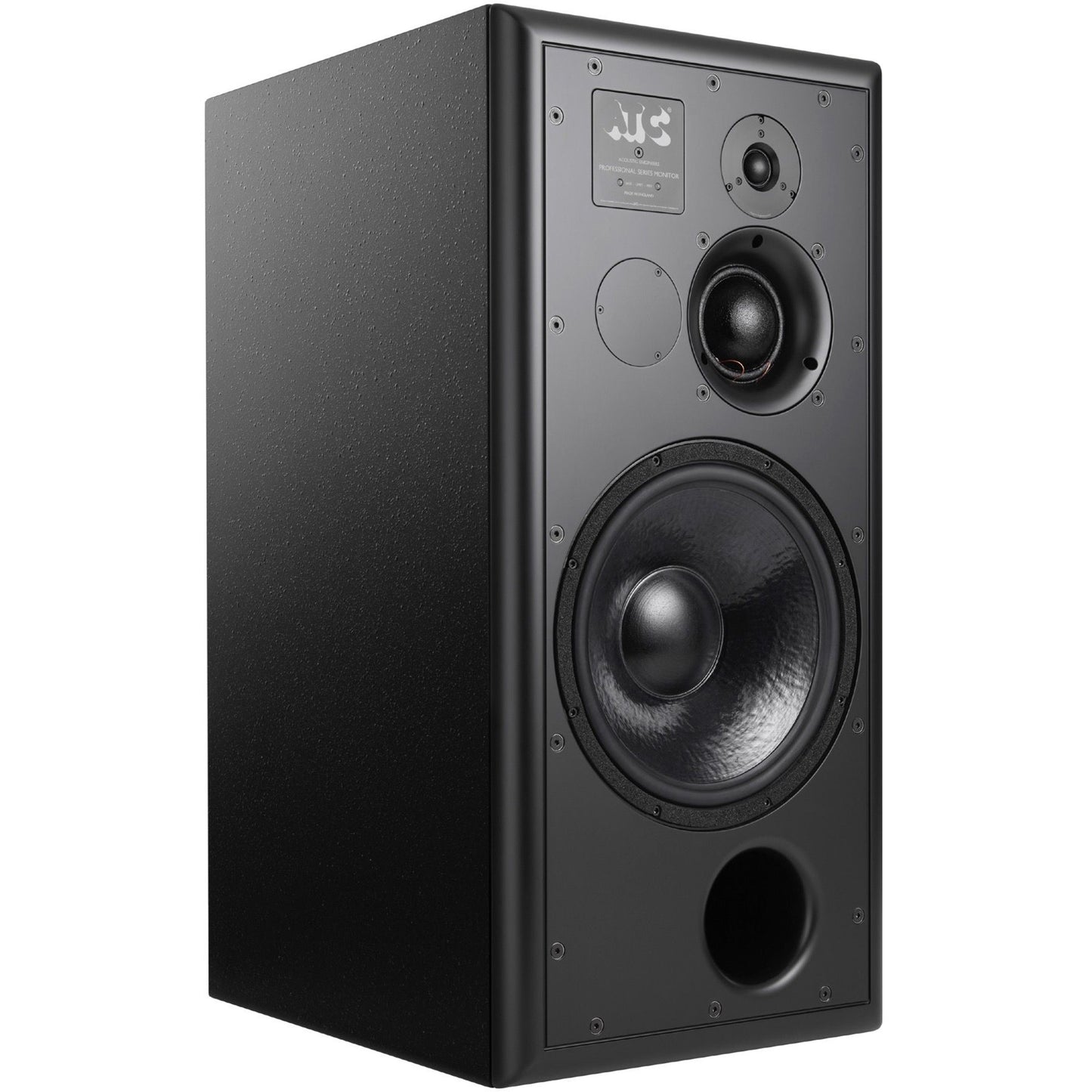

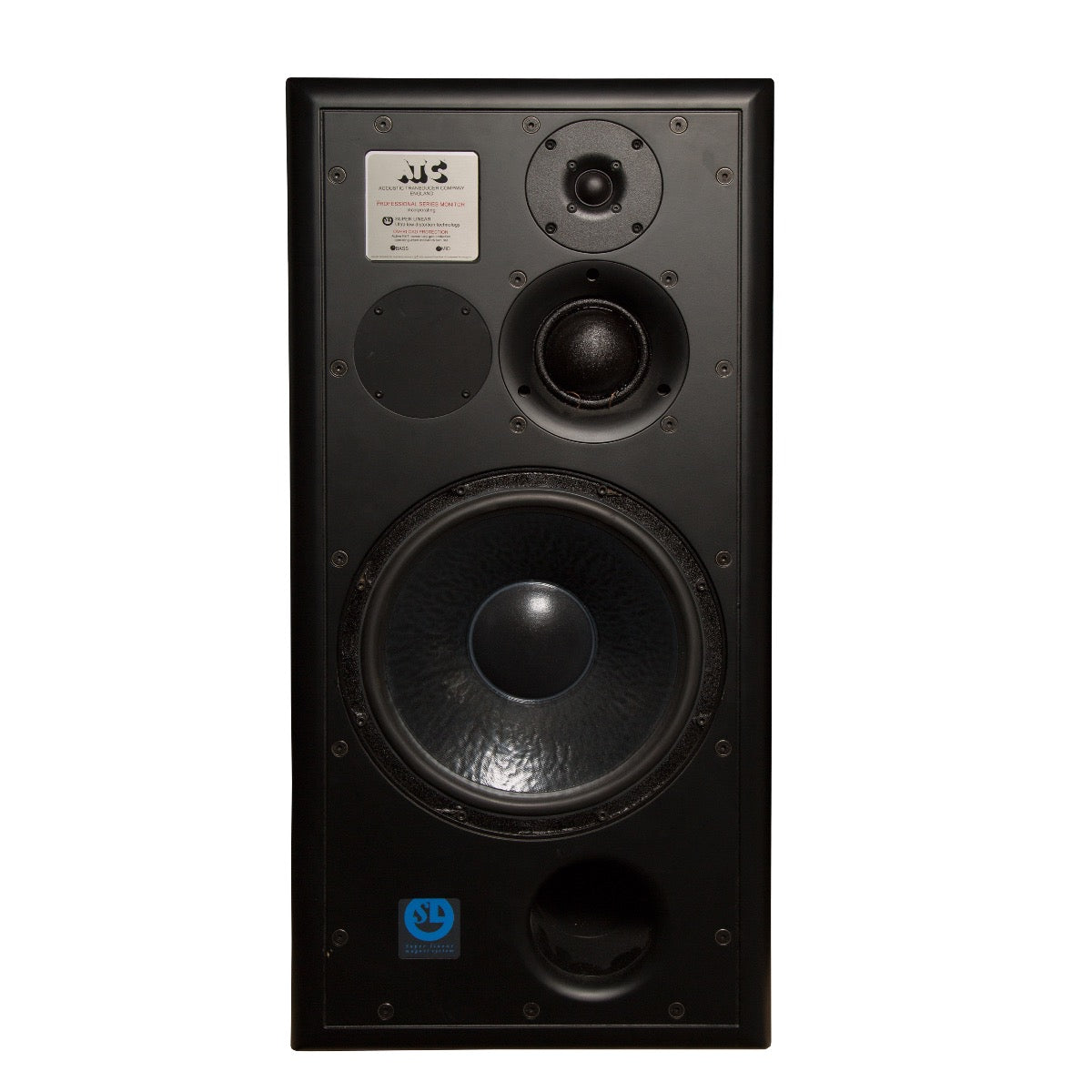

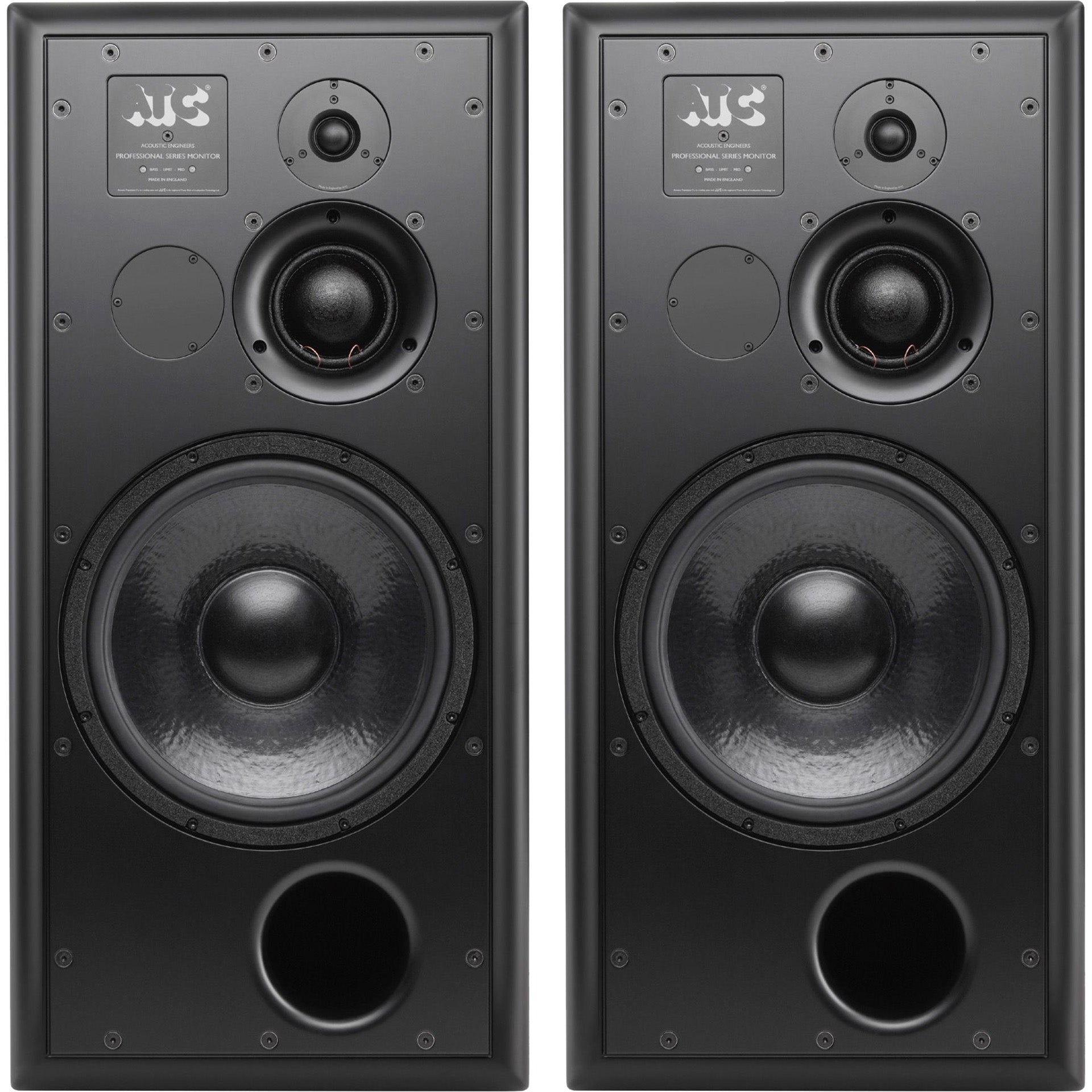

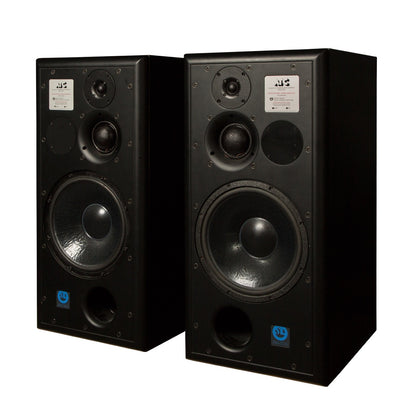

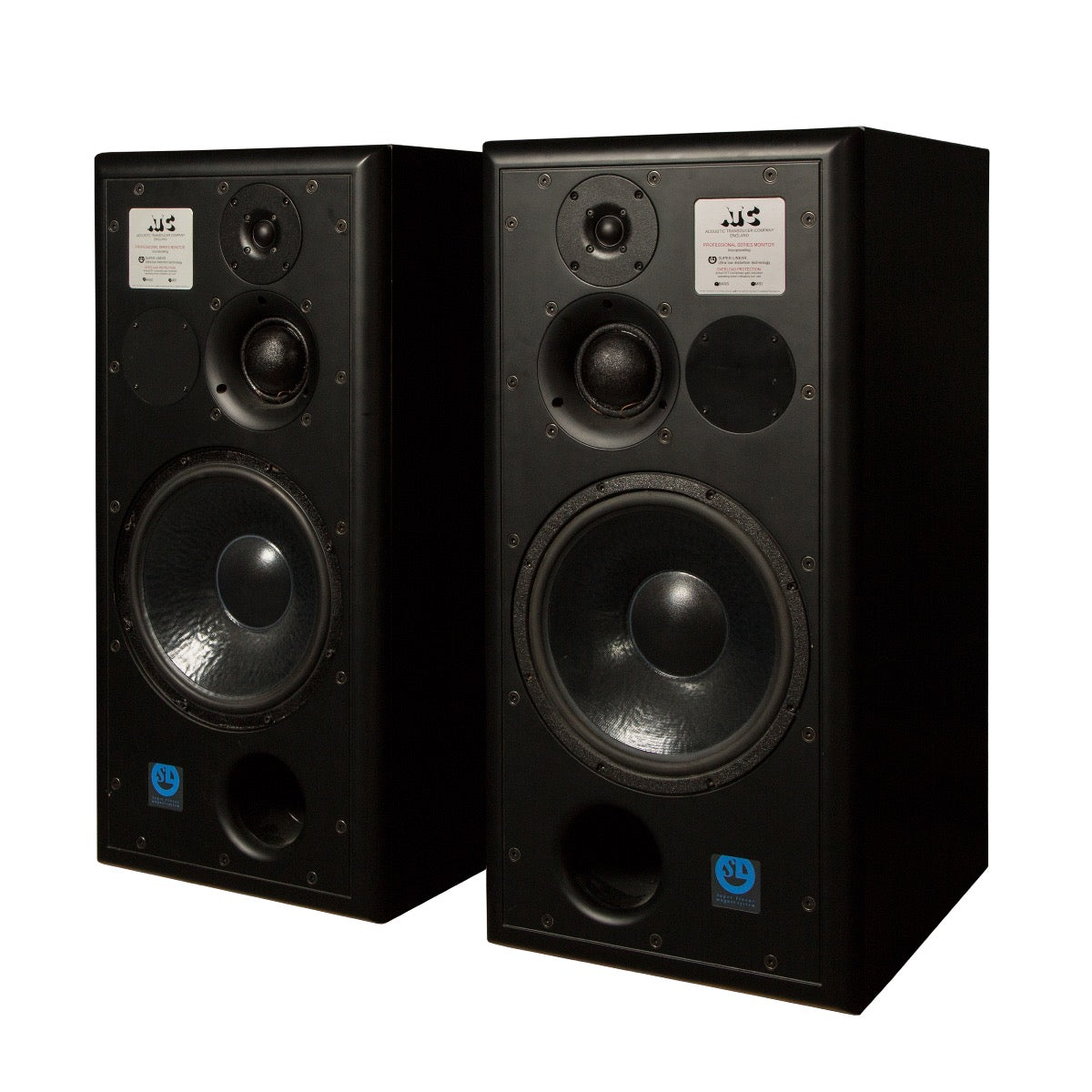

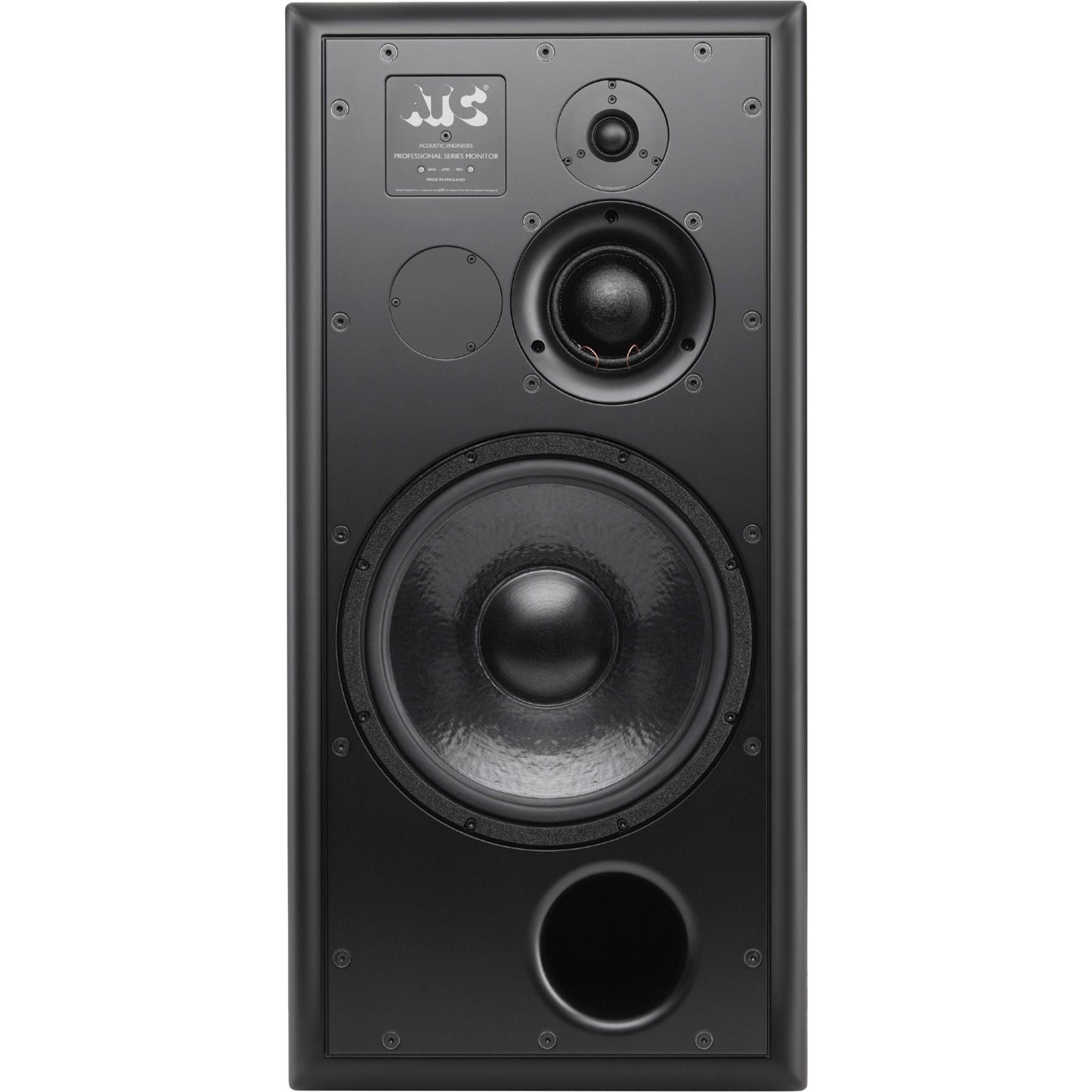

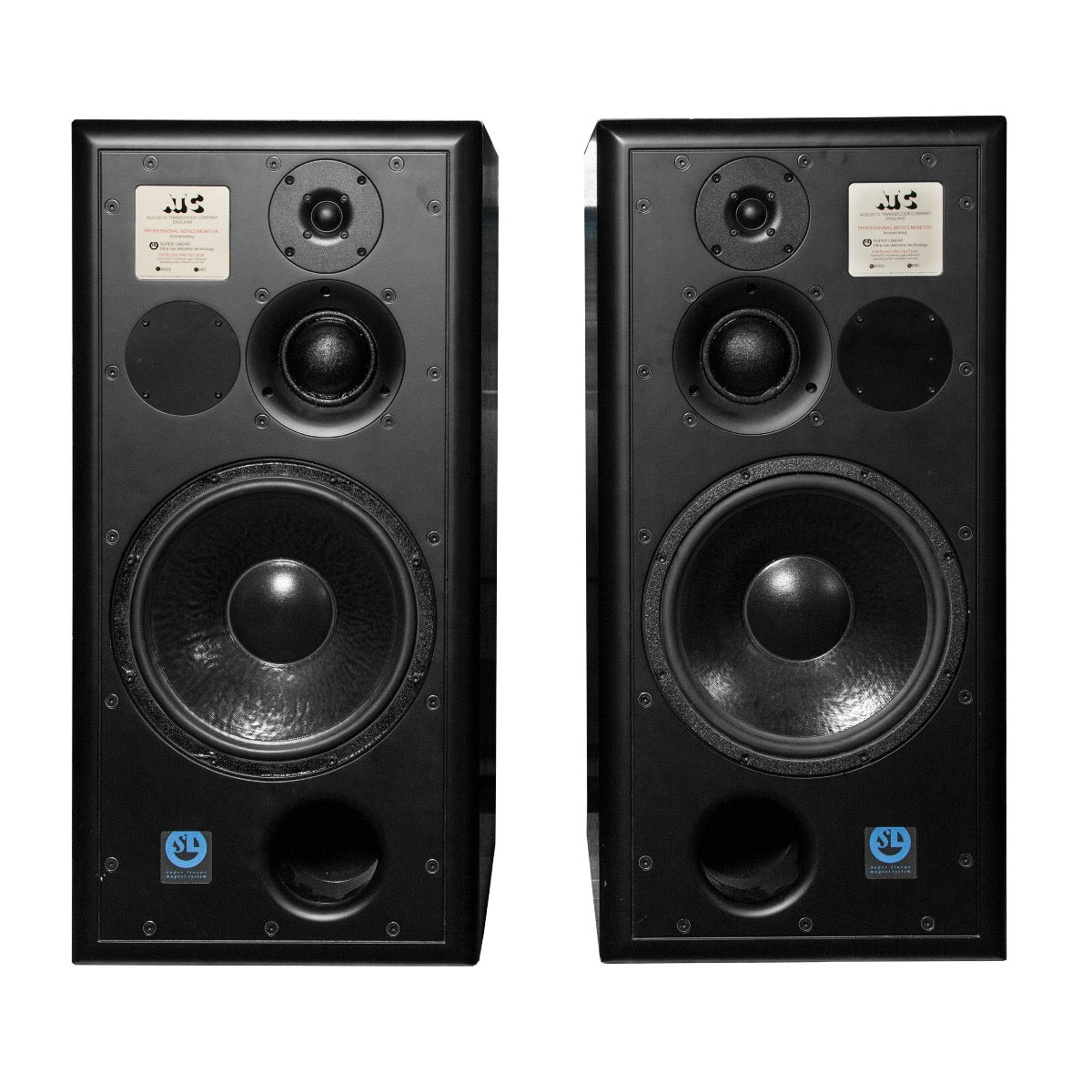

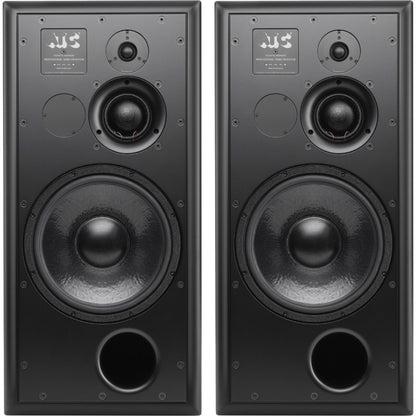

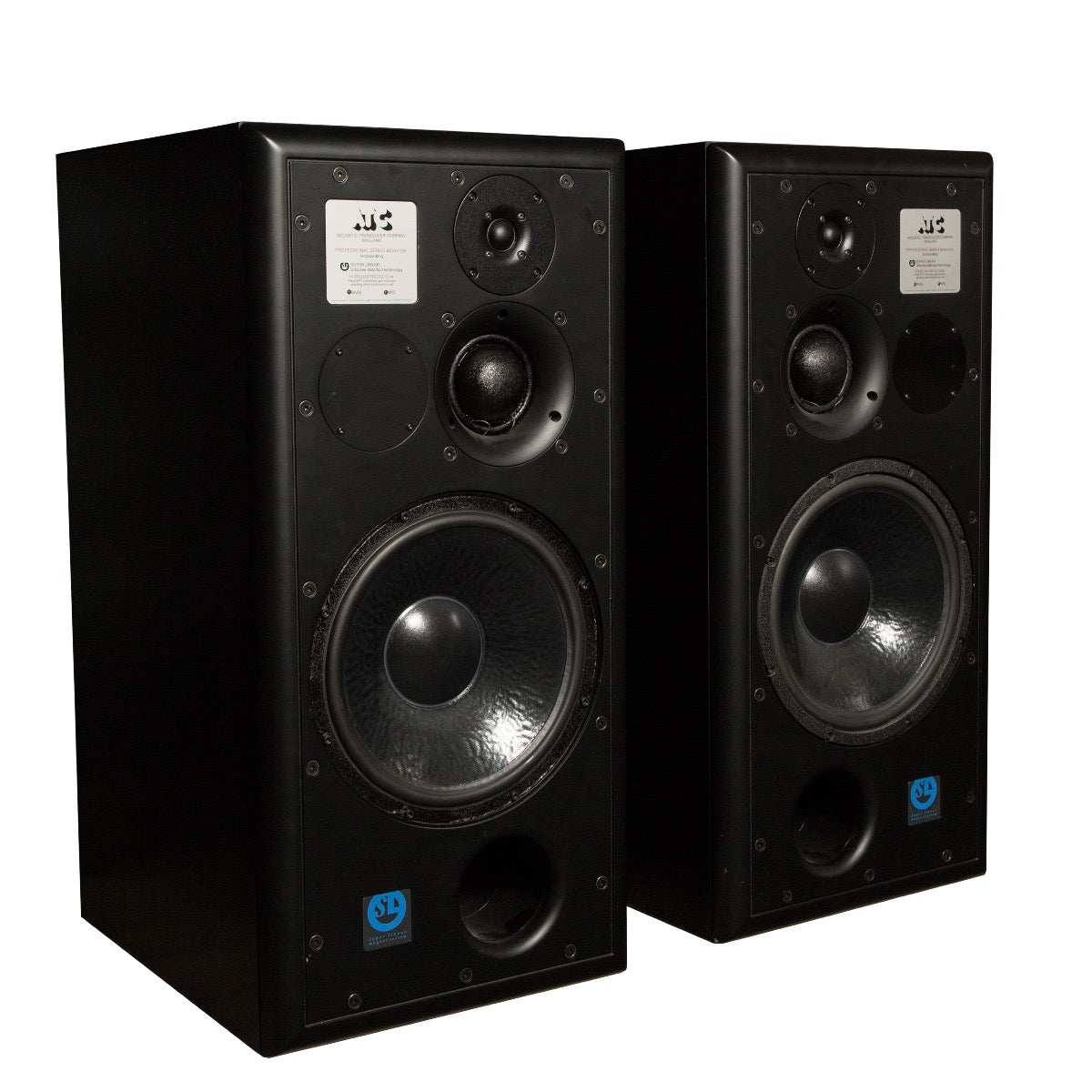

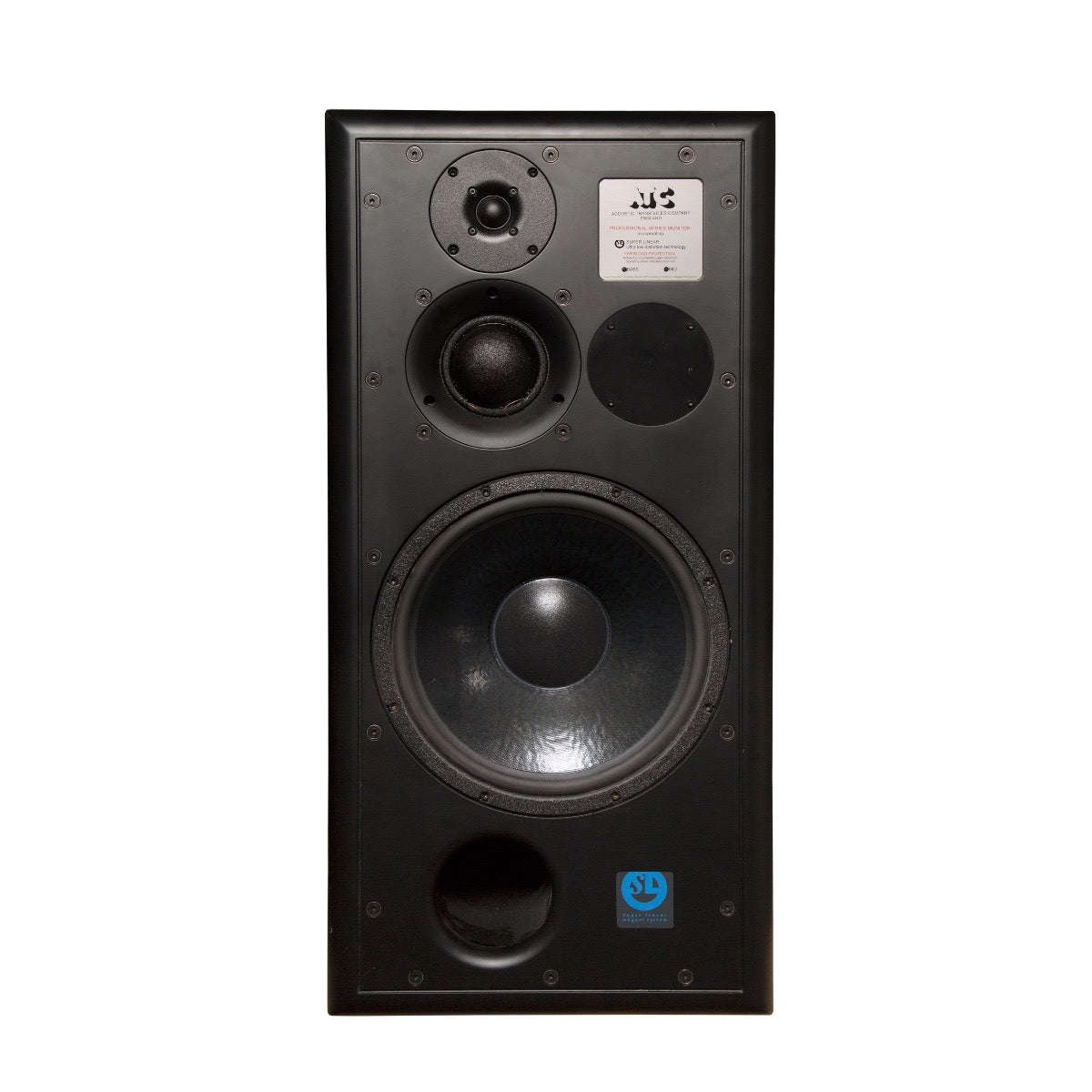

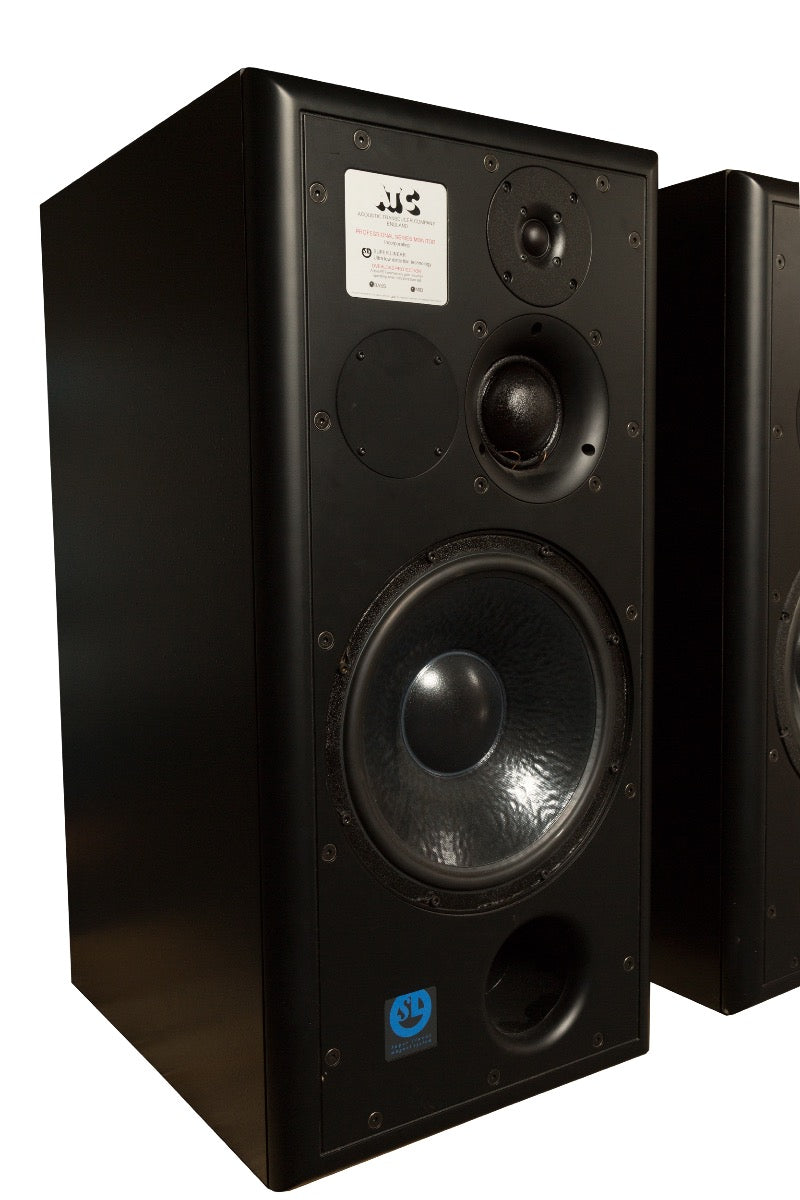

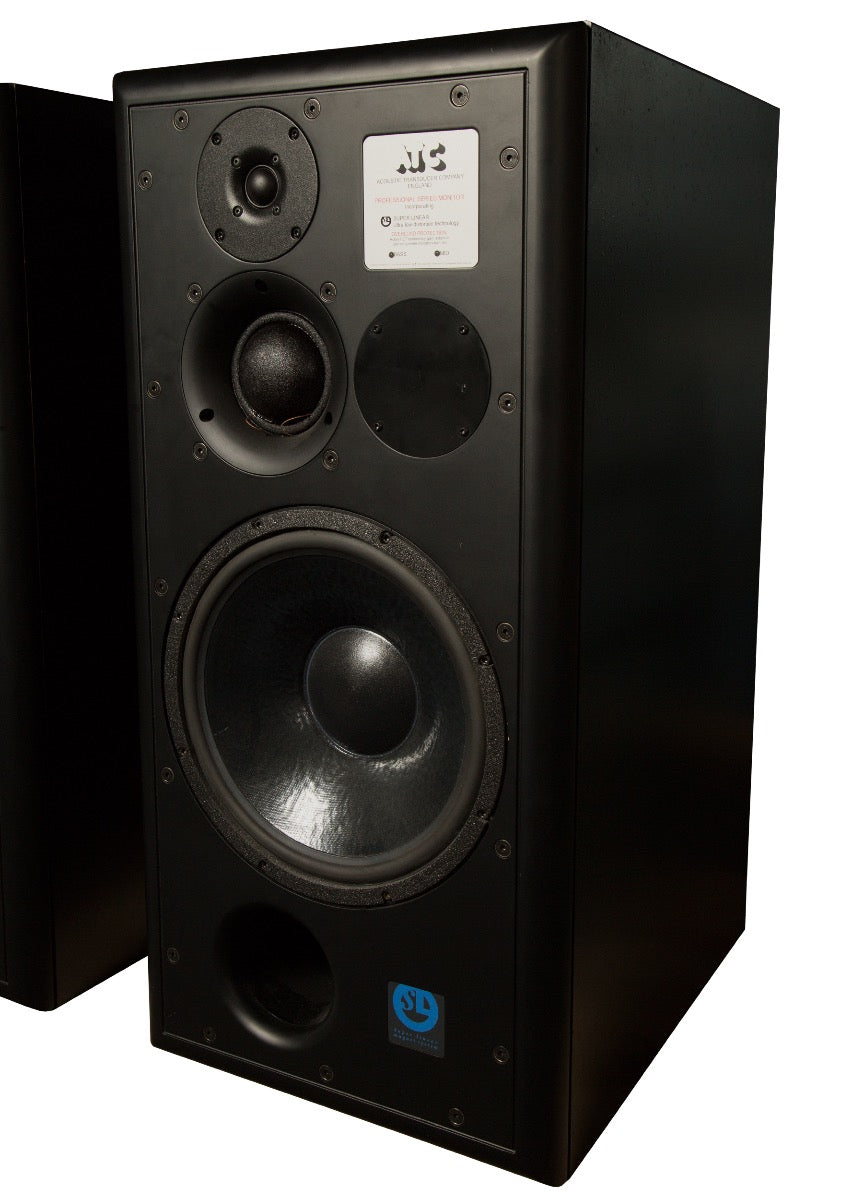

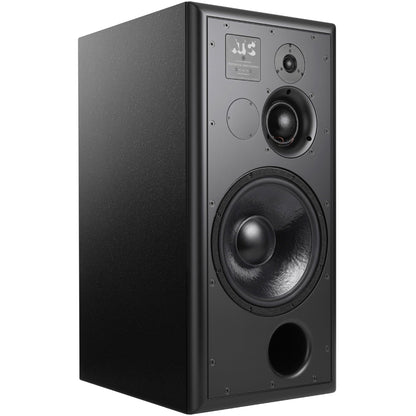

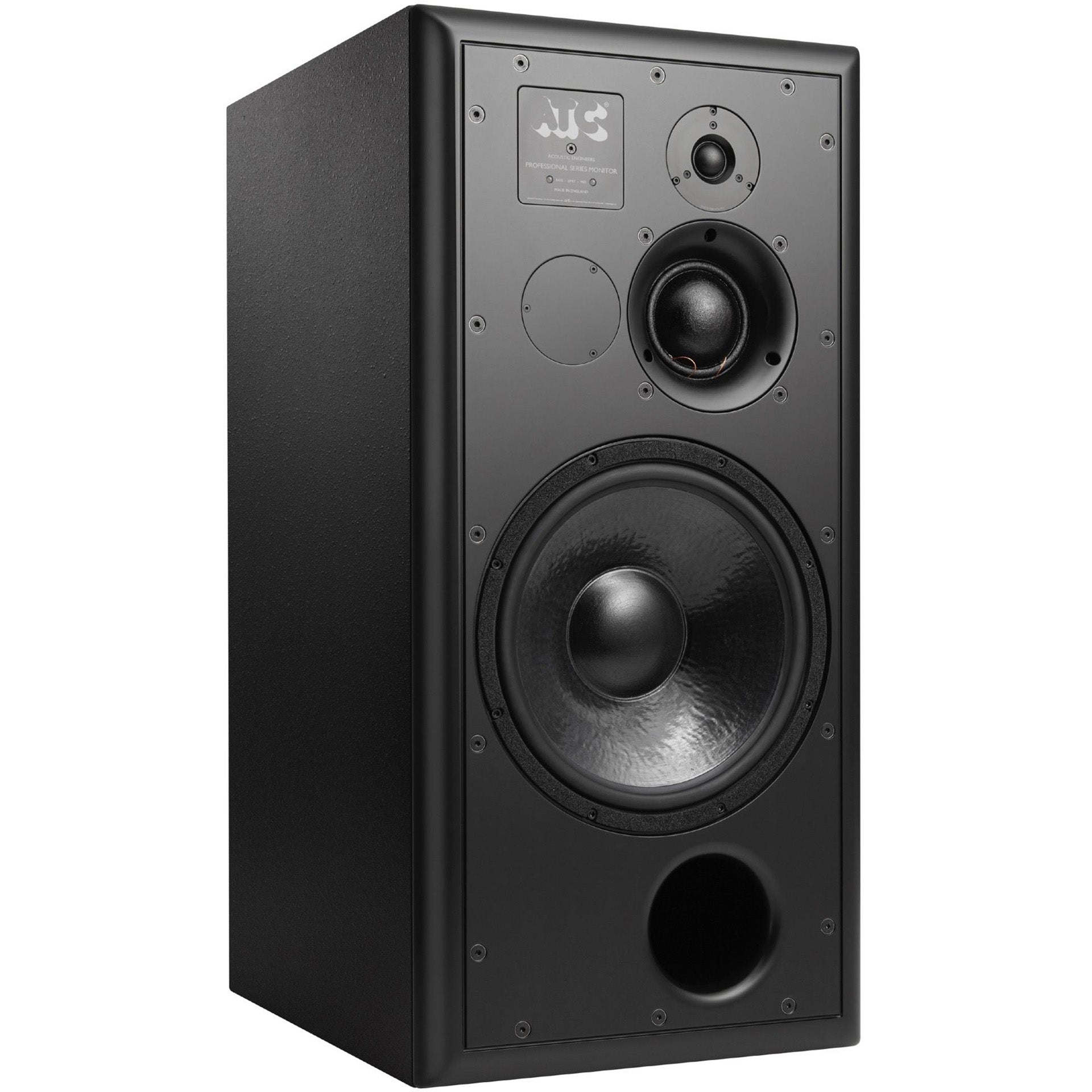

ATC SCM100ASL Pro Active 12 in 3 way Monitor Speakers Pair
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Full “SL” spec 12˝/314mm bass driver.
- ATC 3″/75mm “Super Dome” mid driver.

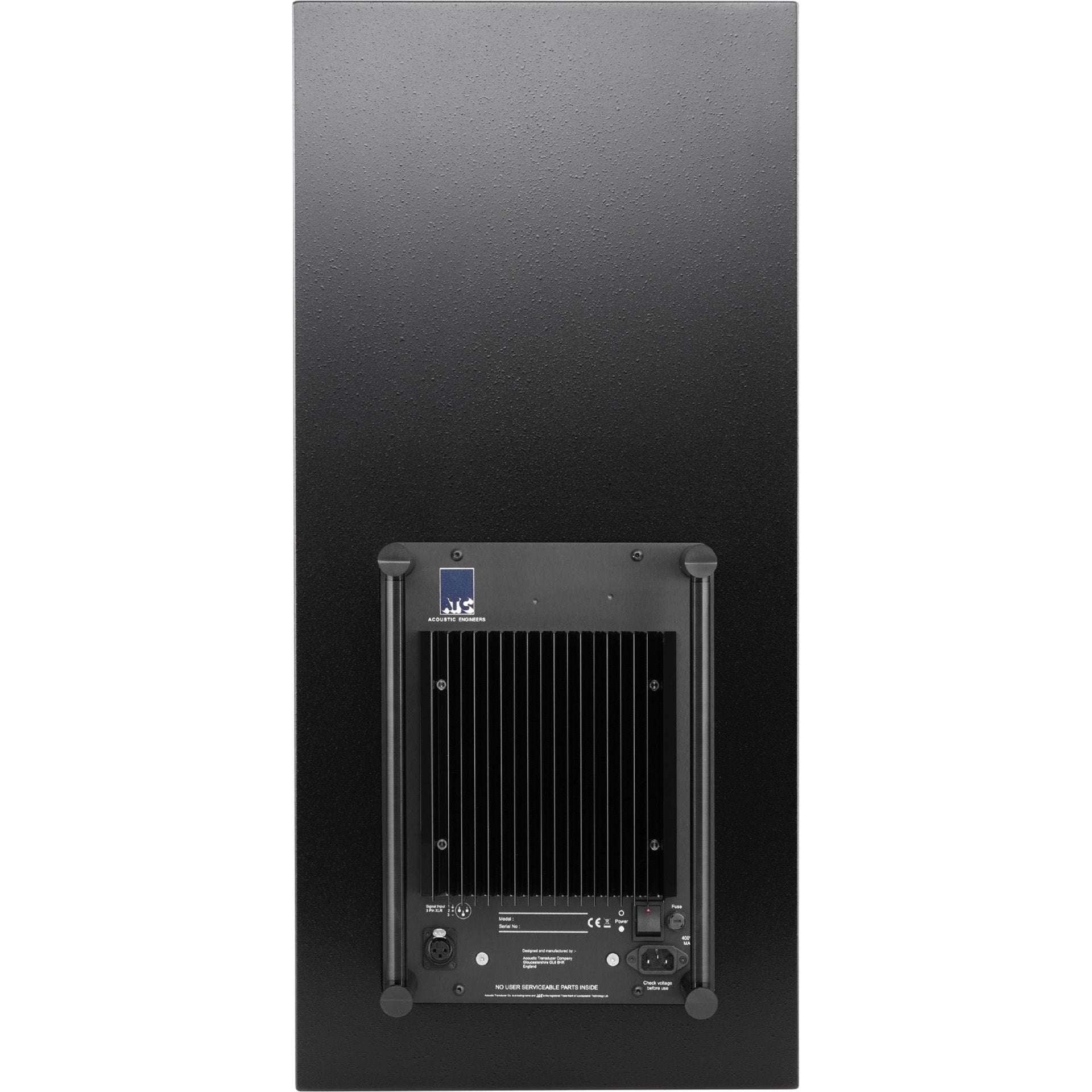

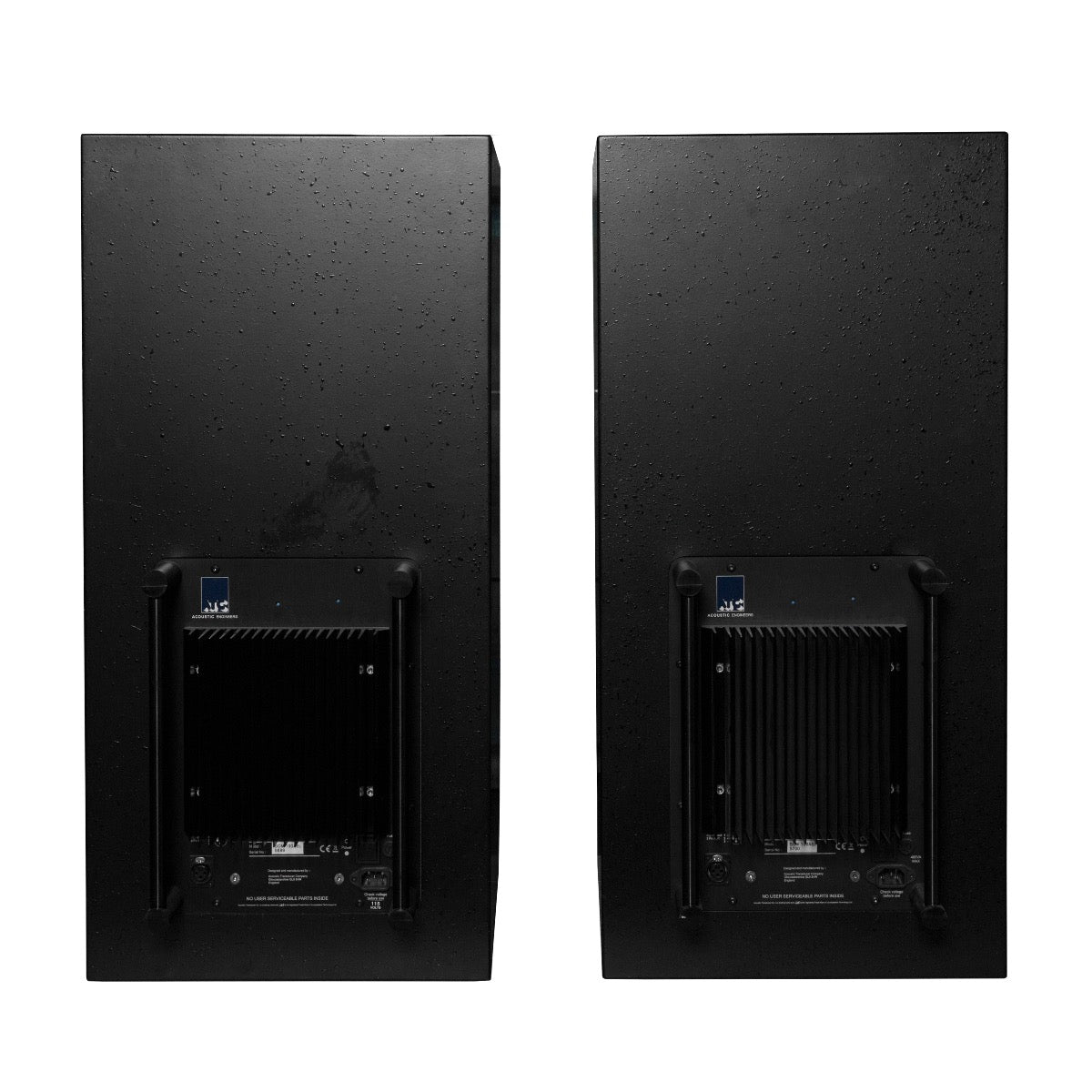

- On board grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
| Product Name | ATC SCM100ASL Pro Active 12 In 3-Way Monitor Pair |
|---|---|
| Brand | ATC Loudspeakers |
| Condition | New |
| Shipping Option | Free Shipping on orders over $94.72 |
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz

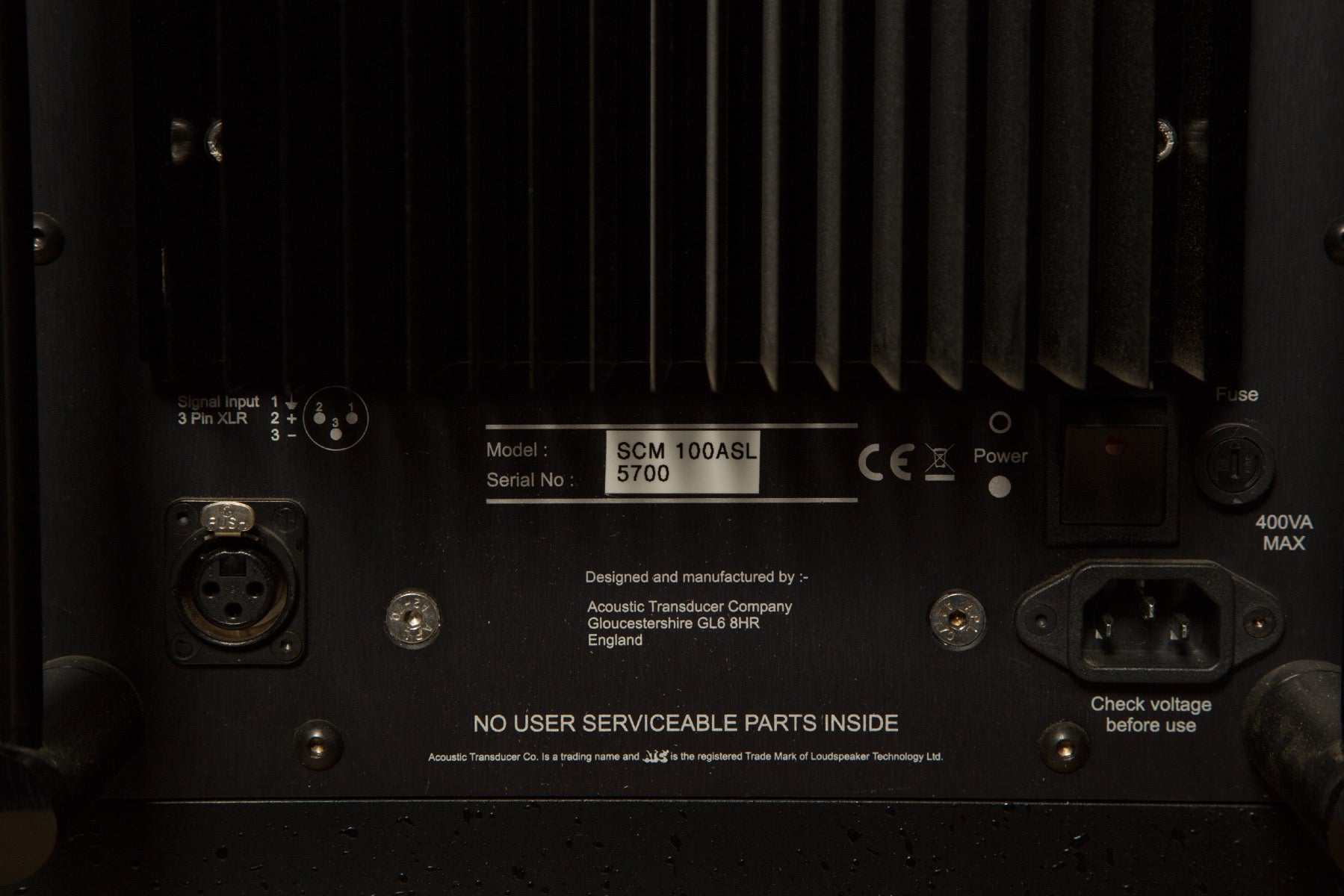

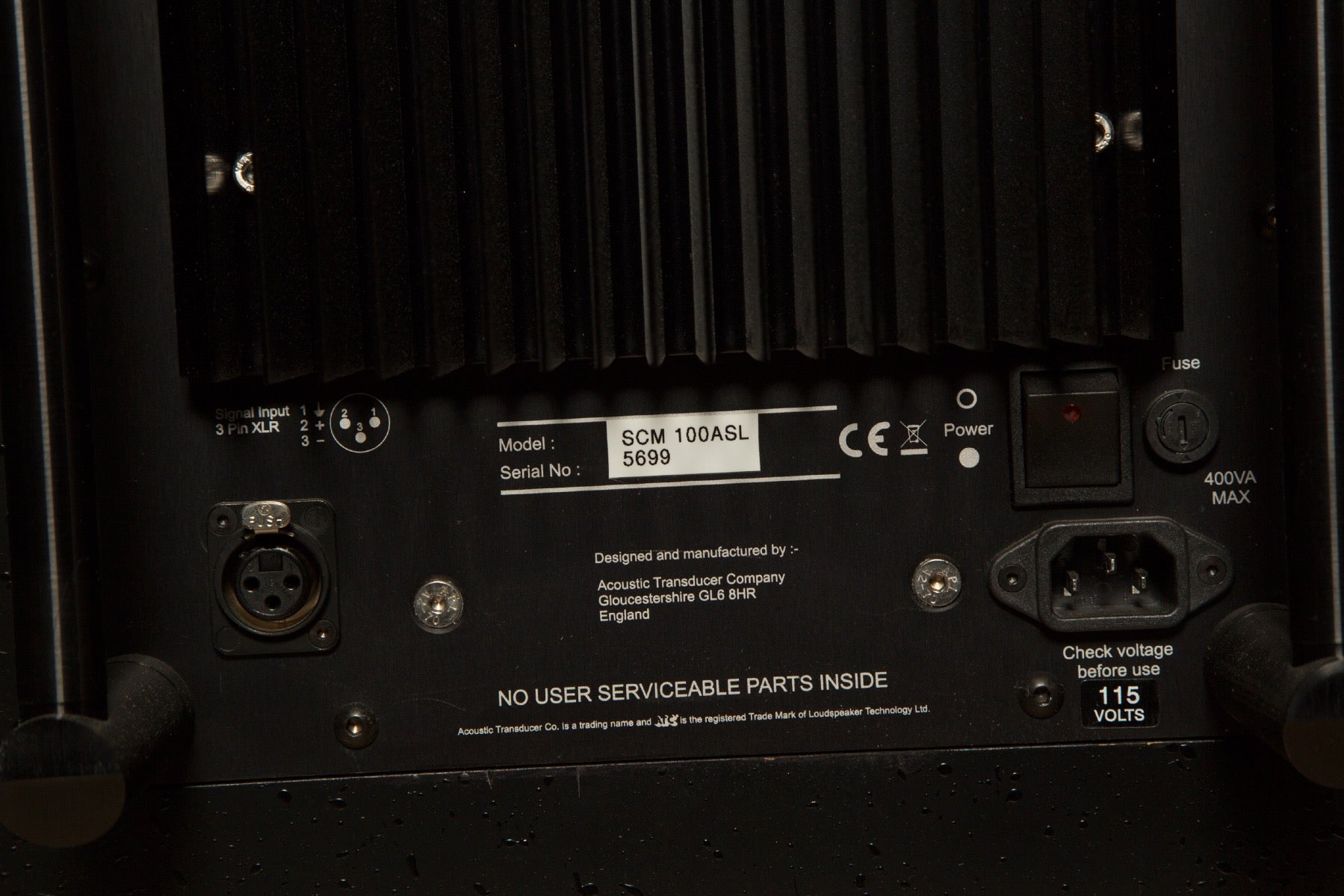

Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)

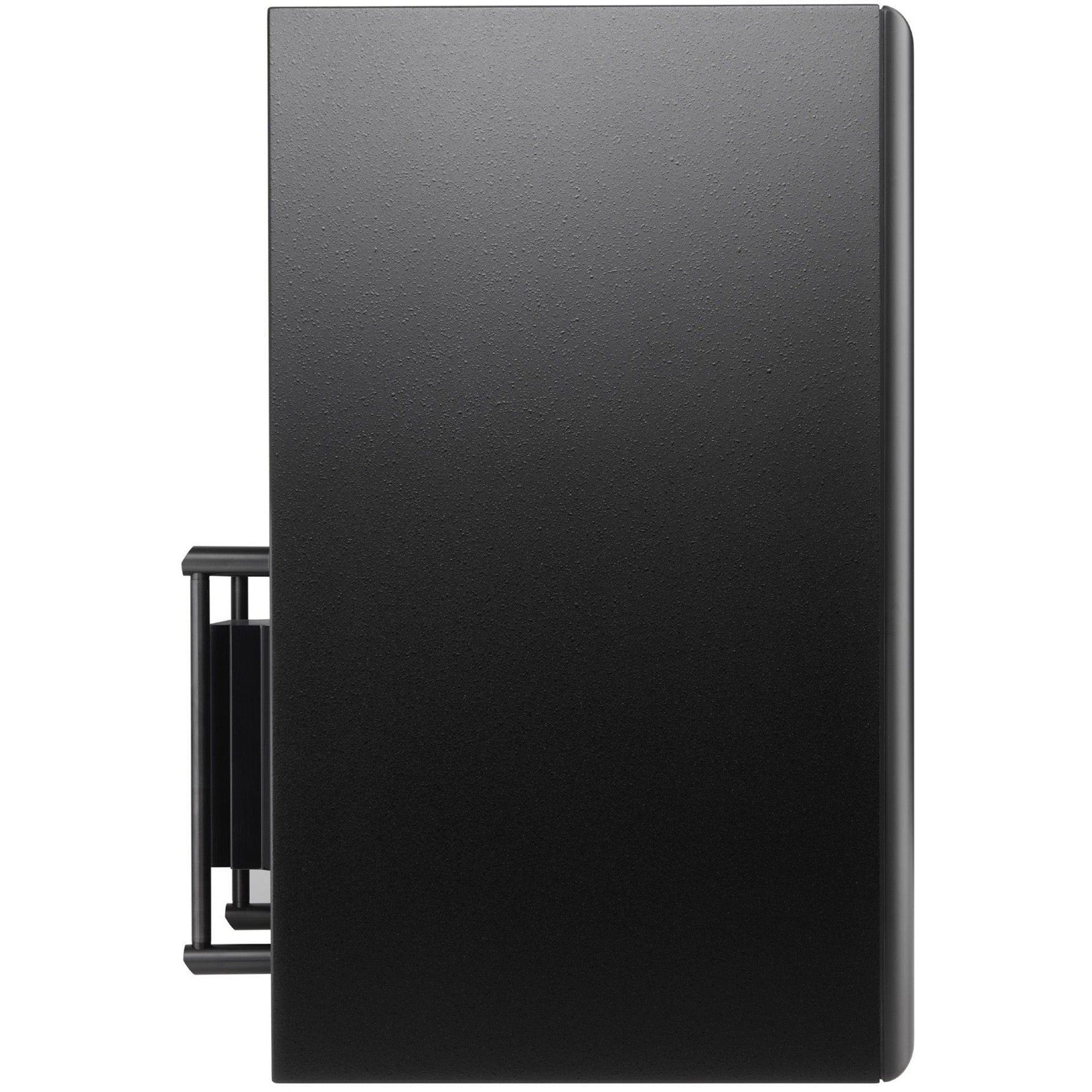

Dimensions (HxWxD): 832 x 398 x 581mm (32.8Ë x 15.7Ë x 22.9Ë) Depth with amplifier at rear adds 3Ë
Weight: 65kg / 143lbs
ATC SCM100ASL Pro Active 12 In 3-Way Monitor Pair
ATC SCM100ASL Pro Active 12 in 3 way Monitor Speakers Pair
- ATC 25mm/1” Dual Suspension ‘S-Spec’ Tweeter.
- Full “SL” spec 12˝/314mm bass driver.
- ATC 3″/75mm “Super Dome” mid driver.
- On board grounded source 350W Tri-amp pack.
- LF contour control.
- Clip indication.
- 6 year warranty.
| Product Name | ATC SCM100ASL Pro Active 12 In 3-Way Monitor Pair |
|---|---|
| Brand | ATC Loudspeakers |
| Condition | New |
| Shipping Option | Free Shipping on orders over $94.72 |
Drivers: HF 1″/25mm, Mid 3″/75mm, LF 12″/314mm
Amplitude Linearity (±2dB): 65Hz-17kHz
Cut-off Frequencies (-6dB, free-standing): 32Hz, 22kHz
Horizontal Dispersion: ±80°, Coherent
Vertical Dispersion: ±10°, Coherent
Max. Continuous SPL (1 metre): 115dB
Crossover Frequencies: 380Hz, 3.5kHz
Input Connectors: Male XLR
Input Sensitivity: 1V
Input Sensitivity Trim: 0dB to -6dB/1V – 2V (continuously variable via rear panel trimmer)
Input Impedance: Balanced > 10kΩ
Amplifier Output: Bass 200W, Mid 100W, High 50W
Filters: Even Order Critically Damped
Overload Protection: Active FET momentary gain reduction plus thermal tweeter protection
Front Panel Indicators: Power On indicator, Gain Reduction warning
LF EQ: 0dB to+6dB @ 40Hz (continuously variable via rear panel trimmer)
Dimensions (HxWxD): 832 x 398 x 581mm (32.8Ë x 15.7Ë x 22.9Ë) Depth with amplifier at rear adds 3Ë
Weight: 65kg / 143lbs
