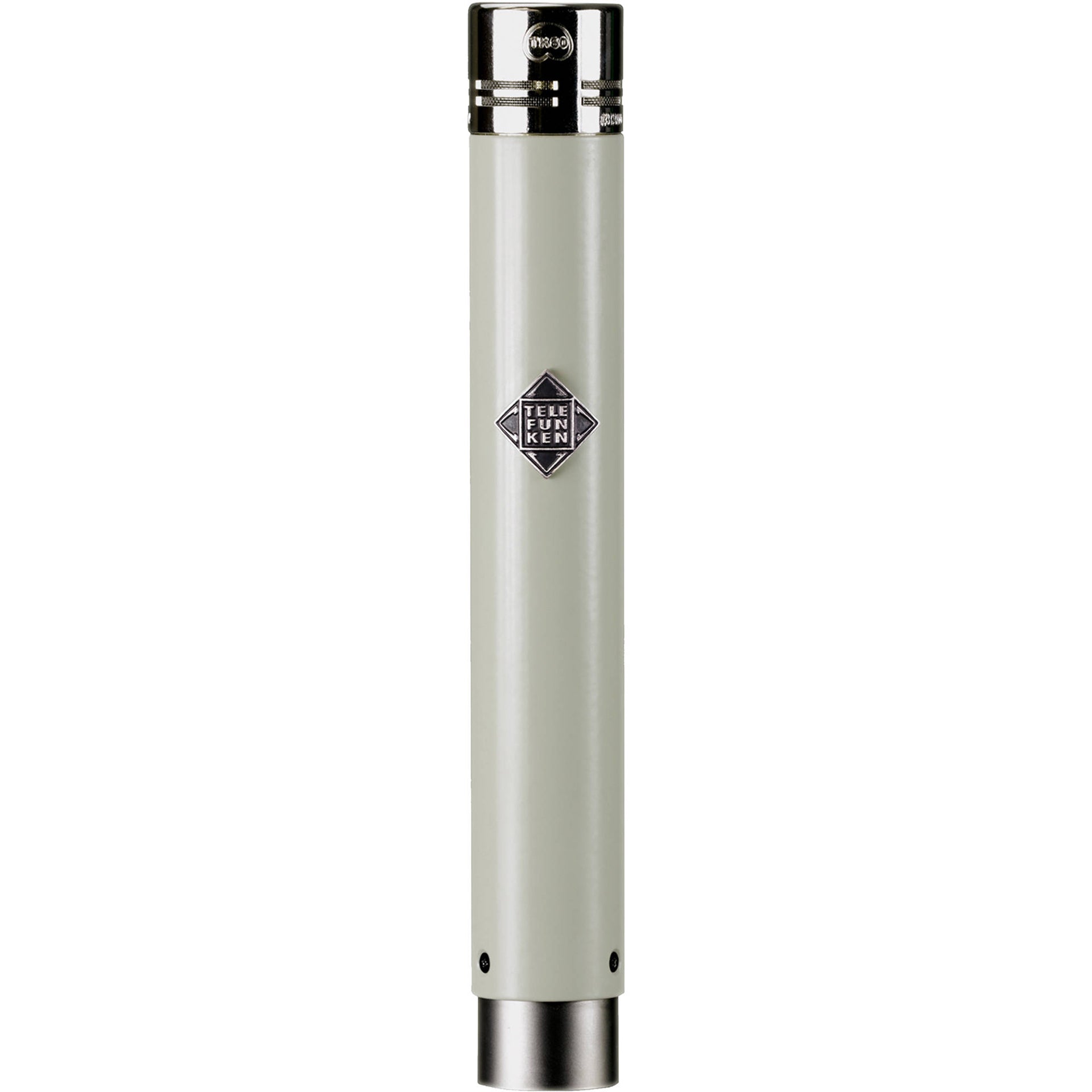

TELEFUNKEN Elektroakustiks small diaphragm ELA M 260 features a circuit design based around a premium NOS (New Old Stock) EF732 vacuum tube and a custom output transformer. In use, the ELA M 260 captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Ideal for acoustic guitar, string instruments, piano and percussion. ELA M 260 Master Set system packages are supplied with interchangeable TK60 cardioid, TK61 Omnidirectional and TK62 Hypercardioid capsules. With all three capsules the user can have the flexibility to record their source material in any way they wish.
| Product Name | Telefunken ELA M 260 Master Set Small-diaphragm Tube Condenser Microphone |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |

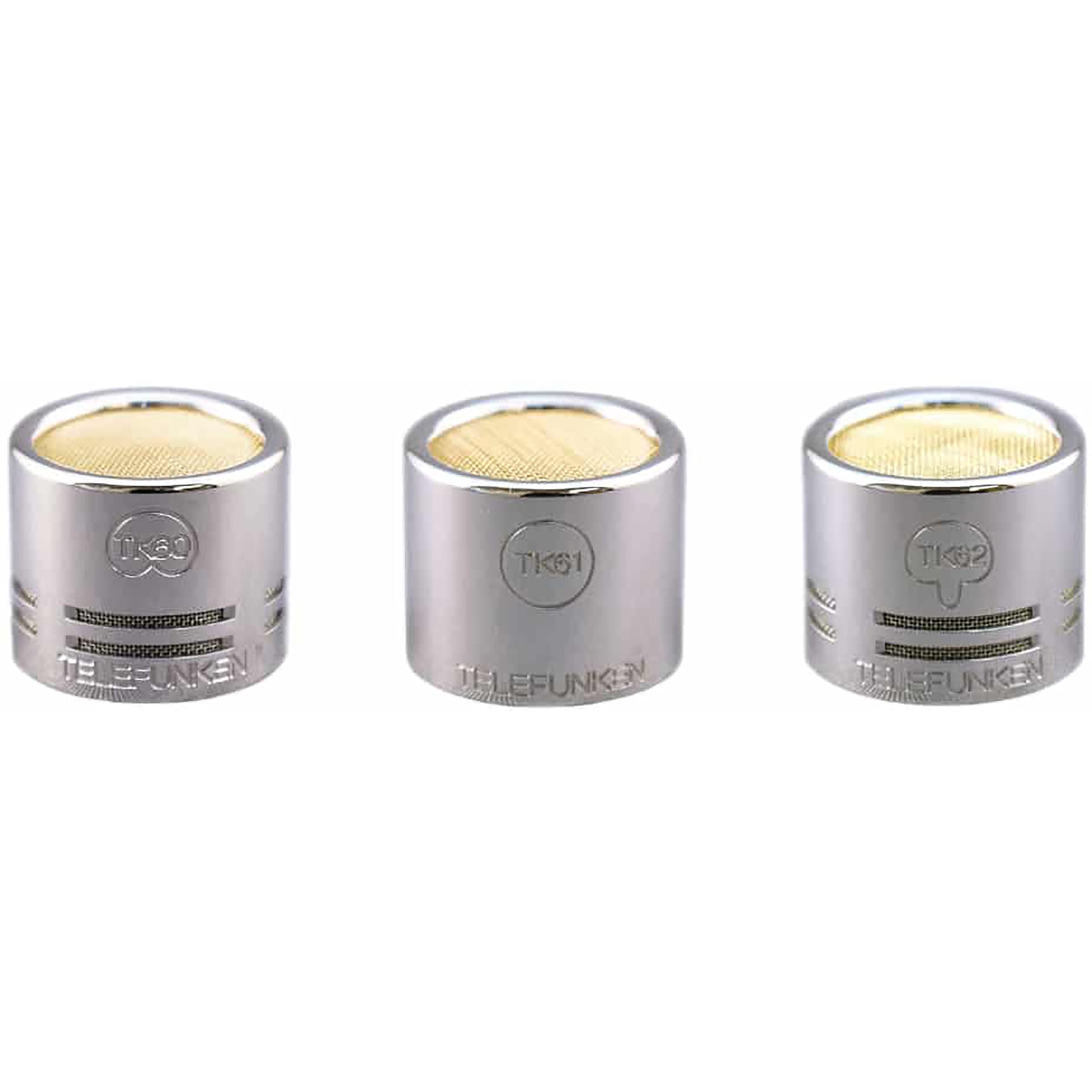

- ELA M 260 Master Set system packages are supplied with interchangeable TK60 cardioid, TK61 Omnidirectional and TK62 Hypercardioid capsules
- Tube type: NOS EF732 / 5840W
- Custom Wound TELEFUNKEN T60 transformer
- 20 Hz - 20 kHz
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Hypercardioid |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on |
| Tube | NOS Philips 5840W |
| Transformer | TELEFUNKEN Elektroakustik T60 |
| Sensitivity | 16.5 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.15% |
| Output Impedance | 200 Ω |
| Maximum SPL (for 1% THD) | 135 dB |
| S/N Ratio | 83 dBA |
| Self Noise (Amplifier) | 11 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 116 g |

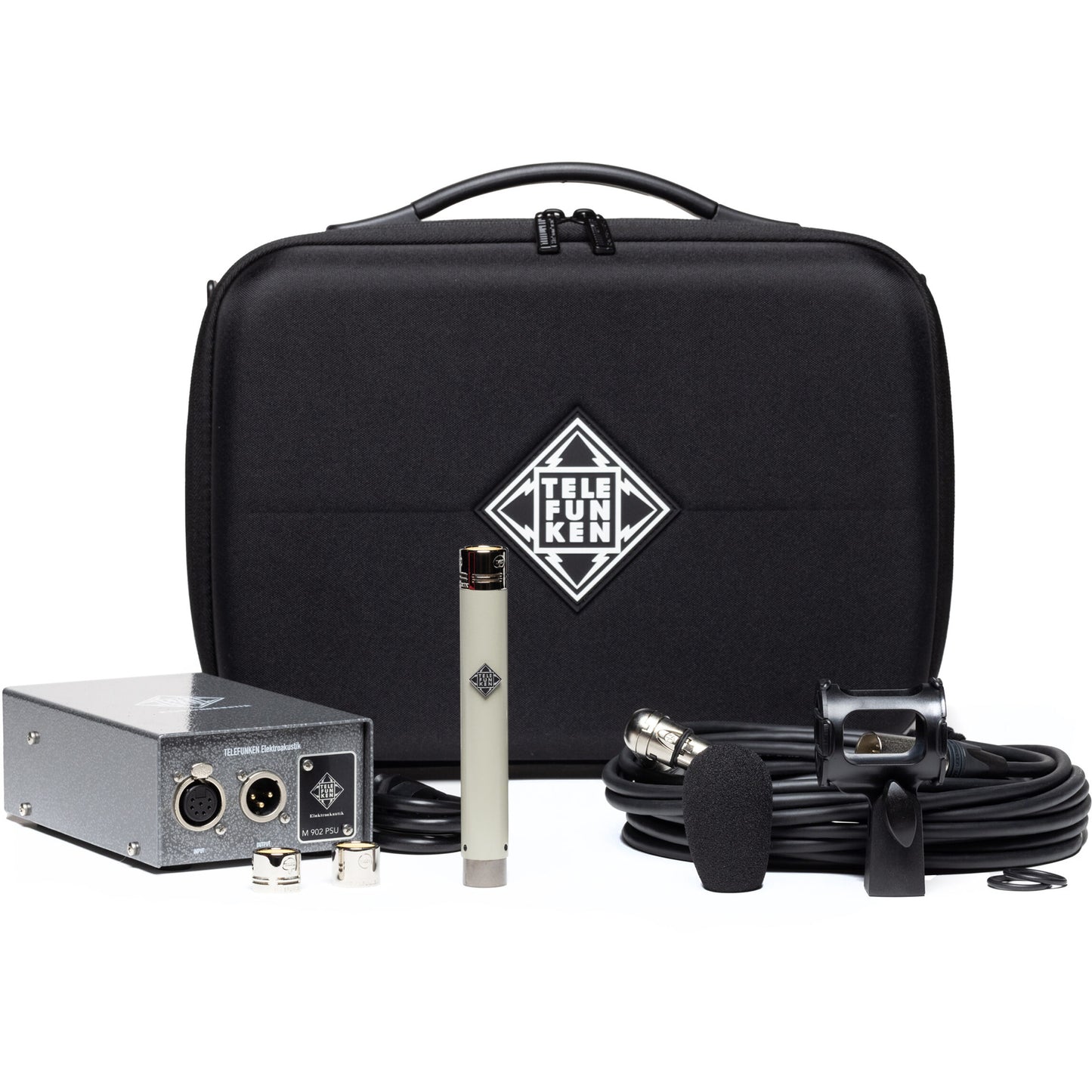

| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case |
Telefunken ELA M 260 Master Set Small-diaphragm Tube Condenser Microphone
TELEFUNKEN Elektroakustiks small diaphragm ELA M 260 features a circuit design based around a premium NOS (New Old Stock) EF732 vacuum tube and a custom output transformer. In use, the ELA M 260 captures sources with a natural presence, making it a fantastic tool for recording acoustic instruments of all types. Ideal for acoustic guitar, string instruments, piano and percussion. ELA M 260 Master Set system packages are supplied with interchangeable TK60 cardioid, TK61 Omnidirectional and TK62 Hypercardioid capsules. With all three capsules the user can have the flexibility to record their source material in any way they wish.
| Product Name | Telefunken ELA M 260 Master Set Small-diaphragm Tube Condenser Microphone |
|---|---|
| Shipping Option | Free Shipping to the Continental U.S. |
- ELA M 260 Master Set system packages are supplied with interchangeable TK60 cardioid, TK61 Omnidirectional and TK62 Hypercardioid capsules
- Tube type: NOS EF732 / 5840W
- Custom Wound TELEFUNKEN T60 transformer
- 20 Hz - 20 kHz
| Type | Vacuum Tube Condenser |
| Polar Pattern | Cardioid, Omnidirectional, Hypercardioid |
| Frequency Range | 20 Hz – 20 kHz, ±3 dB |
| Power Source | External Power Supply |
| Capsule | TK60, TK61, TK62 – Edge Terminated Small Diaphragm, Thread-on |
| Tube | NOS Philips 5840W |
| Transformer | TELEFUNKEN Elektroakustik T60 |
| Sensitivity | 16.5 mV/Pa, ±1 dB |
| THD at 1kHZ at 1Pa (Amplifier) | < 0.15% |
| Output Impedance | 200 Ω |
| Maximum SPL (for 1% THD) | 135 dB |
| S/N Ratio | 83 dBA |
| Self Noise (Amplifier) | 11 dBA |
| Dimensions | 140 mm L x 20 mm Dia |
| Weight | 116 g |
| Included Accessories | Tube Mic Cable, Power Supply, Shock Mount, Foam Windscreen, Carrying Case |
