Galaxy Audio ASWSS11T Wireless Speaker System

Galaxy Audio ASWSS11T Wireless Speaker System

Limited quantities available!

View full details
  • Details
  • Features
  • Tech Specs
  • Reviews

AC to AC System

The AS-WSS11T will transmit an audio signal from one location to another wirelessly. Whether you need to get audio outside or to an overflow room, the AS-WSS11T can help. Both the transmitter (AS-1100T) and receiver (DHTR) are rack mountable, include rack ears, and are AC operated. This system offers 120 selectable channels.

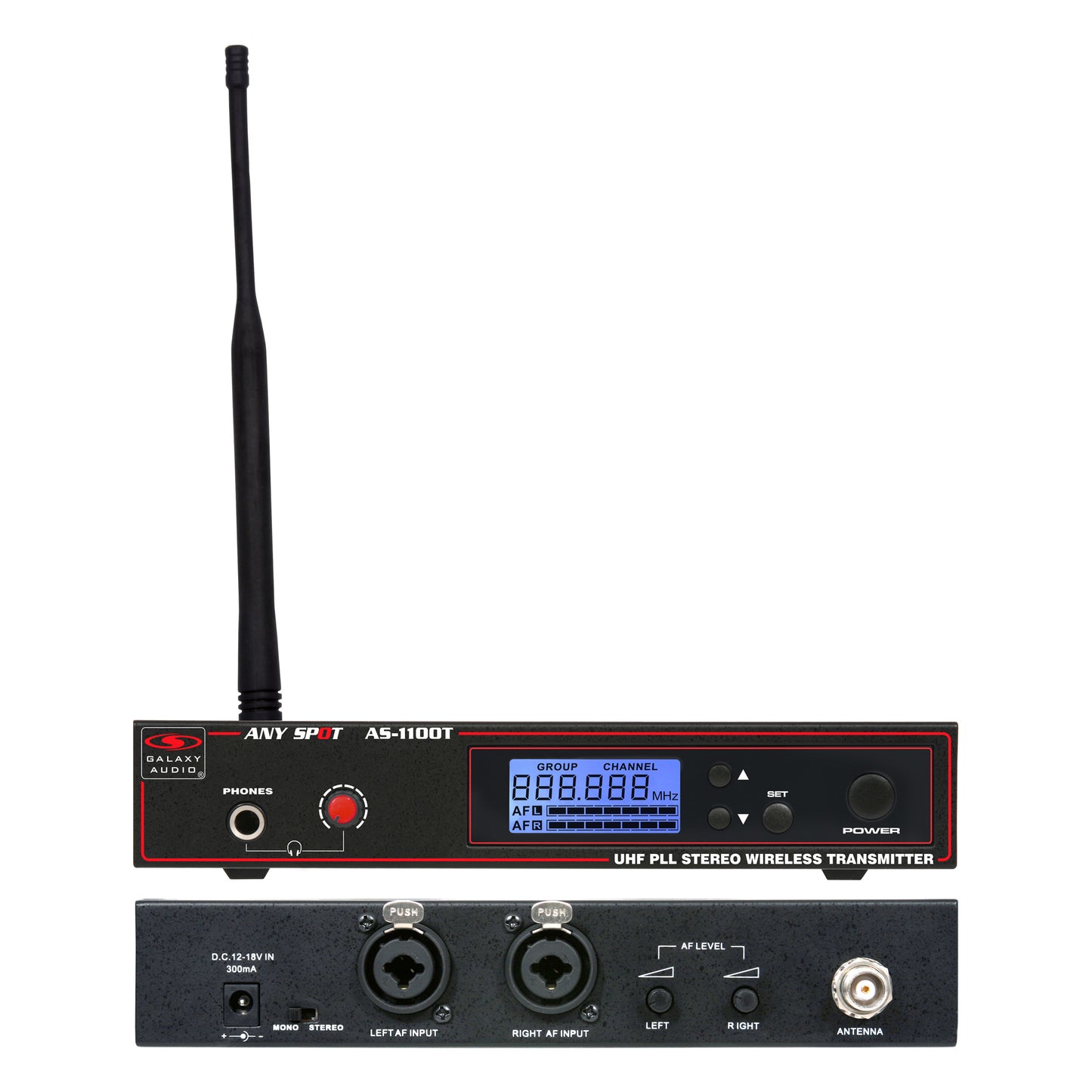

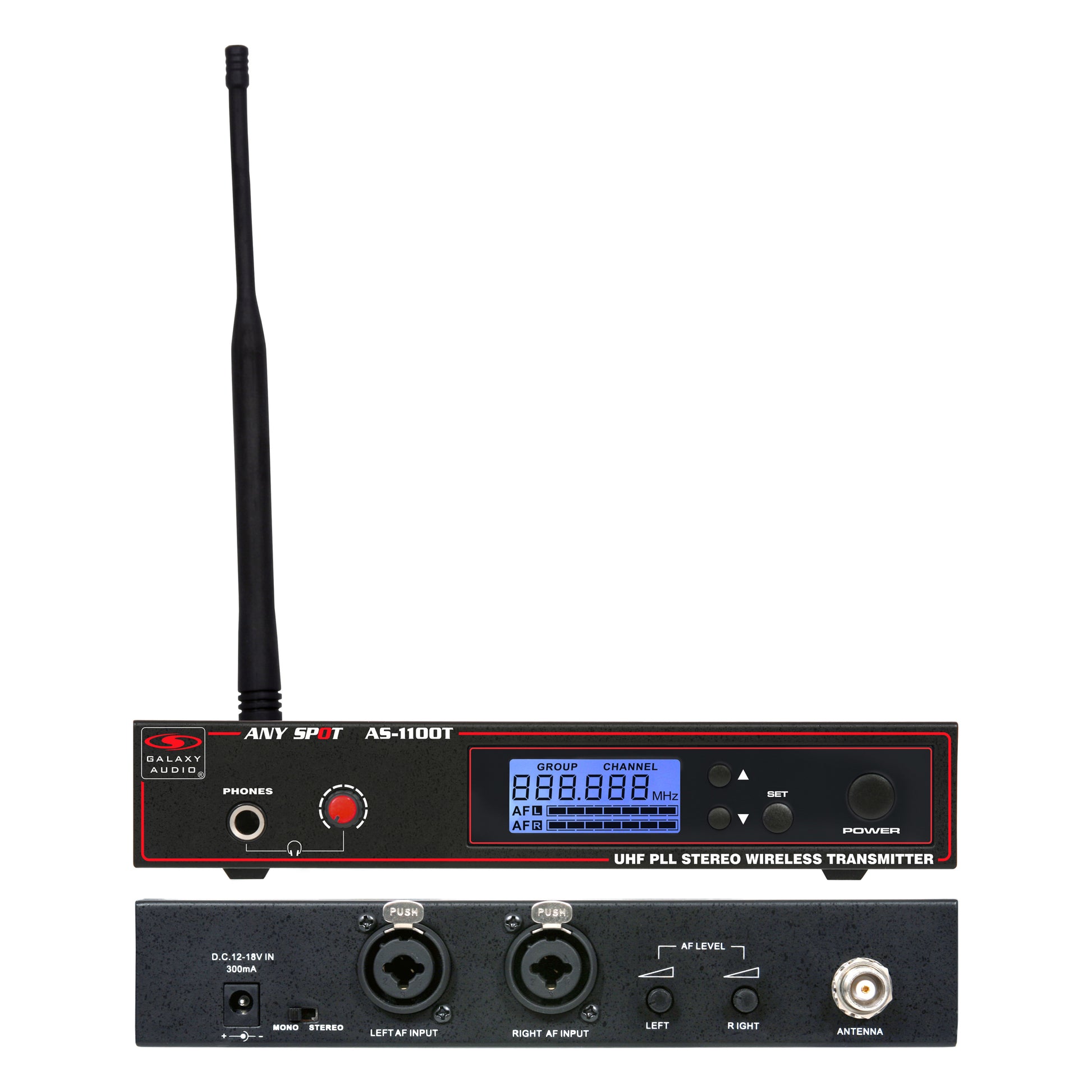

AS-1100T

  • Transmits in Stereo or Mono
  • Light Up LCD Display
  • Channel Number and Frequency
  • 120 Selectable Channels
  • XLR/¼" Combo Input
  • AF L/R Indicator
  • RF Output
  • 10 mW

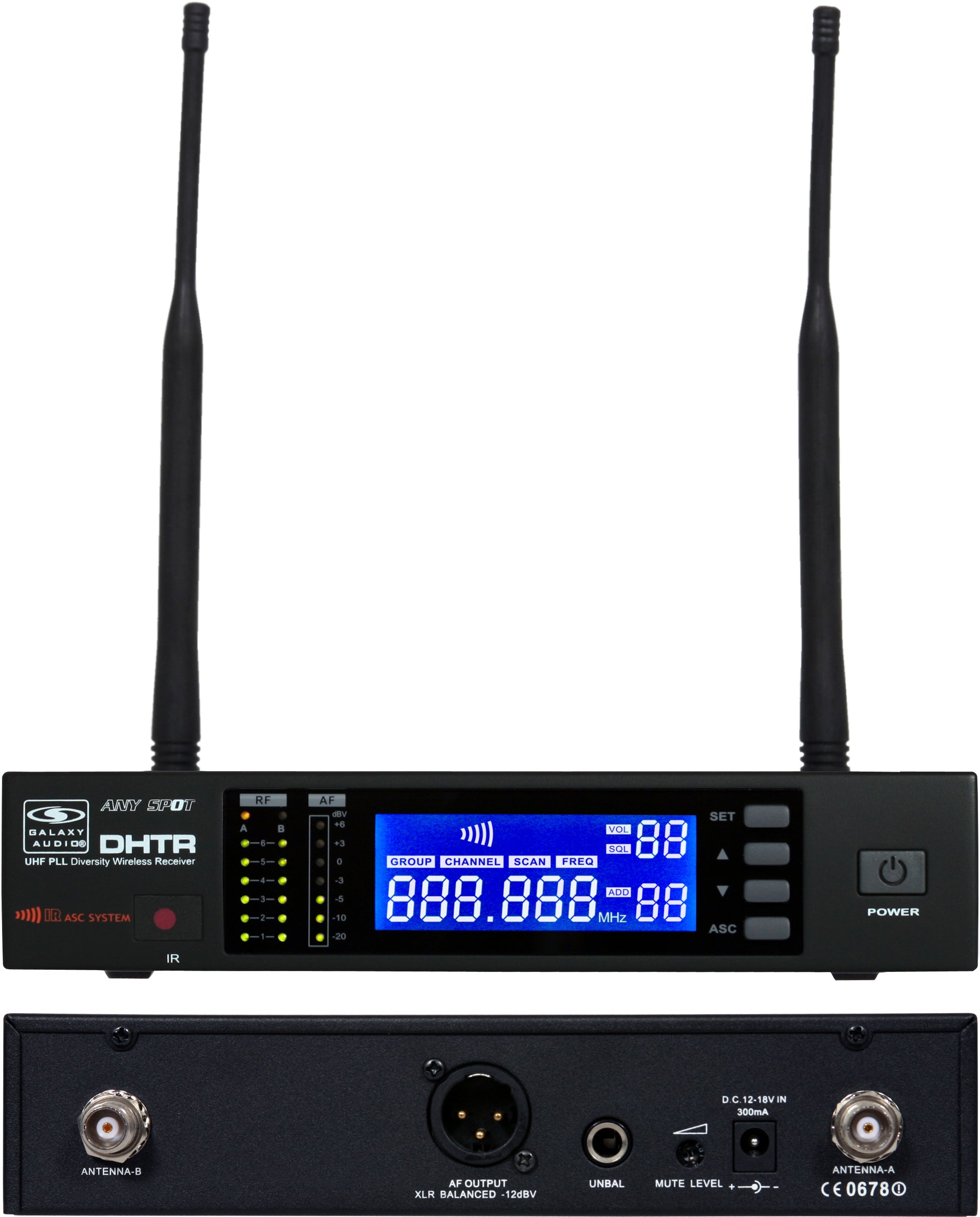

DHTR

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • XLR/¼" Output
More Information
Product Name Galaxy Audio ASWSS11T Wireless Speaker System
Brand Galaxy Audio
Condition New
MPN aswss11t
Shipping Option Free Shipping to the Continental U.S.
  • Send a wireless signal to any powered speaker
  • 120 Selectable Channels
  • Rack Mountable transmitter & receiver
  • 300' range
  • A/C operated
  • Rack Ears Included
  • XLR & 1/4" Inputs and Outputs
  • Transmit audio to a Cry Room, Outside Speakers, or Across a Sports Field
XLR input Impedance balanced
Pin1 Ground (cable shield)
Pin2 Audio
Pin3 No Audio
AS-1100T Max Audio input level +6dBV
AS-1100T Gain Adjustment Range 40dB
AS-1100T Input Impedance 100KΩ
AS-1100T Power Requirements 12-18 V dc at 300mA supplied by external power supply
AS-1100T Dimensions 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
AS-1100T Weight 21oz. (605 g)
DHTR Audio Output Level (+/-30kHz deviation, 1kHz tone) XLR connector (into 600 Ohms load) -12dBV ¼" connector (into 3kOhms)
DHTR Output Impedance XLR connector 200Ohms ¼" connector 1kOhms
DHTR Sensitivity -93dBm for 30dB SINAD, typical
DHTR Image Rejection >90dB
DHTR Power Requirements 12-18 V dc at 400mA, supplied by external power supply
DHTR Dimensions 1.7" x 8.3" x 6.3" (44mm H x 212mm W x 160mm D)
DHTR Weight 31.75oz (900 g)

Galaxy Audio ASWSS11T Wireless Speaker System

Details

AC to AC System

The AS-WSS11T will transmit an audio signal from one location to another wirelessly. Whether you need to get audio outside or to an overflow room, the AS-WSS11T can help. Both the transmitter (AS-1100T) and receiver (DHTR) are rack mountable, include rack ears, and are AC operated. This system offers 120 selectable channels.

AS-1100T

  • Transmits in Stereo or Mono
  • Light Up LCD Display
  • Channel Number and Frequency
  • 120 Selectable Channels
  • XLR/¼" Combo Input
  • AF L/R Indicator
  • RF Output
  • 10 mW

DHTR

  • Auto Scan
  • LCD Display
  • Frequency with Channel Group Selector
  • AF/RF Indicators
  • IR Sync
  • Diversity Antennas
  • Squelch Adjustment
  • XLR/¼" Output
More Information
Product Name Galaxy Audio ASWSS11T Wireless Speaker System
Brand Galaxy Audio
Condition New
MPN aswss11t
Shipping Option Free Shipping to the Continental U.S.
Features
  • Send a wireless signal to any powered speaker
  • 120 Selectable Channels
  • Rack Mountable transmitter & receiver
  • 300' range
  • A/C operated
  • Rack Ears Included
  • XLR & 1/4" Inputs and Outputs
  • Transmit audio to a Cry Room, Outside Speakers, or Across a Sports Field
Tech Specs
XLR input Impedance balanced
Pin1 Ground (cable shield)
Pin2 Audio
Pin3 No Audio
AS-1100T Max Audio input level +6dBV
AS-1100T Gain Adjustment Range 40dB
AS-1100T Input Impedance 100KΩ
AS-1100T Power Requirements 12-18 V dc at 300mA supplied by external power supply
AS-1100T Dimensions 1.5" x 8.3" x 3.78" (38mm H x 212mm W x 96mm D)
AS-1100T Weight 21oz. (605 g)
DHTR Audio Output Level (+/-30kHz deviation, 1kHz tone) XLR connector (into 600 Ohms load) -12dBV ¼" connector (into 3kOhms)
DHTR Output Impedance XLR connector 200Ohms ¼" connector 1kOhms
DHTR Sensitivity -93dBm for 30dB SINAD, typical
DHTR Image Rejection >90dB
DHTR Power Requirements 12-18 V dc at 400mA, supplied by external power supply
DHTR Dimensions 1.7" x 8.3" x 6.3" (44mm H x 212mm W x 160mm D)
DHTR Weight 31.75oz (900 g)
