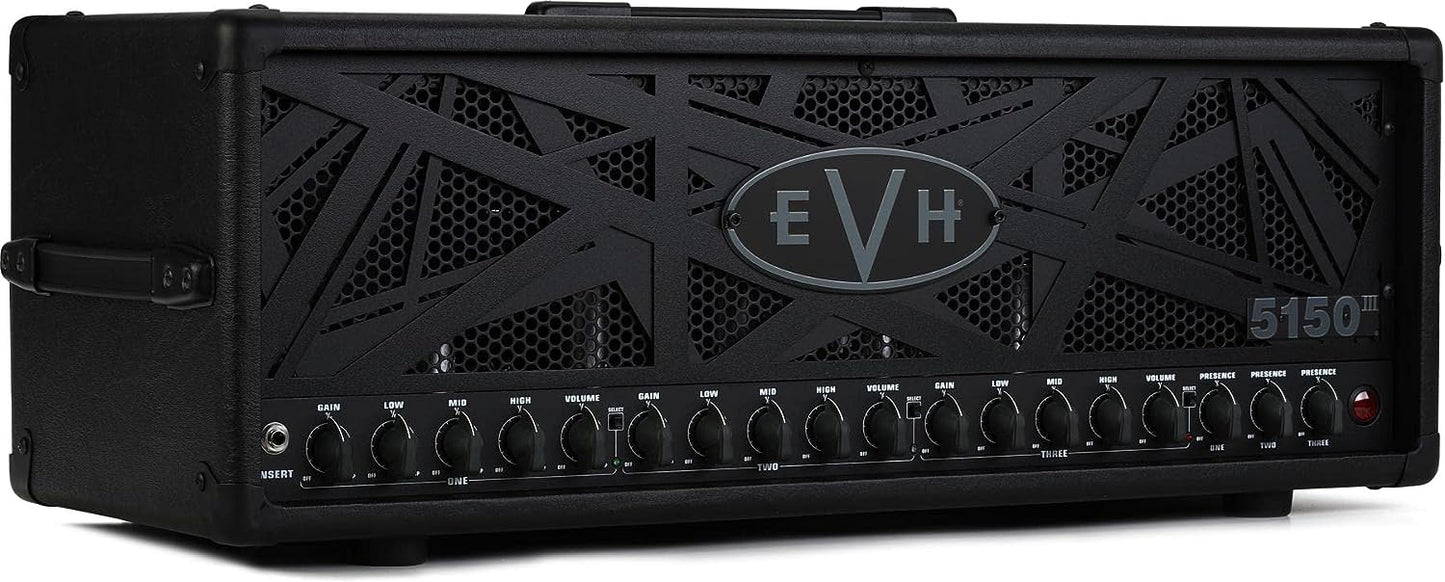

EVH 5150lll 100S Limited Edition Special Run 100 watt Head
The EVH 5150lll 100S Half Stack Limited Edition 100 watt Head is an exact replication of Eddie's head while on his latest tour. Same custom modifications and identical in every way. The 100 watt head has a single input, 3 channels (clean, crunch and lead)and channel two has increased gain for better sustain and improved low frequency definition. Each Channel comes with their own controls (volume, gain, presence, low, mid, and high) and they all have a rear panel resonance control know that can dial and fine tune that low end response you are looking for. The head uses 8 JJ ECC83 Preamp tubes, 4 Wing C 6L6 power tubes, and switchable output impedance that can be set to 4, 8 or 16 ohms.
| Product Name | EVH 5150lll 100S Limited Edition Special Run 100-Watt Head |
|---|---|
| Brand | EVH |
| Condition | New |
| MPN | 22502500000 |
| UPC | 885978474646 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Comes in a special black "Stealth" aesthetic
- 100 watts
- Single input, 3 channels (clean, crunch and lead)
- Channel two has increased gain for better sustain and improved low frequency definition
- rear panel resonance control that fine tunes the low end response.
- 8 JJ ECC83 Preamp tubes and 4 Wing C 6L6 Power tubes
- 4-Button Footswitch Included
- Chicken-Head Style Pointer Knobs
GENERAL
- Model Name: 5150III® 100S Head
- Series: 5150III®
- Amplifier Type: Tube
ELECTRONICS
- Voltage: 120V
- Wattage: 100 Watts into 4, 8, or 16 ohms (Switchable)
- Effects Loop: 1/4" - (Send/Return)
- Inputs: One - 1/4"
- Line Out: Two - (One XLR and One 1/4")
- Extension Speaker Jack: Two 1/4" Parallel
- Channels: Three - (Clean, Crunch, and Lead)
- Controls: Gain, Low, Mid, High, Volume, Channel Select, and Presence for Each Channel
HARDWARE
- Cabinet Material: Birch/Pine
- Pilot Light Jewel: Red Jewel
- Handle: Molded Plastic Strap with Nickel-Plated Caps
- Cover/Grill Cloth: Black
- Output Impedance: 4, 8 or 16 ohms (Selectable)
- Amplifier Length: 26" (66.04 cm)
- Amplifier Width: 18" (45.72 cm)
- Amplifier Height: 12.5" (31.8 cm)
- Amplifier Weight: 58 lbs. (26.3 kg)
TUBES
- Preamp Tubes: 8 x JJ ECC83
- Power Tubes: 4 x Wing C 6L6
MISCELLANEOUS
- Unique Features: Adjustable bias control, dual speaker jacks on amp rear panel, resonance control for each channel on amp rear panel, increased gain on channel two for more sustain, re-voiced channel two for improved low-mid frequency definition, increased gain on channel three for greater sustain, improved range of “low†control for channel three, special Stealth aesthetic
ACCESSORIES
- Footswitch: 4-Button Footswitch Included
- Knobs: Chicken-Head Style Pointer
- Cover: Optional Fitted Cover Available
EVH 5150lll 100S Limited Edition Special Run 100-Watt Head
EVH 5150lll 100S Limited Edition Special Run 100 watt Head
The EVH 5150lll 100S Half Stack Limited Edition 100 watt Head is an exact replication of Eddie's head while on his latest tour. Same custom modifications and identical in every way. The 100 watt head has a single input, 3 channels (clean, crunch and lead)and channel two has increased gain for better sustain and improved low frequency definition. Each Channel comes with their own controls (volume, gain, presence, low, mid, and high) and they all have a rear panel resonance control know that can dial and fine tune that low end response you are looking for. The head uses 8 JJ ECC83 Preamp tubes, 4 Wing C 6L6 power tubes, and switchable output impedance that can be set to 4, 8 or 16 ohms.
| Product Name | EVH 5150lll 100S Limited Edition Special Run 100-Watt Head |
|---|---|
| Brand | EVH |
| Condition | New |
| MPN | 22502500000 |
| UPC | 885978474646 |
| Shipping Option | Free Shipping to the Continental U.S. |
- Comes in a special black "Stealth" aesthetic
- 100 watts
- Single input, 3 channels (clean, crunch and lead)
- Channel two has increased gain for better sustain and improved low frequency definition
- rear panel resonance control that fine tunes the low end response.
- 8 JJ ECC83 Preamp tubes and 4 Wing C 6L6 Power tubes
- 4-Button Footswitch Included
- Chicken-Head Style Pointer Knobs
GENERAL
- Model Name: 5150III® 100S Head
- Series: 5150III®
- Amplifier Type: Tube
ELECTRONICS
- Voltage: 120V
- Wattage: 100 Watts into 4, 8, or 16 ohms (Switchable)
- Effects Loop: 1/4" - (Send/Return)
- Inputs: One - 1/4"
- Line Out: Two - (One XLR and One 1/4")
- Extension Speaker Jack: Two 1/4" Parallel
- Channels: Three - (Clean, Crunch, and Lead)
- Controls: Gain, Low, Mid, High, Volume, Channel Select, and Presence for Each Channel
HARDWARE
- Cabinet Material: Birch/Pine
- Pilot Light Jewel: Red Jewel
- Handle: Molded Plastic Strap with Nickel-Plated Caps
- Cover/Grill Cloth: Black
- Output Impedance: 4, 8 or 16 ohms (Selectable)
- Amplifier Length: 26" (66.04 cm)
- Amplifier Width: 18" (45.72 cm)
- Amplifier Height: 12.5" (31.8 cm)
- Amplifier Weight: 58 lbs. (26.3 kg)
TUBES
- Preamp Tubes: 8 x JJ ECC83
- Power Tubes: 4 x Wing C 6L6
MISCELLANEOUS
- Unique Features: Adjustable bias control, dual speaker jacks on amp rear panel, resonance control for each channel on amp rear panel, increased gain on channel two for more sustain, re-voiced channel two for improved low-mid frequency definition, increased gain on channel three for greater sustain, improved range of “low†control for channel three, special Stealth aesthetic
ACCESSORIES
- Footswitch: 4-Button Footswitch Included
- Knobs: Chicken-Head Style Pointer
- Cover: Optional Fitted Cover Available
